Description

Details

Basic Info.

Model NO.:WCL-R-395

Type:Car Seat for The Disabled

Condition:New

Loading:120kg

Turning Angle:0-120

Own Weight:85kg

Volt:12V

Operation:Remote Control

Export Markets:Global

Additional Info.

Trademark:xinder

Packing:Carton Case or Wooden

Standard:85kg

Origin:China

HS Code:870899999

Production Capacity:500

Product Description

A. INTRODUCTION

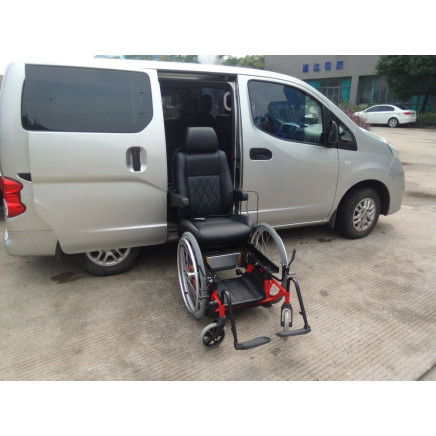

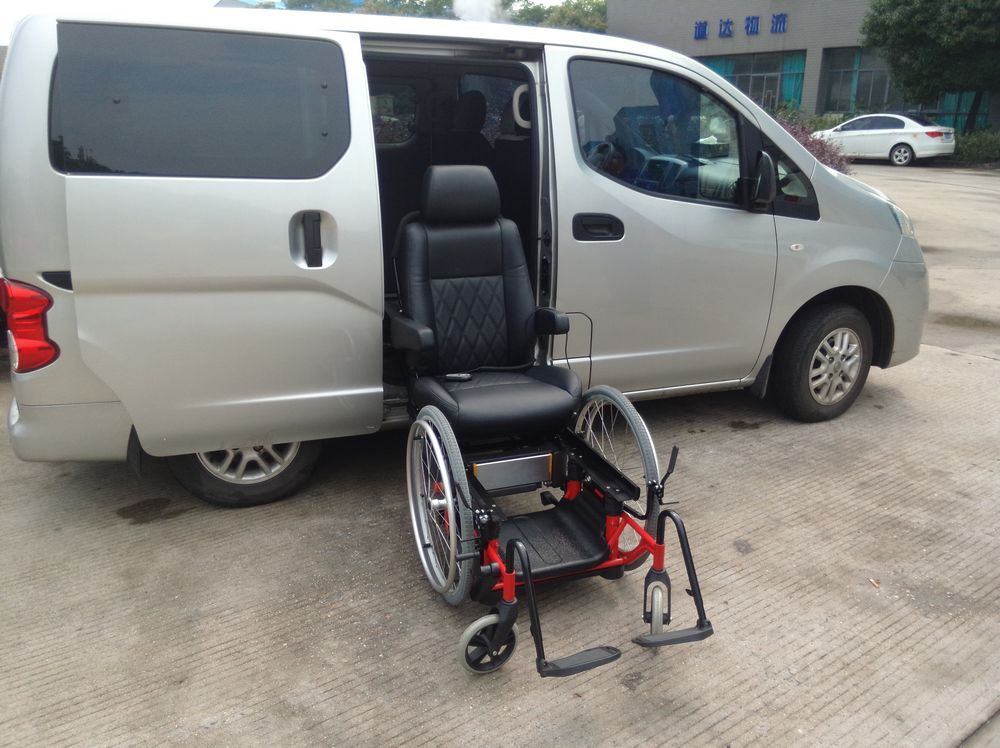

WCL turning seat & wheelchair is to bring easy entrance to people with reduced or limited mobility. It can be applied on vans, buses, taxi, ambulance, SUV and etc. You may operate it by remote control and stop it on any position as you desired.
Its load capacity reaches 120kg. This seat works stably, reliably and safely, so you can enjoy the convenience it may bring to you regardless of it safety.
The seat can be removed to wheelchair after it lowered, so that the passenger can go out on that chair.

B. ADVANTAGES
Realizing easy entrance of cars, buses, taxi, ambulance and etc.
Easy operation by driver or user and reliable function;
Water-proof connectors;
warning sound during working;
Working noise < 70dB;
Every turning seat with serial NO. for easy after-sales track and service
anti-skip seat step
warning sound during seat working;
During seat working, if any barrier, press any key to stop the working; then press key again to start working again;
with high sensibility to ensure your safety

C. SPECIFICATIONS

Model	WCL-395	WCL-300		WCL-250
Dimension	685935350mm	580500350mm		580500350mm
Lifting Height	395mm	300mm		250mm
Overall Length (fully extended)	1465mm	1190mm		1190mm
Base Thickness	170mm
Drive Mode	electric
Operation	Handheld remote control
Max operating Current	12A
Rated Voltage	12V
Own Weight	80kg		75kg	75kg
Load Capacity	120kg
Test Load Weight	150kg
Working Noise	<70dB
Rotate Angle	0~113°
Safe Grade	IP67

APPLICATION
MPV, van, minivan, SUV; camping cars
Handicapped car;
Ambulance;
Installed vehicle models:Nissan NV200, Honda Elsion, Toyota ALPHARD, Toyota Sienna, Benz Sprinter, Benz Viano, 2012 Honda Odyssey(7 seats), Toyota Previa, Shanghai Huizhong (12 seats)
