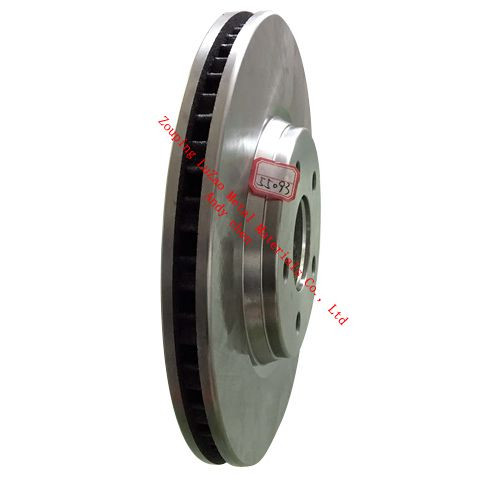

Ts16949 Certificate Approved Brake Disc, Brake Parts of 55093 (25797350)

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

Ts16949 Certificate Approved Brake Disc, Brake Parts of 55093 (25797350)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$8.0 - $40.0 / Piece

Min. Order (Pieces)	Unit Price
100.0	US $ 8/ Piece
200.0	US $ 40/ Piece

Trade Terms: FOB

Payment Terms: L/C, T/T

Price Valid Time:From Jun 26, 2015 To Jul 12, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:55093(25797350)

Type:Brake Discs

Material:Iron

Position:Front

Certification:ISO/TS16949, TS16949

Classification:Disc

Drum Brakes Classification:Brake Drum

Main Market:Global

Size:296mm*43mm

Hardness:170~210

Total Carbon:3.0%~3.3%

Silicon:1.9%~2.2%

Manganese:0.7%~1.2%

Phosphorus:0.12%Max

Sulfur:0.12%Max

Export Markets:Global

Additional Info.

Trademark:Luzao

Packing:Neutral or Color, as Customer?s Request

Standard:ISO/TS16949 Certificate

Origin:Zouping, Shandong

HS Code:87083099

Production Capacity:100000 Pieces Per Month

Product Description

Position: Front Wheel

Height:43mm

Outer Diameter: 296mm

Pitch circle diameter: 110mm

Brake disc thickness:26mm

Minimum thickness: 23mm

Number of holes: 5

Solid or vented: V

Packing: Neutral or Color, as customer's request
Delivery Detail: 20-30 days after order
Certificate TS 16949/ISO
Brake disc Specifications:
1) Material: Gray iron HT250/G3000
2) Long service life & stable performance
3) 100% crucial dimension inspection and Balancing
4) 100% qualification
5) Low noise standard for casting is HT250, Standard for machining is SAE-j431.
