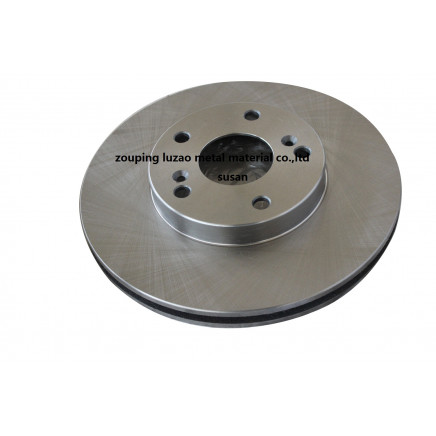

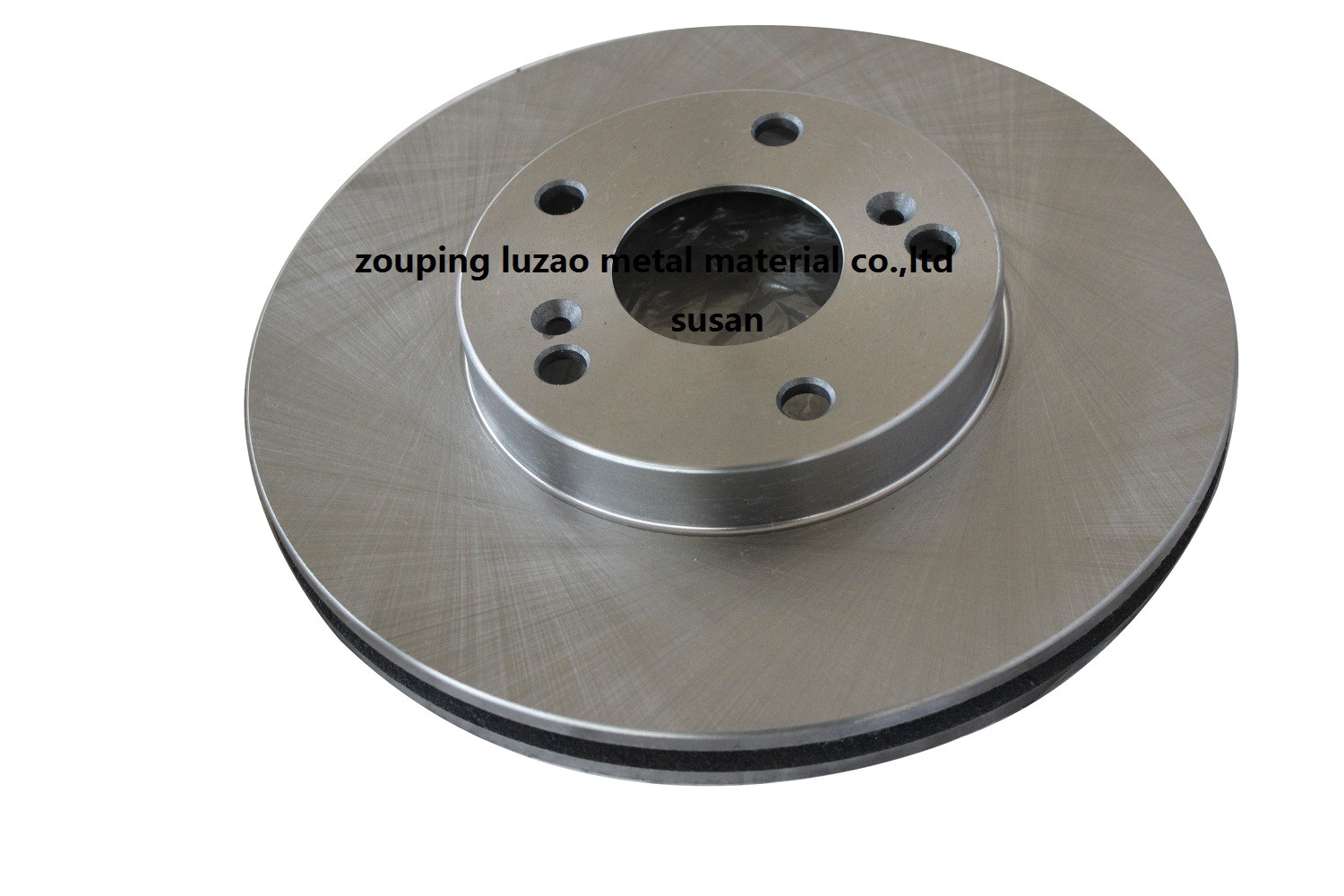

Trust Brake Disc, Brake Disc Rotor (31257/45251-S87-A00)

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

Trust Brake Disc, Brake Disc Rotor (31257/45251-S87-A00)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$7.77 - $41.29 / Piece

Min. Order (Pieces)	Unit Price
100.0	US $ 7.77/ Piece
200.0	US $ 41.29/ Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Apr 25, 2015 To Jun 26, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:31257/45251-S87-A00

Type:Brake Discs

Material:Iron

Position:Front

Certification:ISO/TS16949, TS16949, ISO9001

Classification:Disc

Drum Brakes Classification:Brake Drum

Main Market:Global

Height:47mm

Outer Diameter:282mm

Number of Holes:5

Weight:Standard

100% Balance:100% Measurement

Vented or Solid:V

Pitch Circle Diamter:114.3mm

Center Diameter:64mm

Brake Thickness:23mm

Minimum Thickness:21mm

Export Markets:Global

Additional Info.

Trademark:luzao

Packing:Neutral Packing or According to The Requirements

Standard:ISO TS SGS

Origin:Shandong Zouping

HS Code:87083099

Production Capacity:100, 000pieces/Month

Product Description

A) Product Information:

Outer Diameter: 282 mm

Centre Diameter: 64mm

Overall Height: 47mm

Nominal Thickness: 23MM

Discard Thickness: 21MM

Solid or vented: V

B) The Technical Index:

1. Chemical Element Contents

Standard	C	Si	Mn	P	S	C. E
G3000	3.1~3.4	1.9~2.3	0.6~0.9	? 0.15	? 0.15	3.90~4.15

2. Mechanical Properties

1) Tensile: ? 210 MPa

2) Hardness: 160~241 HBS

3. Microstructure

Main Graphite Type: A, Grade: 3~5.

Pearlite: ?95% Ferrite: <5%

C) Specifications

1. Material Standard: HT-250=ASTM-G3000=GG25

2.100% balance

3.100% measurement

4. Noiseless

Advantages	Others
A) ISO/TS 16949 certificate B) The most items C) Quick Delivery Shipment D) Dynamic Balance E) Factory Supply	A) Delivery Time: 20-30 days B) Payment Terms: L/C, T/T C) Package: Neutral or Color, as customer's request D) Port: Qing dao E) MOQ: 100PCS

F) If you are interested in, pls feel free to contact me, tel: 0086-543-4347957
