(True) High Quality Universal GPS Navigation with ISDB-T

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:10 Pieces

Trade Terms:FOB, EXW

Payment Terms:Paypal, Western Union

Trademark:Lsailt

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:LLT-TYS8002HD

Type:GPS Navigator

Use:Automotive

Operating Principle:Interferometric Type

Port Number:Multiplex Multi-purpose Channel

Model:Integration Type

Screen Size:Without Screen

Carrier Frequency:Dual-Frequency

Chip:SiRF

Brand:Lsailt

Certification:ISO/TS16949

CPU:800MHz

RAM:256MB

Flash:128MB(Can Expand to 8GB)

Navigation Storage:SD Card

OS:Wince6.0 Core

Video Playing:MP5/MPEG/Mpg/Asf/WMV/MOV etc.

Audio Playing:MP3/PCM/WMA etc.

Dual Video Display:RGB

VGA:800X480/480X234

Export Markets:Global

Additional Info.

Trademark:Lsailt

Packing:Standard Export Box

Standard:CE, SGS

Origin:Shen Zhen, Guang Dong

Production Capacity:50000/Year

Product Description

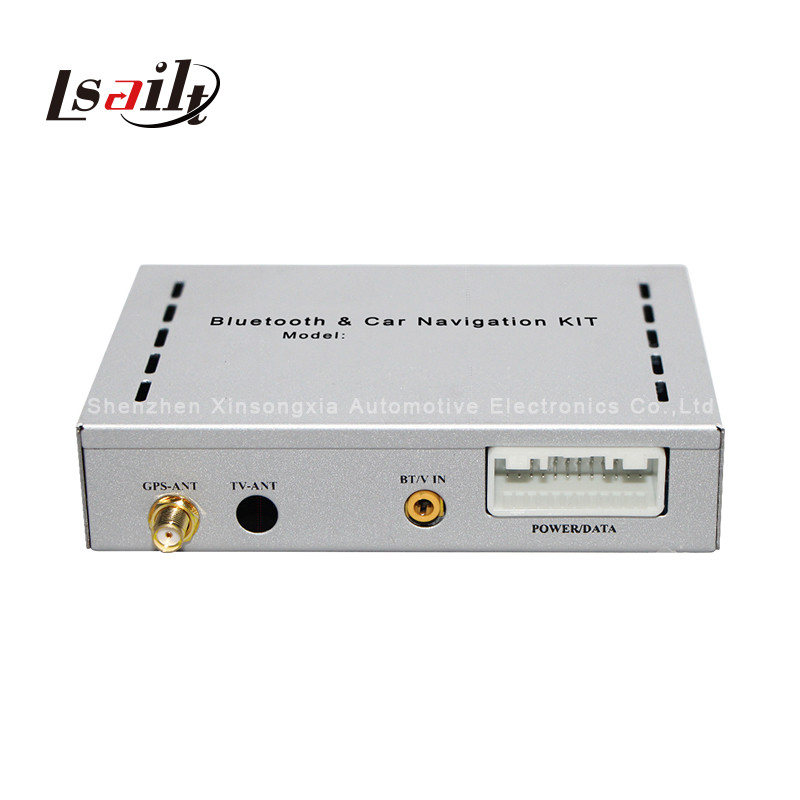

Navigation box and ISDB-T

Brand: Lsailt

Installation advantages

1) Nondestructive installation design, which does not damage to the wires of original car; Special interface cable, plug-up installation without wire cut;

2) Choose installation functions freely(Bluetooth optional);

3) Technology is reliable, take the original agreement;

4) After the upgrade, it still retains all the functions of the original host, even if navigation goes wrong, does not affect the function of the use of the original car;

5) After-sales service is convenient, replace the adapter module directly, compare with special machine, it's simple, less risk, safety and reliable

6) Choose beautiful interface by yourself;

7) Achieve handwritten navigation, and control the navigation by touching it. Compare with the original navigation module, it's more convenient and flexible.

Product accessories

Mainframe	1(standard configuration)
Special cables	1(standard configuration)
GPS Antenna	1(standard configuration)
TV Antenna	1(standard configuration)
Specification	1(standard configuration)
Warranty Card	1(standard configuration)
Certificate	1(standard configuration)
MIC	1(optional configuration)
SPK	1(optional configuration)
Map card	1(optional configuration)
Mute Special cables	1(optional configuration)

Product parameter(Navi box)

CPU	800MHZ
MODEL	MSB2531
RAM	256MB
FLASH	128MB(can expand to 8GB)
Navigation storage:	SD card
OS	WINCE6.0 CORE
Video playing	Mp5/mpeg/mpg/asf/wmv/mov etc.
Audio playing	MP3/PCM/WMA etc.
Dual video display	RGB
Video out voltage:	1.0Vpp/75?
VGA	800X480/480X234
Sound out	Dual channel CD stereo sound
Operating temperature:	~ 40 蚓 to +85 蚓
Storage temperature:	~ 40 蚓 to +100 蚓
Working voltage:	DC 9-16V
Track sensitivity:	~ 161dBm
Positioning accuracy:	10m, 2D RMS , 5m, 2D RMS, WAAS enable
GPS Antenna type:	External active ceramic antenna
Product features(ISDB-T)
ISDB-T Digital TV receiver
Reception frequency :	170MHZ ~ 950MHZ
Working speed:	140-190KM/H
Operation:	All touch control
Video:	Video output(CoMposite video CVBS)
Audio:	Audio output(Double track stereo output)
Working voltage:	DC( 8---16)V
Search :	Support autoMatic search, Manual search, fast search function
Format :	Support EPG
Reception sensitivity :	~ 95dB ~ 100dB
Input iMpedance :	50?
Car DC:	12V-1A
Resolution forMats :	320*240
display forMat :	16 : 9/4 : 3
language :	ISDB-T ( Portuguese and English )
Areas:	suitable for use South AMerica All countries

Statement: All brands on this website are belong to original company, if do not want to use this website, please note in time and delete.
