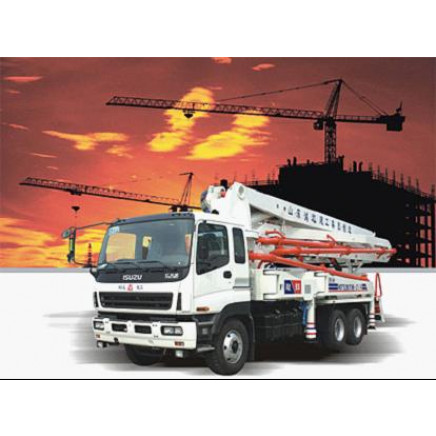

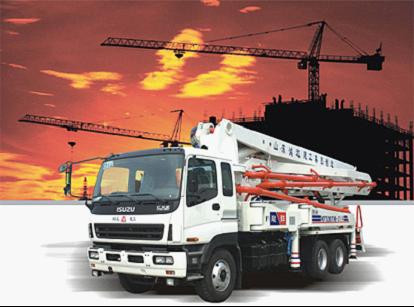

Truck-Mounted Concrete Pump

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 300000.0-400000.0/

Price:$300000.0 - $400000.0 / Unit

Trademark: HONGDA

Packing: Nude Packing

Standard: Euroiii

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:HDT5281THB-37/4

Fuel:Diesel

Type:Pump Truck

Export Markets:South America, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia

Additional Info.

Trademark:HONGDA

Packing:Nude Packing

Standard:Euroiii

Origin:China(Mainland)

HS Code:8701200000

Production Capacity:60000PCS/Year

Product Description

Name Unit Parameters
HDT5281THB-37/4 HDT5291THB-37/4
Main Technical Parameters In Service Output in theory m3/h 125 125
Pumping capacity index Mpa. M3/h 586 586
Max. Pumping pressure Mpa 8.5 8.5
Max. Distributing radius m 32.6 32.6
Max. Distributing height m 36.6 36.6
Max. Distributing depth m 25.5 25.5
Height of boom when stretched mm 8450 8450

Distance between front landing legs mm 7058 7058
Distance between rear landing legs mm 6848 6848
Distance between front & rear landing legs mm 6790 6790
Diameter of delivery pipe mm 125 125
Rotary angle of each boom section ° 92/180/180/270 92/180/180/270
Close-control distance m 33 33
Remote-control distance m 200 200
Main Technical Parameters in Driving Condition Max. Traveling speed km/h 85 90
Min. Turning radius mm 8800 8800
Brake distance m 7 7
Approach angle ° 16 16
Departure angle ° 11 11

Wheel base between the first & the second axle mm 4595 4600
Wheel base between the second & the third axle mm 1310 1350
Front tread mm 2065 2022
Rear tread mm 1850 1830
Max. Engine power kw 265(1800r/min) 247(2200r/min)
Max. Engine torque n. M 1422(1100r/min) 1350(1100-1600r/min)
Max. Grade ability % 37 35
Fuel consumption L/100km 36.6 34
Overall dimension(L× W× H) mm 12000× 2490× 3800 12000× 2490× 3850
Total weight kg 28000 29000
