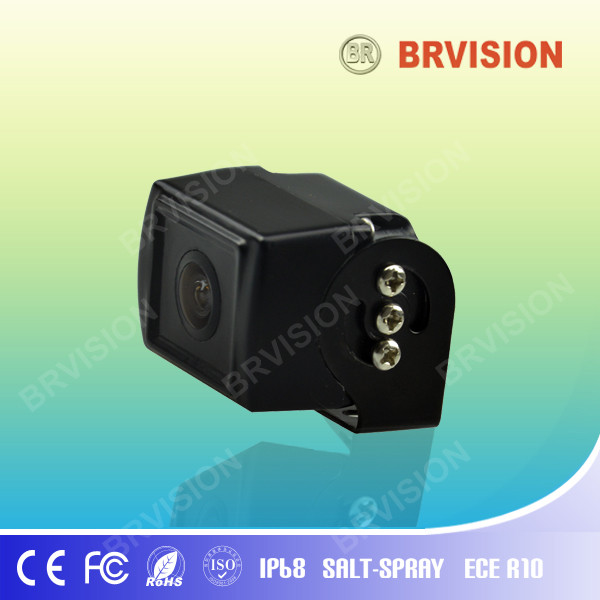

Truck Backup Camera, CCD Camera for Reversing System

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, EXW

Payment Terms:T/T

Trademark:BR VISION

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:rvc006

Shell Material:Alloy

Probe Number:2

Display Type:Without Screen

Interface:RCA

Function:Night Vision

Definition:420TVL

Chip:CCD

Waterproof Grade:IP68

Alarming Distance:2.5-0.35m

Probe Diameter:18.8mm

Lens Angle:120degree

Export Markets:Global

Additional Info.

Trademark:BR VISION

Packing:Neutral Package

Standard:CE, FCC, Rohs

Origin:China

Production Capacity:50000PCS/Years

Product Description

Truck Backup Camera, CCD Camera for Reversing System

Truck Backup Camera Specs:

1.Type High resolution backup camera
2.Image Sensor 1/4" CCD
3.TV System NTSC/PAL Optional
4.Effective Pixels N: 510x492 pixels P: 500x582 pixels
5.Horizontal Resolution 420 TV Line
6.Lens Angle 120°
7.Minimum Illumination 0Lux (LED ON)
8.Audio function
9.Operating Temperature -20°~+70° RH95% Max
10.Lens f=12.8mm
11.Power Supply DC12V
12.N.W 350g
13.Waterproof Rate IP68
14.Shell Material Aluminium alloy

Imge sensor	1/4"CCD
Resolution	420 tvline
Lens angle	120 degree
IP Rating	IP68grade
Power	DC12V
Packing	Neural package
Operation temp.	-20~70 degree
