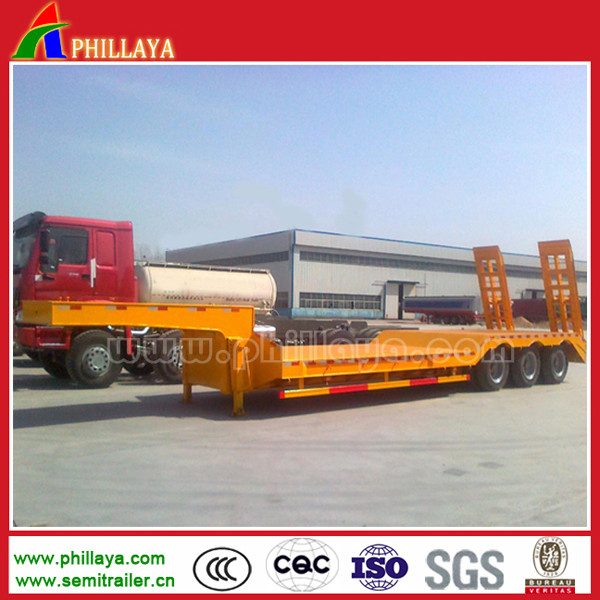

Tri-Axle Engineering Machinery Transport Low Bed Semi Trailer

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

Tri-Axle Engineering Machinery Transport Low Bed Semi Trailer

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$11000.0 - $17000.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 17000/ Piece
5.0	US $ 11000/ Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Aug 05, 2015 To Oct 14, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:Phillaya9003DPB

Type:Semi-Trailer

Load Capacity:40t - 100t

Certification:ISO9001, CCC, ISO/TS16949, SGS, BV CQC

Wheel Base:1310 Mm

Tread:1820mm

Grade:Medium Duty

Towing Pin Material:Carbon Steel

Impeller Type:None

Hook Type:None

Universal Joint Type:None

Brake Pad Material:Semimetal

Towing Pin Type:Mushroom Type

Towing Pin Diameter:2" and 3.5" for Options

Differential Gear Type:None

Independent Suspension Type:Mechanical Independent Suspension System

Connecting Type:Semi-trailer

Shape:Low Bed with Goose-Neck

Axle Number:3

Tire Number:12

Self-dumping:Not Self-dumping

ABS Anti-lock Braking System:ABS Optional

Material:Steel

Condition:New

Stringer:2 Stringers of Manganese Steel in H Shape

Technology with Stringer Forming:Automatic Submerged Arc Welding

Shipping Terms:by Bulk Cargo Ship / RO-RO/ 40 Hq Container

Guarantee Terms:Life-Long Quality Guarantee, 1 Year?s Free-Pairing

Rim Model:8.0-20 (or 9.0-22.5 or as Needed)

Tire Model:11.00 R 20 (or 12.00 R 22.5 or 315/80 R 22.5)

King Pin:Size of 2" or 3.5", Changeable Type

Color:as Needed

Rust Prevention:Sand Blasting, 1 Layer of Prime, 2 Layers of Paint

Customizing:Accepted

Export Markets:South America, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia

Additional Info.

Trademark:Phillaya

Packing:N/M

Standard:as needed

Origin:China

HS Code:87163990

Production Capacity:200 Units Per Month

Product Description

Qingdao Phillaya International Trading Co., Ltd. is a comprehensive corporation majored in the Technology R & D, Import & Export of kingds of semi trailers like container semi trailers, flat bed semi trailers, side wall semi trailers, store house bar semi trailers, van type semi trailers, low bed semi trailers & kinds of tank semi trailers like fuel tank semi trailers, LPG semi trailers, LNG semi trailers, chemical liquid tank semi trailers, bulk cement semi trailers, asphalt tank semi trailer etc. of which tank bodys are made of carbon steel, aluminum alloy, or stainless steel.
We have two factories, your enquiry and visiting will always be welcome warmly. Our concept is to promise you better quality at competetive prices with best service all the time.

Low bed semi-trailer series
Dimension	13000-16500mm2500-3500mm1650mm (Size can be customized)
Loading Capacity (T)	40T-100T
Axle	13T/16T/20T, FUWA brand (BPW brand or China brand for options)
Rim	6.5-20/7.5-20/8.00-20, Special for foreign market or as needed
Tire	8.25R20/10.00R20/11.00R20 or as needed
Suspension	Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand ), Special for foreign market
Spring leaf	90mm13mm10 or 100mm12mm12
King pin	JOST brand 2.0 or 3.5 inches, bolts type or welding type
Landing gear	JOST/FUWA/YAHUA brand D200T or China brand 28Tons (Double speed)
Stringer	Height: 450mm-520mm, upper plate is 14mm-25mm in thickness, middle plate is 8mm-12mm down plate is 16mm-25mm ; Material is Q345B Steel (also called as manganese steel)
Side beam	16mm -30mm channel steel (material is Q235 steel)
Car floor	3-6mm thick diamond steel plate
Ramp	Manual or Hydraulic type
Goose-neck	As needed
Braking chamber	WABCO RE 6 relay valve; T30/30+T30 Spring braking chambers (TKL brand); one piece of 45L air tanks
ABS	Optional
Twist Locks	Four ,Eight or Twelve pieces for options(Lifting type or Twist Screw Type)
Valve	WABCO valve
Light	LED light by international or European standards (Special for foreign market)
Voltage	24V
Receptacle	7 ways (7 wire harness)
Tool box	One piece with a set of standard tools for the trailer, by factory or as needed
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Side guard	According to customer's requirement or by factory

Buying Guides
1	You send us your enquiry
2	We shall reply you with the quotation within 12 hours
3	We negotiate on the configuration that you need
4	Confirmation of the tech data ? sign contract (P/I) ? 30% deposit (or L/C issuing)? production
5	Manufacturing process updated news ? completing production
6	Balance payment ? ex works ? shipment ? custom clearance ? A/S service for 1 year

Why to cooperate with Phillaya

Ø Price - competitive price (we are manufacturer ourselves)
Ø Quality - reliable with guarantee period of 1 year long (we have over 15 years' manufacturing experience)
Ø Delivery - timely for sure (experienced engineer and workers under efficient management, with advanced equipment and technology)
Ø Service - prompt reply, efficient communication by phone/email/app online. There are always perfect solutions to problems that you can come up with.
