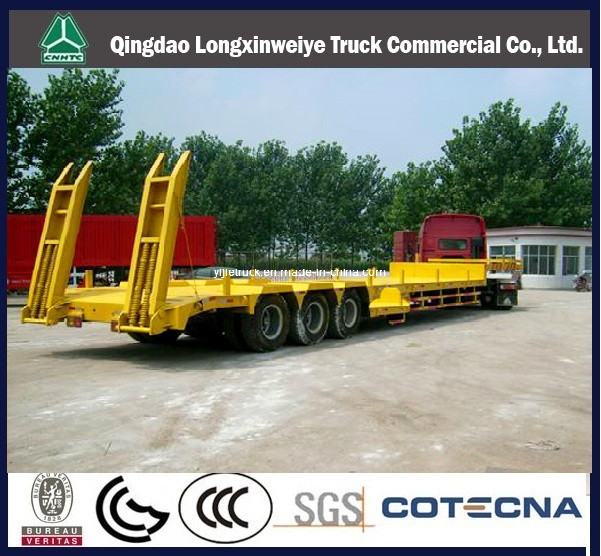

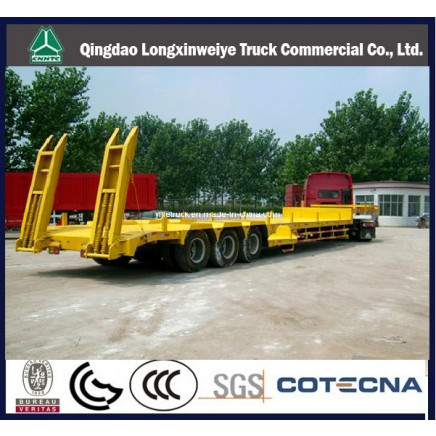

Tri-Axle 30-80ton Low Bed Trailer for Excavator Transportation

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Set)	Unit Price
1.0	US $ 10800.0-21800.0/

Price:$10800.0 - $21800.0 / Set

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Dec 19, 2014 To Mar 19, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CQS9390TDP

Type:Axle

Towing Pin Material:Carbon Steel

Impeller Type:Front Semi-open Type

Hook Type:Double

Universal Joint Type:Rigid Universal Joint

Brake Pad Material:Semimetal

Towing Pin Type:Mushroom Type

Towing Pin Diameter:50mm

Differential Gear Type:Anti-slip Type

Independent Suspension Type:Trailing Arm Type

Export Markets:Global

Additional Info.

Trademark:CIMC

Packing:Nude Packing

Standard:Europe standard

Origin:Shandong China

Production Capacity:30000 Sets/Year

Product Description

Tri-Axle 30-80ton Low Bed Trailer for Excavator Transportation

Information:
1. Components: Chassis, suspension, tyre and wheel, landing gear.
2. Payload: 20ton, 30ton, 40ton, 60ton, 100ton.
3. MOQ: 1 units.
4. Lead time: In stock or 30 days production
5. Payment terms: T/T or L/C at sight
6. Production ability: 60 sets per month
7. Quality level: Excellent quality for international market, made in China
8. Certificate: ISO9001; TS16949; CIQ; BV; C/O; FORM E.
9. Area suitable: America, Europe, Asia

Model	Outside Dimension		No. of Axle	Tire size	Tare Weight	Rated Load
	(L× W× H)(mm)				(kg)	(kg)
CQS9390TDP	13000, 12500X3000, 2800X3150, 1710		3	11.00R20 /12R22.5	8500	60000
Brand Name		CIMC Brand Tri-Axle Low Bed Trailer for Excavator Transportation 30-80ton
Manufacture		Liangshan CIMC dongyue special Co., Ltd
Main Frame		Q345B manganese plates, automatic submerged arc welded
Floor		Steel Sheet 3mm thickness or diamond plate
		(Also can choose other thickness, such as 2mm, 2.3mm, 4mm, 5mm, 6mm)
Axle		Brand: FUWA(BPW optional)
Suspension		Independent stamping steel rigid suspension( air suspension)
King Pin		2" or 3.5" traction pin made in China( Jost optional)
Landing Gear		chinese brand loading 28000kg (JOST optional)
Spare Wheel Carrier		One set of spare wheel carrier including a riser.
Braking System		Kemi or other Brand of China; ABS (optional )
Brake Air Chamber		Four double and two single chamber
Electrical System		1. Voltage: 24v 2. Receptacle: 7 ways(7 wire harness)
Painting		Sand blasting processing clean rust
		1 coat of anticorrosive primer
		2 coats of finish urethane paint
		Color as customer choice
Accessory		One tooling box with a set of standard trailer tool
