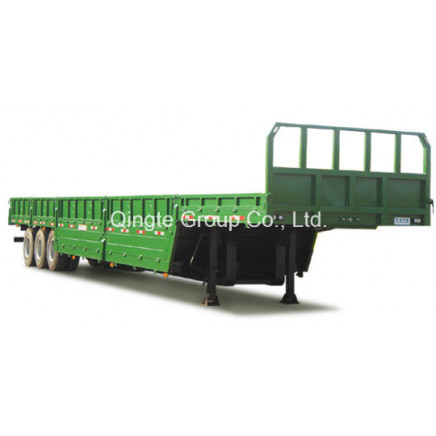

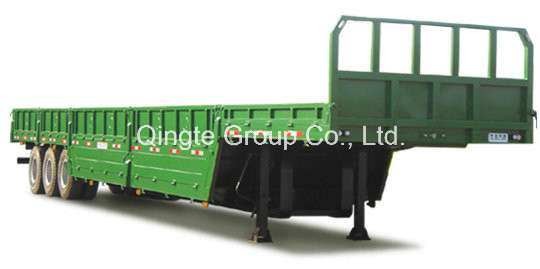

Transportation Semi-Trailer, with Barrier, 3 Axles (QDT9401)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 20000/ Piece

Price:US $20000.0 / Piece

Trade Terms: FOB, CFR, CIF, DAT, FAS, DDP, FCA, EXW

Payment Terms: L/C, T/T

Price Valid Time:From Jan 30, 2015 To Apr 05, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:QDT9401(12976x2500x2730)

Type:Semi-Trailer

Towing Pin Material:Alloy Steel

Impeller Type:Front Semi-open Type

Hook Type:Single

Universal Joint Type:Flexible Universal Joint

Brake Pad Material:Less Metal

Towing Pin Type:Mushroom Type

Towing Pin Diameter:90mm

Differential Gear Type:Gear Type

Independent Suspension Type:Trailing Arm Type

Material:Steel

Scale:Heavy Duty

Certification:CE

Components:Trailer Axles

Load Capacity:50t

Tare Weight (Kg):8000

Loading Capacity (Kg):31500

Gross Weight (Kg):39500

Dimension (Mm):12976X2500X2730

Inner Board Size(Mm):12785X2339X600

Export Markets:Global

Additional Info.

Trademark:Qingte

Packing:Nude Packing

Standard:SGS, CE

Origin:Qingdao, Shandong, China

HS Code:8716

Production Capacity:20000/Year

Product Description

Model: QDT9401

Tare Weight (kg): 8000

Loading Capacity (kg): 31500

Gross Weight (kg): 39500

Dimension (mm): 12976x2500x2730

Inner Board Size(mm): 12785x2339x600

Wheel Track (mm): 6540+1320+1320

Overhang(Front/Rear) (mm): -/2286

Wheel Specification: 11.00-20, 11.00R20,

12.00-20, 12.00R20

Wheel Track (mm): 1820/1820/1820

Approach Angle/Departure Angle (° ): 13

Plate Spring Quantity: -/7/7/7

1, Configuration of high quality
We use accessories of high quality to ensure a good performance. BPW, SAF, YUEK, JOST, WEBCO are optional. Sixteen wheels, short axles, three-line six-axles, double or triple common trailer axles are all available of reliable quality.

2, High standard steel material
A sturdy, durable and enforced frame of high strength steel is applied contributing to our practice-oriented, high-grade product. All of these have ensured an extremely high load-bearing performance and supply users with flexible choices from 30 tons to 120 tons.

3, Multi functions
External dimensions could be made according to customer's requirement, to offer you solutions for goods transporting, such as tank carrier, power generator carrier, steel slag carrier, coil transporter, high speed carrier etc...Detachable low bed semitrailer, extendable low bed semitrailer and dolly low bed semi trailer are also available. Our competent engineering team will design according to your individual request and supply you with satisfying products.

Model	QDT9401
Tare Weight (kg)	8000
Loading Capacity (kg)	31500
Gross Weight (kg)	39500
Dimension (mm)	12976x2500x2730
Inner Board Size(mm)	12785x2339x600
Wheel Track (mm)	6540+1320+1320
Overhang(Front/Rear) (mm)	-/2286
Wheel Specification	11.00-20,11.00R20, 12.00-20,12.00R20
Wheel Track (mm)	1820/1820/1820
Approach Angle/Departure Angle (°)	13
Plate Spring Quantity	-/7/7/7
