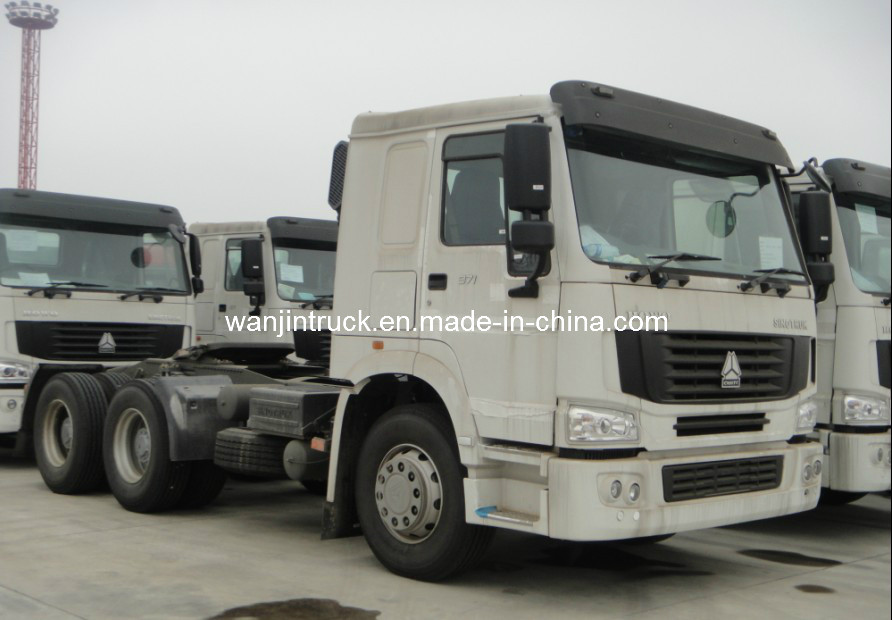

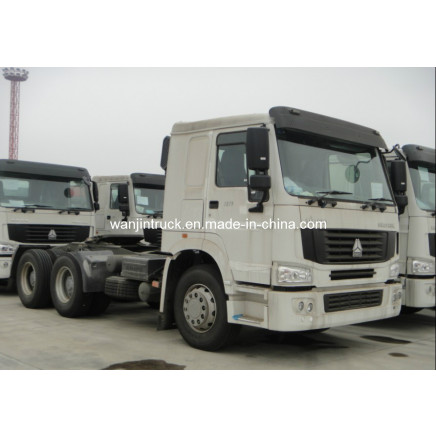

Trailer Head

More Views

Trailer Head

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 37500.0-53400.0/ Piece

Price:$37500.0 - $53400.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From May 29, 2015 To Aug 29, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:Trailer Head

Transmission Type:Manual

Power:Diesel

Load Capacity:21-30t

Emission Standard:Euro 2

Drive Wheel:6×4

Seats:?5

Horsepower:251-350hp

Engine Capacity:?8L

Tire Type:Tubeless

Tire Certification:CCC

Tire Design:Tubeless

Condition:New

Brand:Sinotruk HOWO

Cab:2 Seats with 1 Bed, with Air Conditioner,

Engine:336HP(371HP Is Available)

Transmission:10 Forward and 2 Reverse

Export Markets:South America, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia

Additional Info.

Trademark:HOWO

Packing:Nude

Standard:CCC

Origin:China

HS Code:8704190000

Production Capacity:20000 Units Per Year

Product Description

TRAILER HEAD
Brand; SINOTRUK HOWO
Cab; 2 seats with 1 bed, with air conditioner, electric controlled window and mirror
Engine: 336hp(371hp is available)
Transmission: 10 forward and 2 reverse
Front axle: 9000kgs
Driving axle: 2*16000kgs
Tire: 12R22.5
Kingpin: 3.5''

Brand; SINOTRUK HOWO
Cab; 2 seats with 1 bed, with air conditioner, electric controlled window and mirror
Engine: 336hp(371hp is available)
Transmission: 10 forward and 2 reverse
Front axle: 9000kgs
Driving axle: 2*16000kgs
Tire: 12R22.5
Kingpin: 3.5''

Weight	Curb Weight(kg)		8800
	Gross Vehicle Weight(kg)		25000
	Gross Combination Weight(kg)		50000
Dimension	Overall Dimensions(mm)	Length	6800
		Width	2496
		Height	2958(3718)
	Wheel Base(mm)		3225+1350,3200+1400
	Minimum Ground Clearance(mm)		298
Performance Parameters()	Maximum Speed(km/h)		102
	Economic Speed(km/h)		82
	Maximum Gradability(%)		35
	Minimum Turning Diameter(m)		15
Specification	Cabin		HW76(2 seats and 1 bed)
	Engine	Model	WD615.87
		Net Power(Hp)/Rotating Speed(r/min)	290/2200
		Maximum Torque(Nm)/Rotating Speed(r/min)	1160/1100-1600
	Gearbox		HW15710
	Clutch(mm)		430
	Rear Axle	Type	ST16
		Gear Ratio	4.42
	Oil Tank(L)		400
	Tires		12.00R20, 12.00R22.5, 295/80R22.5, 315/80R22.5
