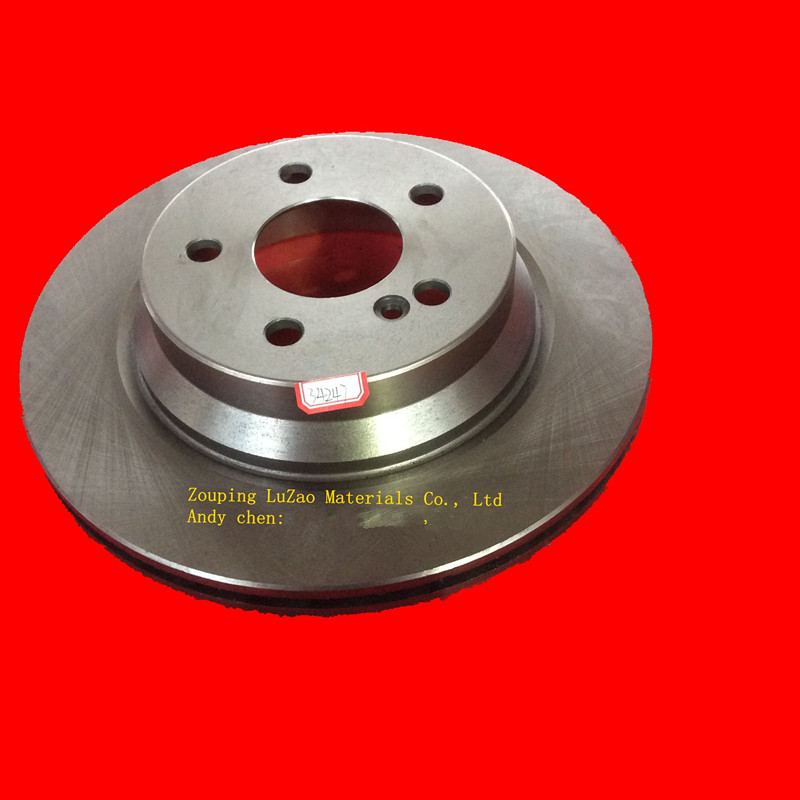

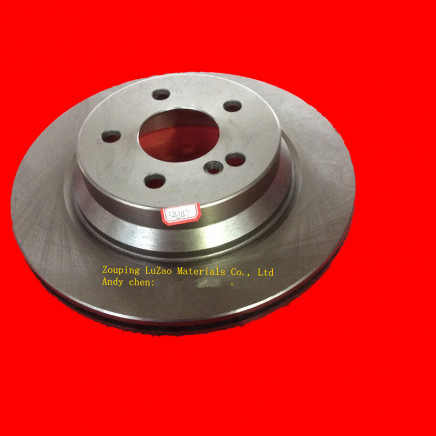

Top Sale OEM Car Brake Disc Amico34247 0from China Manufacturer

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
100.0	US $ 8.0-40.0/ Piece

Price:$8.0 - $40.0 / Piece

Trade Terms: FOB

Payment Terms: T/T

Price Valid Time:From Mar 26, 2015 To Jun 26, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:34247\ 211 423 09 12

Type:Brake Discs

Material:Iron

Position:Rear

Certification:ISO/TS16949

Classification:Disc

Drum Brakes Classification:Brake Drum

Main Market:Global

Hardness:170~210

Size:300mm*68.2mm

Total Carbon:3.0%~3.3%

Silicon:1.9%~2.2%

Manganese:0.7%~1.2%

Phosphorus:0.12%Max

Sulfur:0.12%Max

Export Markets:Global

Additional Info.

Trademark:Luzao

Packing:Plastic Bag and Carton

Standard:ISO

Origin:Shandong China Mainland

HS Code:870830999

Production Capacity:300t/Month

Product Description

Specifications:
OE No.: 211 423 09 12/ Aimco No.: 34247
Position: Rear Axle
Height: 68.2mm
Outer Diameter:300mm
Centering Hole Dia: 67Mm
Pitch circle diameter: 112mm
Brake disc thickness:22mm
Minimum thickness: 19.4mm
Number of holes: 5

Solid or vented: V
Packing: Neutral or Color, as customer's request
Delivery Detail: 20-30 days after order
Port:FOB,Qingdao
Payment Terms:T/T or L/C
Certificate: ISO9001
HS: 87083099
Brake disc Specifications:
1) Material: Gray iron HT250/G3000
2) Long service life & stable performance
3) 100% crucial dimension inspection and Balancing

Key Specifications
Item	Brake Disc, braking disc,brake rotor,auto car brake
OE No.
AIMCO NO.	34247
Position	Rear axle
Size	300*68.2mm
Height	68.2mm
Outer Diameter	300mm
Centering Hole Dia	67mm
Pitch circle diameter	112mm
Brake disc thickness	22mm
Minimum thickness	19.4mm
Number of holes	5
Solid or vented	V
Hardness	170~210
Chemical composite	C:3.0-3.3% Si:1.9-2.2% Mn:0.7-1.2% P:<0.12% S<0.12%
Material	Gray iron HT250/G3000
Packing	Neutral package or color, as customer's request

Place of Origin	Zouping,Shandong,China Mainland
Payment terms	T/T or L/C
MOQ	100~300 PCS
Lead Time	20-30 days
Warranty	1~2years
Brand name	Luzao
Certificate	ISO 9001
HS Code	87083099
Export Markets	Global/Worldwide
