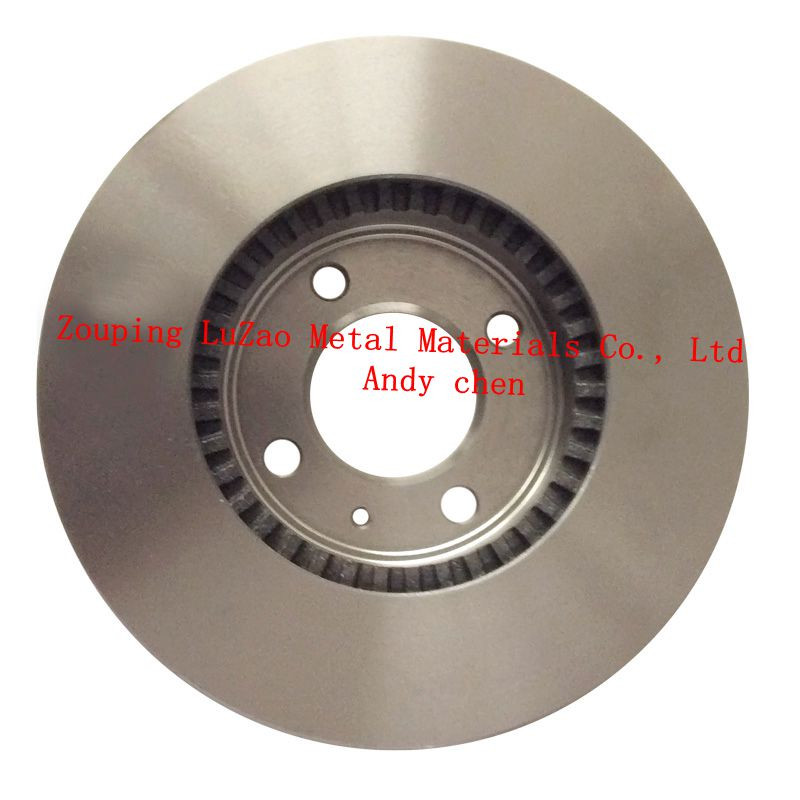

Top Brake Disc 3464 (321 615 301 D)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$8.0 - $40.0 / Piece

Min. Order (Pieces)	Unit Price
100.0	US $ 8/ Piece
200.0	US $ 40/ Piece

Trade Terms: FOB

Payment Terms: L/C, T/T

Price Valid Time:From Jul 14, 2015 To Oct 14, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:3464(321 615 301 D)

Type:Brake Discs

Material:Iron

Position:Front

Certification:ISO/TS16949, TS16949

Classification:Disc

Drum Brakes Classification:Brake Drum

Main Market:Global

Size:256mm*38.8mm

Hardness:170~210

Total Carbon:3.0%~3.3%

Silicon:1.9%~2.2%

Manganese:0.7%~1.2%

Phosphorus:0.12%Max

Sulfur:0.12%Max

Port:FOB Qingdao

Export Markets:Global

Additional Info.

Trademark:Luzao

Packing:Neutral or Color, as Customer?s Request

Standard:ISO9001

Origin:Shandong Zouping, China

HS Code:87083099

Production Capacity:300t/Month

Product Description

Position: Front wheel
Height: 38.8mm
Diameter: 256mm
Center hole dia: 65mm
Pitch circle diameter: 100mm
Brake disc thickness: 20 mm
Minimum thickness: 18 mm
Number of holes: 4
Solid or vented: V
Packing: Neutral or Color, as customer's request
Brake disc Specifications:
1) Material: Gray iron HT250/G3000
2) Long service life & stable performance
3) 100% crucial dimension inspection
4) 100% qualification
5) Low noise standard for casting is HT250, Standard for machining is SAE-j431.
6) Stable coefficient friction

Key Specifications
Item	Brake Disc, braking disc,brake rotor,auto car brake
OE No.	321 615 301 D
AIMCO NO.	3464
Position	Front axle
Size	256*38.8mm
Height	38.8mm
Outer Diameter	256mm
Centering Hole Dia	65mm
Pitch circle diameter	100mm
Brake disc thickness	20mm
Minimum thickness	18mm
Number of holes	4
Solid or vented	V
Hardness	170~210
Chemical composite	C:3.0-3.3% Si:1.9-2.2% Mn:0.7-1.2% P:<0.12% S<0.12%
Material	Gray iron HT250/G3000
Packing	Neutral package or color, as customer's request

Place of Origin	Zouping,Shandong,China Mainland
Payment terms	T/T or L/C
MOQ	100~300 PCS
Lead Time	20-30 days
Warranty	1~2years
Brand name	Luzao
Certificate	ISO 9001
HS Code	87083099
Export Markets	Global/Worldwide
