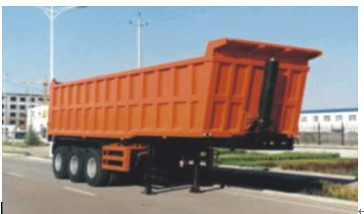

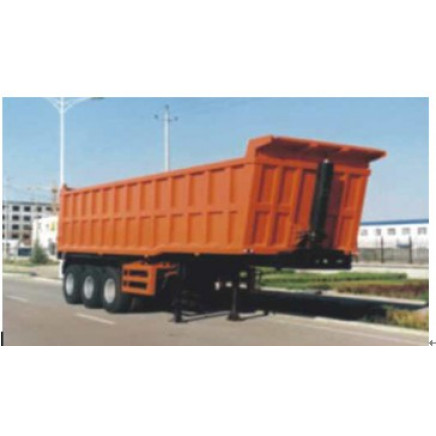

Tipping Trailer

More Views

Tipping Trailer

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Unit)	Unit Price
1.0	US $ 20000.0-30000.0/ Piece

Price:$20000.0 - $30000.0 / Piece

Packing: Nude Packing

Production Capacity: 8000 Unit A Month

Type: Semi-Trailer

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Type:Semi-Trailer

Certification:ISO

Material:Steel

Scale:Heavy Duty

Components:Trailer Axles

Export Markets:North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia

Additional Info.

Packing:Nude Packing

Origin:China Mainland

Production Capacity:8000 Unit A Month

Product Description

Type: Tipping trailer
Model: THT9405ZZX
Brand: CIMC
Tare weight: 11200kg
Rated contained mass: 28500kg
The total mass: 39700kg
Wheel base (mm): 6080+1310+1310
Front overhang (mm): -
Rear overhang (mm): 1460
Spring few films: -/8/8/8
Rear Track (mm): 1820
Side wall: 6mm
Floor wall: 8mm
Outside dimension: 11340mm(L)X2495mm(W)X3950mm(H)
Inner dimension: 10400mm(L)X2280mm(W)X1435mm(H)

Tire: 12.00R20(Radial tire)
Axle: 15t FUWA axle
Shaft number: 3
King pin: 3.5"inch (2" inch can be optioned)
Braking system: WABCO relay valve
Cubicmeters: 34m3
Playload: 54t (for sand)
Hydraulic: HYVA hydraulic cylinder----FC214-5-07130(P=486)
Accessories: One standard tool box
