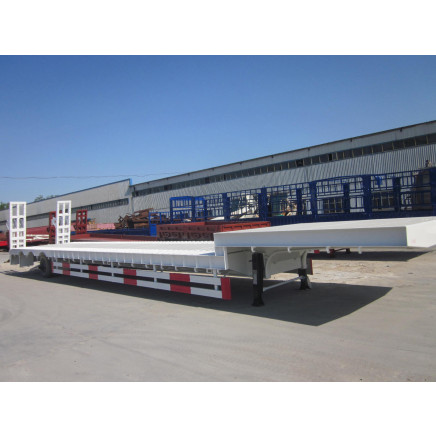

Three Axles Low Platform Semi Trailer

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (UNIT)	Unit Price
2.0	US $ 18000/

Price:US $18000.0 / UNIT

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: L/C, T/T

Price Valid Time:From Jun 03, 2013 To Sep 03, 2013

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:cty9404

Type:Semi-Trailer

Certification:CCC, ISO

Axles:Fuwa,Bpw,Huajing Brand:Loading Capacity:30-80tons

Material:Steel

Scale:Heavy Duty

Components:Trailer

Load Capacity:60tons

Export Markets:South America, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia

Additional Info.

Trademark:TONGYADA CTAC

Packing:Nake

Standard:13000*2500*2870MM

Origin:Jining, Shandong, China

HS Code:87164000

Production Capacity:50unit/ Per Month

Product Description

Three axles low platform semi trailer Delivery for Excavator, Machinery, Road Roller, Containers, Groceries

SHIPPING ITEM: BY BULK CARGO, THREE PIECES OF LOW BED TRAILER PUT TOGEHTER

Payment terms:

30% contract value as the deposit by T/T, 70% contract value payoff before delivery time after production finished and inspection. ( you can sent one technical person come to test our semi trailer after production finished.
After-sales Service:

Our grantee term is 6 months. We will sent the engineer for mending the semi trailer for free within the six month, but you should pay the air-ticket fees go and back, and supply the food and room in your country.

Welcome you and your friends come to visit our factory at any time!

Tare Weight	About 8.5-13T
Dimension	13000mm3000mm-3500mm1650mm
Loading Capacity (T)	40T-100T
Axle	13 T/16T, FUWA /BPW /Huajing Brand
Rim	6.5-20/7.5-20/8.00-20/8.5-20
Tire	8.25R20/10.00R20/11.00R20/12.00R20
Suspension	Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand )
Spring leaf	90(W)mm13(Thickness)mm10 Layer or 100mm12mm12
King pin	JOST brand 2.0 or 3.5inch bolts type or Welding type
Support leg	JOST brand D200T or China brand 28Tons (Double speed)
Main beam	Height: 450mm-520mm, upper plate is 14mm-25mm, middle plate is 8mm-12mm, down plate is 16mm-25mm ; Material is Q345B Steel .
Side beam	16mm -25mm channel steel ( Material is Q235steel ).
Ladder	Manual or Hydraulic type
Gooseneck	For choose
Brake chamber	WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); Two pieces of 45L air tanks
ABS	Optional
Twist Locks	Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type)
Valve	WABCO valve
Light	LED light
Voltage	24V
Receptacle	7 ways (7 wire harness)
Tool box	One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms:	By bulk cargo carrier, RORO or 40HQ container.
