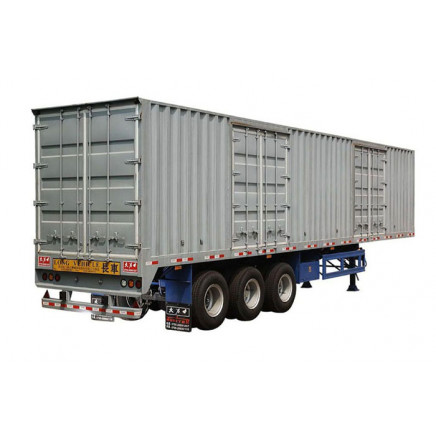

Three Axle Van Semi Trailer and Cargo Box Trailer (SGJ9391XXY)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
2.0	US $ 15000.0-30000.0/ Piece

Price:$15000.0 - $30000.0 / Piece

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: L/C, T/T, Paypal, Money Gram, Western Union

Price Valid Time:From Jan 06, 2015 To Apr 06, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:SGJ9391XXY

Type:Axle

Towing Pin Material:Carbon Steel

Impeller Type:Closed Type

Hook Type:Single

Universal Joint Type:Flexible Universal Joint

Brake Pad Material:Ceramic

Towing Pin Type:Mushroom Type

Towing Pin Diameter:50mm

Differential Gear Type:Gear Type

Independent Suspension Type:Cross Arm Type

Size:as Your Requirements

Colour:as Your Request

Use:Cargo Transportation

Export Markets:North America, South America, Southeast Asia, Oceania, Mid East, Eastern Asia

Additional Info.

Trademark:jupiter

Packing:Nude, Coating with Wax

Standard:ISO9001; ccc

Origin:China

HS Code:87163910

Production Capacity:1000 PCS Per Year

Product Description

Trailer Type van trailer
Dimension(LxWxH)(mm) 13000x2550x3990
Breast Dimension(LxWxH)(mm) 12730x2400x2490
Axles number 3
Wheelbase 7200+1310+1310

Spring Leaf(Front/Rear) -8/ 8/ 8
Quantity of TYRE 12
Wheel Span(mm) 1840/ 1840/ 1840
TYRE Size 10.00-20, 11.00-20

MAX Total Mass(kg) 38990
Capacity Load(kg) 30500
Tare(kg) 8490

The MAX weight acting at the King pin(kg)
Kingpin Setting /Rear Setting(mm) 1100/ 2080

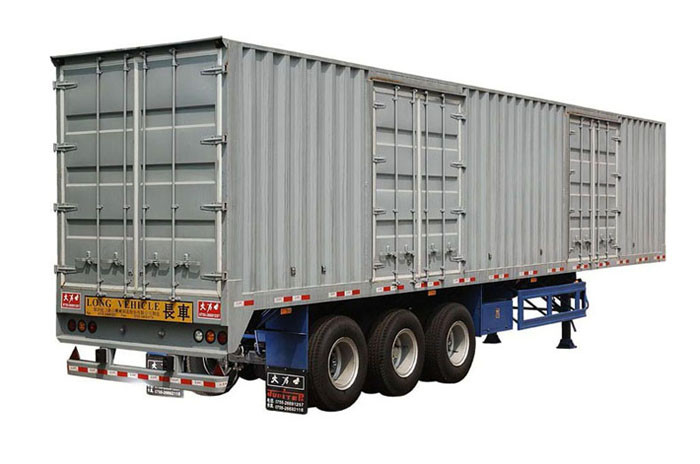

Three Axle Van Semi Trailer and Cargo Box Trailer (SGJ9391XXY)

Type	Box semi trailer
Shipping terms	Shipping bulk cargo
Weight
Tare weight	6680kg--8500k
Loading capacity	30t_60t
Axle weight load	13t/16t
Specification
Axle number	3
Axle specs	Fuwa/bpw
Suspension	Common mechanical suspension
Wheel	11.00R22.5/12.00R22.5 vacuum tire/triangle or double cone brand
King pin	JOST 50#/90# traction pin
Dimensions (LWH)	13000x2550x3300mm
Support legs	28tons JOST D200
Rim	8.2522.5/9.0022.5 vacunnm tire zhengxing brand
Wheelbase	6130+1310+1310mm
Steel spring	10/10/10 pieces per axles
Twist locks	no
Tire
Tire number	Can be choose freely
Spare tire carriers	2/4 pieces
Frame
material of main beam	The height of the beam is 450/500 mm.upper plate is 14mm.down plate is 8mm.if choose the SSAB high stress steel .the uper and down plate is 8mm .middle plate is 5mm.side board thickness is 1.2/2.3 mm with 28pieces lock bar
Platform plate	3mm diamond /flat platform
Brake
Brake	Kemi brand of china
Brake chamber	Four double and two single chamber (TKL brand )
ABS system	Without
Electrical
Voltage	24v
Receptacle	7 ways(7wire harness)
