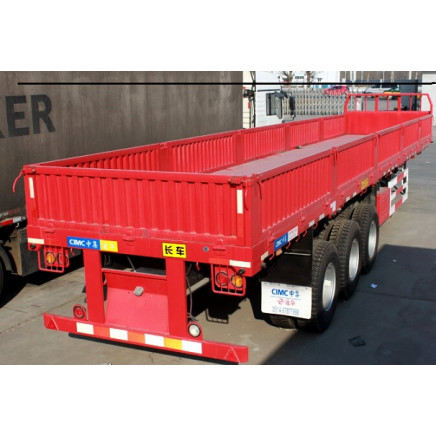

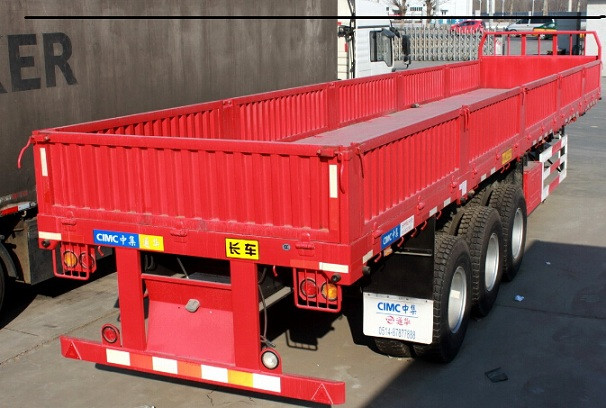

The Three Axles Semitrailer 40 Feet Container Cargo Trailer

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 46980.0-59880.0/ Piece

Price:$46980.0 - $59880.0 / Piece

Trade Terms: FOB, CFR, CIF, DAP

Payment Terms: L/C, T/T, D/P, Western Union

Price Valid Time:From Aug 04, 2014 To Nov 04, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:THT9470TJZP

Type:Semi-Trailer

The Brand:Cimc

The Trailer:Cargo Trailer

The Feet:40

The Wheel:3 Axles

Material:Steel

Scale:Heavy Duty

Certification:CCC

Components:The Trailer

Export Markets:Global

Additional Info.

Trademark:CIMC

Packing:Nude or Dismounting

Standard:CCC

Origin:China

HS Code:8701200000

Production Capacity:10000

Product Description

* The trailer can be coupled and uncoupled quickly, allowing them to be shunted for loading and to be trunked between depots.
* Semi-trailer can haul longer objects(tree trunks, pipings, beems, railway truck)than a full trailer.
* Given equal lengths of the composition, a semi-trailer has greater load capacity, since the drawbar adds to the overall length of the composition.
* A semi-trailer has a better ratio between tare and cargo weights.
* A semi-trailer leads to more weight on the driven axels of the tractor than a truck plus trailer combination, an advantage on snow or mud.
* Types

Different type of semi-trailer are desihned to haul different cargoes.
* Common widths are 8 feet(2.44 and 2.6 metres(8 ft 6.4 in)
* Box semi-trailer: Also called a van trailer
* Standard lengths are 28 ft 0 in (8.53m), 32 ft 0 in (9.75m), 40 ft 0 in (12.19m), 45 ft 0 in (13.72m), 48 ft 0 in (14.63m)and 53 ft 0 in (16.15m).
* Curtain sider semi-trailers: Similar to a box trailer execept that the sides are movable curtains made of reinforced fabric coated with a waterproof coating
* Reefer Box Trailer: With a heating/cooling unit(reefer)attached. Used for hauling produce, ice cream, etc.
* Tank semi-trailers: Used for hauling liquids such as gasoline, milk, orange juice, aclcohol, etc.
* Dry Bulk semi-trailers: Used for sugar, flour, and other dry power materials.
* Flatbed semi-trailer: Can haul almost anything that can be stacked on and strapped down
* Lowbody semi-trailer: The load floor is as close to the ground as possible. Most commomly usedto haul heavy equipment, equipment, cranes, bulldozers, etc
* Drop-deck trailer: The floor drops down a level once clear of tractor unit; The most common types of drop-desk trailer are flatbeds and curtain siders.
The manufacture reserves the right of technical alteration/change for better improvement prior notice

MODEL	THT9470TJZP
Description of vehicle	45'
Axle	3-axle
Gross weight (kg)	28000
Tare weight (kg)	6000
Payload (kg)	22000
External dimension (LWH) mm	13000x2495x2800/2920
Body dimension (LWH) mm	12780x2300x600/500
Wheel base(mm)	6500/6800+1305+1305
Track space(mm)	1840
Tires	11.00-20/12.00-20
Rim	8.0-20
No. of tire	12
No. of lock(option)	8/12
Leaf spring	7/7/7,8/8/8,11/11/11
Brake system	ABS is optional
Trail pin	2"/3.5''
