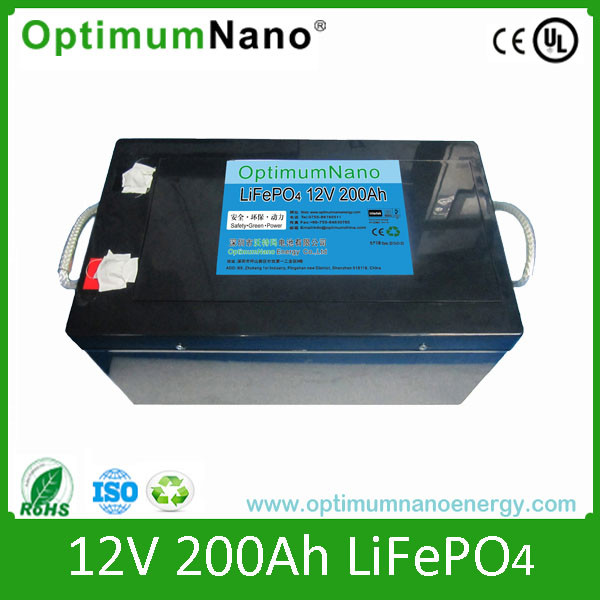

The Most Safety 12V 200ah Rechargeable Battery Pack

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA, EXW

Payment Terms:L/C, T/T, D/P, Paypal, Money Gram, Western Union

Trademark:OptimumNano

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:OPT-12-200

Type:Lithium-Ion Battery Pack

Connection Mode:Series and Parallel

Capacity:200

Voltage:12V

Weight:About 15kg

Warranty:5years

Life Cycles:2000 Times

Application:E-Car,E-Bike ,Scooter,E-Walker

Certificate:UL ,CE ,RoHS ,ISO9001 ,Ts16949

Advantages:Safety,Long Life Cycles,High Energy Density

Discharging Rate:<3c

Export Markets:Global

Additional Info.

Trademark:OptimumNano

Packing:Plastic Casepvc or Cutomized Alumilium Case

Standard:CE, UL, ROHS, SGS, TS/16949 and ISO9001-2008

Origin:Shenzhen, Guangdong, China

HS Code:8507600090

Production Capacity:1000packs/Week

Product Description

Quality features of optimumnano LiFePO4 battery pack:

In optimumnano, each cell and pack is produced with the principle of "conformity in 6 aspects and 3 inspections in 3 stages", thus the high stability and reliability can be guaranteed. "Conformity in 6 aspects" is a principal developed by optimumnano's engineers in production and inspection process. The application of ensures conformity of packs and improves service term of pack obviously. And "3 inspections in 3 stages" refers to inspections on battery assembly, paralleled modules and finished packs.

The feature of LiFePO4 battery
1, Safe: The iron-lithium battery is more safe and reliable than the lead acid one. It does not explode or burn when bump, heavy stress, needle pricking, short circuit, overcharge and overheat.
2, Environment-friendly: Accredited with RoHS, without any hazardous and noxious substances.
3, Small in volume and light in weight: The iron-lithium battery is about 1/2 the volume and 1/3 the weight of the lead-acid battery.
4, Powerful: Able to discharge with 20C at 65. C max.
5, Steady performance: High power output: 1C, continuous: 3C pulse for normal cells and 20 C for special design. Low self-discharge rate, less than 3% monthly.
6, Long cycle life: Over 2000 cycles with capacity staying at 80% min.
7, Lower average price per year: The average price per year is 100 Yuan RMB less than the lead-acid battery for 5 years.
8, No memory effect: Always ready for charge and use, with no need to charge after a full discharge.
9, Wide temperature range: Available for use when the temperature ranges from -20° C to 70° C

NO.	ITEM	SPECIFICATION
1	Rated voltage	12V
2	Rated capacity	200Ah
3	Max charge voltage	14.6V
4	Cut off voltage	10V
5	Standard discharge current	50A
6	peak discharge current	90A
7	Battery size	About 520269203mm
8	Battery weight	35KG
9	certification	UL,CE,SGS,ROHS,MSDS,UN38.3
10	oversea market	Europe,south America,Middle East,etc
