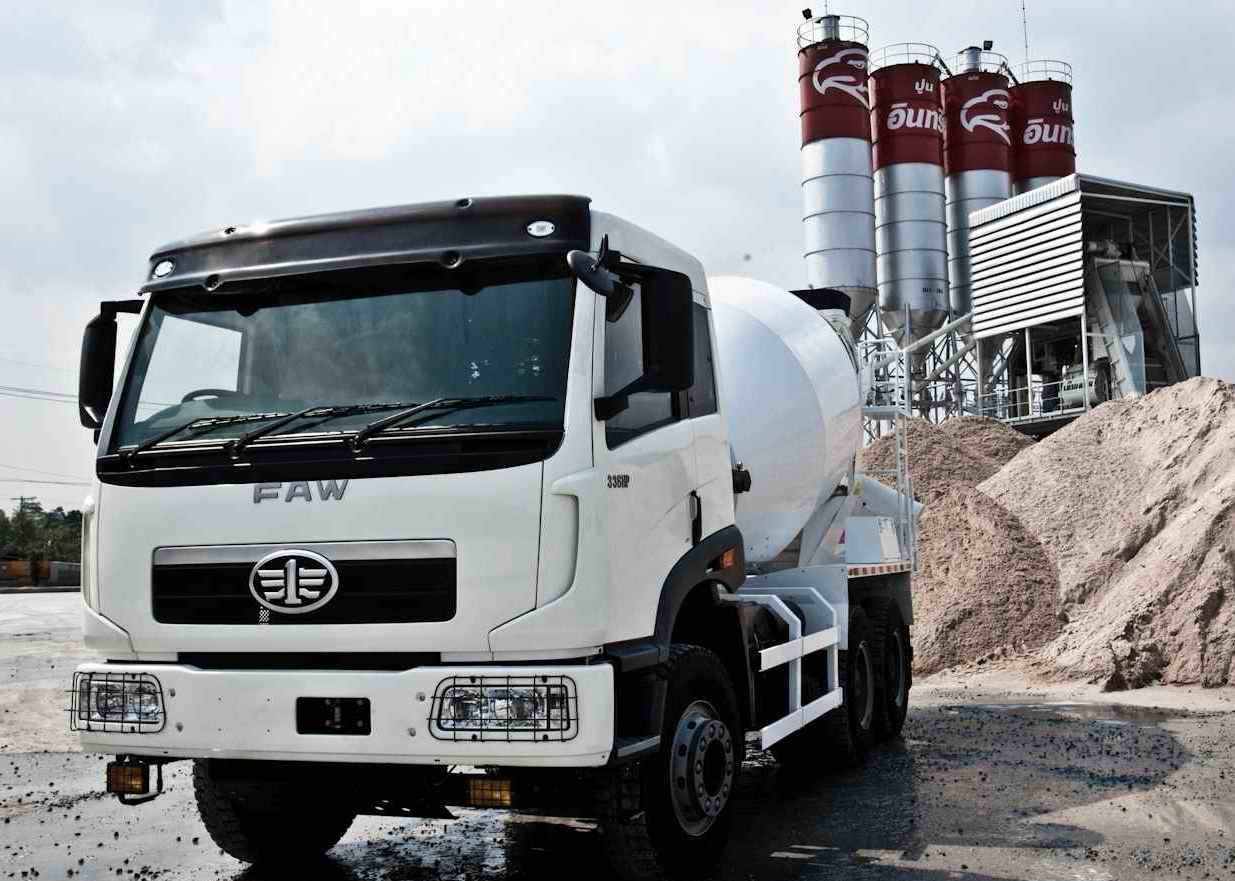

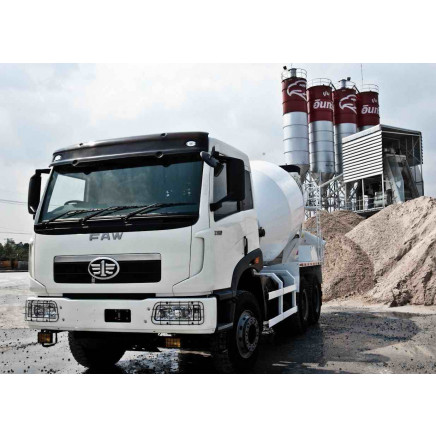

The Jiefang 6X4 336HP 6m3 Faw Concrete Mixer Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 51000.0-57000.0/ Piece

Price:$51000.0 - $57000.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T, Western Union

Price Valid Time:From Dec 15, 2014 To Mar 15, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CA5250GJBEA80

Certification:ISO9000, CCC, TS16949, RoHS

Transmission Type:Manual

Emission Standard:Euro 4

Displacement:9

Engine Type:4 Stroke

Payload:20T

Fuel:Diesel

Drive Mode:6x4

Maximum Horsepower:300-400hp

Condition:New

The Brand:Faw

Engine Brand:Dachai

Traction Type:6X4

Colour:Yellow , Red, White

Engine:Weichai

Export Markets:Global

Additional Info.

Trademark:FAW

Packing:Nude

Standard:CE, SGS and so on

Origin:Shandong, China

HS Code:8704230090

Production Capacity:5000PCS

Product Description

Description:
This series has different capacity from 8-12m³ . As to the whole truck, we use second-class Chinese and international chassis to refit, such as Faw Group, Dongfeng, Sino Truck, UD Nissan, Auman, Isuzu etc.
Chassis has such merits: High-power, Lighten weight, Nice performance.
The tank body is designed by means of three-dimensional aid design method with the characteristics of reasonable structure, large effective capacity.
We use OEM fittings, makes the tanker solid and durable, and reduce the cost to operate and maintain.
Other key parts of this transit concrete mixer include hydraulic system and mixing system.
Hydraulic system can be equipped with oil pump and motor from either German Rexroth or Italy ARK, thus offering reliable performance. The decelerator acquired from Italy PMP or Italy TOPUNION offers a high
Reduction ration of 100-130. The mixer is able to offer a minimum charging speed of 3m³ /min, and a minimum discharging speed of 2m³ /min. This ensures high mixing efficiency.

Merits:
1. Drum use two cove floating type spiral blades, the discharging spiral angle rotates 75° , and reducing to 60° Upto the pyramis at bottom of drum. This unique design greatly reducing the residual discharging ratio,
Almost zero. Inclination is between 12-15° , improving the high mixing efficiency. Also reduce the concrete impact which offers more resistance to extend the service life. The scraper plate which fitted at rear of the spiral blade ensure an assistance movement for better mixing.
2.350L large capacity water tank, compressed air form, high pressure and strong impulse to meet almost cleaning conditions.

Detailed Parameters:
Product Model: HZZ5250GJBJF
Chassis Model: CA1252P2K2T1S2E
Kerb Weight: 11320kgs
Max. Wheelbase: 3600+1350mm
Tire: 11.00-20 16PR
Mixing Volume: 8/9/10cbm
Geometric volume: 14.6/15.1/16.2cbm
Padding rate: 63%
Charging Speed: 3m³ /min
Discharging Speed: 2m³ /min
Residual Rate: 1%
Speed of agitator: 0-12 r/min
Gradient: 13-15 °
Concrete slump: 70-260mm
Water supply: Air compressed air The Jiefang 6X4 336HP 6m3 Faw Concrete Mixer Truck

Model	CA5250GJBEA80
Traction type	6X4
Driving type	LHD
Driver's cab	Flat cabin, A/C
Dimensions in (mm)	Wheel base(mm): 3400+1350
	Overall size(mm): 805025003900
	Frame(mm): 32090(8+8)
	Mixing drum volume(m3): 6
Engine	Maker: WEICHAI
	Diesel 4 stroke direct injection diesel engine, 6 cylinder in-line with water cooling, turbo-charging & intercooling
	Engine model: WP10.336N
	Maximum torque: 1250Nm/1350-1500r/min
	Engine Horsepower: 336HP
	Displacement: 9.726L
Clutch	430mm, hydraulically operating with air assistance
Transmission	Brand: FAW
Transmission	Model: CA9TBX180M(9 speeds)
Front Axle	FAW D643
Rear Axle	FAW 300 double reduction driving axle Ratio: 1:5.26
Tyres	Brand: Double coin
Tyres	Model: 11.00R2016 Radial tyre
No. of tyre	10+1(spare)
Electrics	Operating voltage: 24V, negative grounded
Weight	Kerb weight 14000kg
Performance	Maximum driving speed(km/h) 90
