The Fuel Tank Semitrailer 3axles 55cbm Fuel Tank Semitrailer

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 25000/ Piece

Price:US $25000.0 / Piece

Trade Terms: FOB, CIF, DAP

Payment Terms: L/C, T/T, Western Union

Price Valid Time:From Aug 01, 2014 To Nov 01, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:DLQ9401GYY

Type:Semi-Trailer

The Axle:13ton Bpw

The Tire:12.00r22.5

The Loading Weight:55t

Material:Steel

Scale:Heavy Duty

Certification:CE, ISO/TS16949, DOT, CCC, ISO, SGS

Components:Trailer Axles

Load Capacity:50T

Export Markets:Global

Additional Info.

Trademark:CIMC

Packing:Nude

Standard:TS16494; ISO: 19001: 2000

Origin:China

HS Code:876542

Production Capacity:10000PCS/Year

Product Description

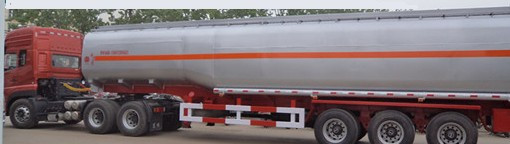

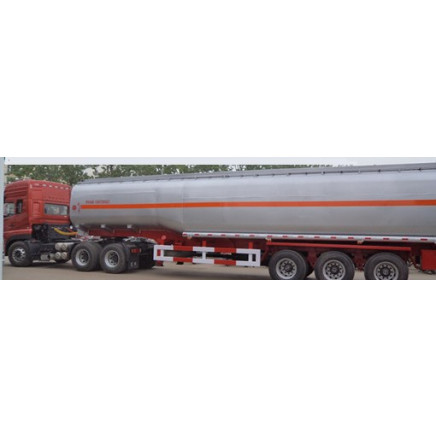

55cbm 3axles fuel tank semitrailer
1. 13T BPW axles, Jost supporting leg;
2. Tire: 12.00R22.5
3. Factory directly sales. ( or to load water, chemical liquid, bulk cement, asphalt, alcohol)

We are professional manufacturer, we would like to provide you competitive price and high quality products.

We can provide you

1. 30-55cbm fuel tank semitrailer, 2axles or 3axles
2. FUWA brand axle or BPW Brand axle
3. 11.00-20 tire or 11.00R20 tire or 12.00-20 or 12.00R20 tire
4. Comptitive price, high quality products, best service.

Please refer the following specs, special for 55cbm fuel tank semitrailer.

Model
DLQ9401GYY fuel tank semitrailer

Outside dimension(mm)
12990*2495*3750

Total mass(Kg)
40000

Loading mass(kg)
30000

Kerb mass(kg)
10000

Approach / departure angle
/13

Front/rear suspension
/2090

Axles number
3

Wheelbase
7200+1310+1310

Tire specs
12.00R22.5

Tire number
12+1

Spring file
9/9/9

Front tread/ rear tread
/1840

Axle specs
13T BPW axle Jost supporting leg.

Capacity of tank body
55, 000Liters

Thickness of tank body
6mm

Inner tank body
Equip separators (baffle) to prevent surging of liquid towards head

Two discharge outlets, with fueling hose and quickly couple, rear ladder.

Model	DLQ9401GYY fuel tank semitrailer
Outside dimension(mm)	1299024953750
Total mass(Kg)	40000
Loading mass(kg)	30000
Kerb mass(kg)	10000
Approach / departure angle	/13
Front/rear suspension	/2090
Axles number	3
wheelbase	7200+1310+1310
Tire specs	12.00R22.5
Tire number	12+1
Spring file	9/9/9
Front tread/ rear tread	/1840
Axle specs	13T BPW axle Jost supporting leg.
Capacity of tank body	55,000Liters
Thickness of tank body	6mm
Inner tank body	Equip separators (baffle) to prevent surging of liquid towards head
	Two discharge outlets, with fueling hose and quickly couple, rear ladder.
