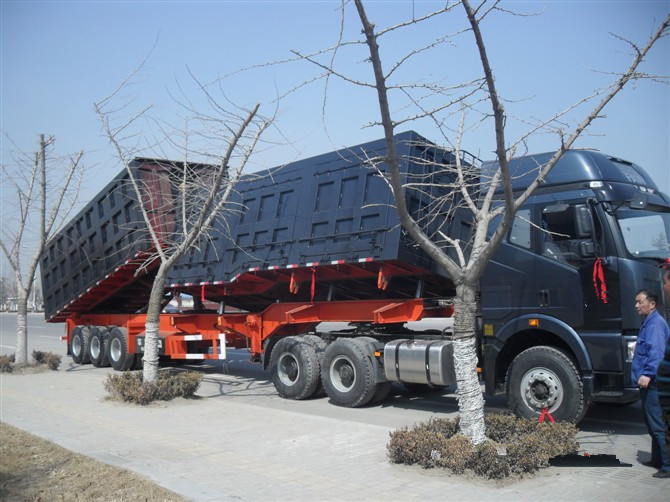

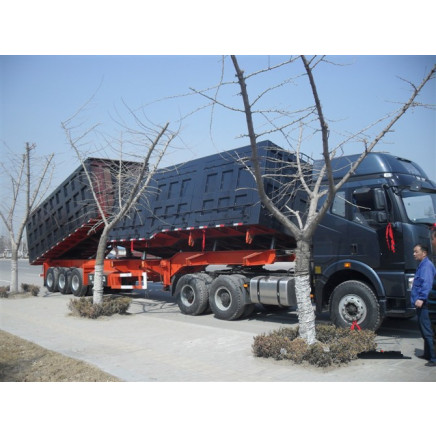

The Dumper Semitrailer 40t Side and Rear Dumper Trailer

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 36700.0-39600.0/ Piece

Price:$36700.0 - $39600.0 / Piece

Trade Terms: FOB, CFR, CIF, DAP

Payment Terms: L/C, T/T, Western Union

Price Valid Time:From Aug 29, 2014 To Nov 29, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:ST9400GYY

Type:Suspension

Towing Pin Material:Carbon Steel

Impeller Type:Closed Type

Hook Type:Double

Universal Joint Type:Rigid Universal Joint

Brake Pad Material:Semimetal

Towing Pin Type:"I" Type

Towing Pin Diameter:90mm

Differential Gear Type:Gear Type

Independent Suspension Type:Multi-link Type

Brand:Cimc & Lufeng

Loading Weight:40000kg

Axles Units:3sets

Tyre:11.00r20

Axle Brand:13ton Fuwa

Dumper:Bottom 8 Side 6mm

Export Markets:Global

Additional Info.

Trademark:CIMC, Lufeng

Packing:Nude

Standard:CE, SGS and so on

Origin:Shandong, China

HS Code:87014521

Production Capacity:1000PCS/Year

Product Description

Frame: High strength low alloy steel with 700 MPa yield strength be used.
Fabricated main beam 550mm deep with ? 12mm x 150 mm top and bottom flanges, 6mm web.

Body: High strength low alloy steel with 700 MPa yield strength be used. 3mm thickness of rubbing plate with reinforce steel plate.

Rear bumper: The rear bumper step is square section type with 100mm high x 50mm wide x 5mm thick with road traffic reflector suit to road regulation

Crylic acid or polyurethane painting, color according to customer's requirement

Please feel free to contact me, any needs and requiryments, my friend.
Tel: 0086-15269249286

Dimension(mm) Body Dimension	LWH: 14500X2500X3200(mm) L W H: 8000X2500X1500mm Side Dumper L W H : 6500X2500X1500mm Rear Dumper

Cargo body	40CBM-50CBM
Tipping	Th
Landing gear	Linkage type
Kingpin	3.5”Welded type
Suspension	Strengthened suspension
Axle	13 ton Axle , 3 Pcs , the FUWA brand
Tire	11.00R20 , 12Pcs,
Tool box	1 unit
Lights, electrical,and Accelerators	yes, 24 volts,
