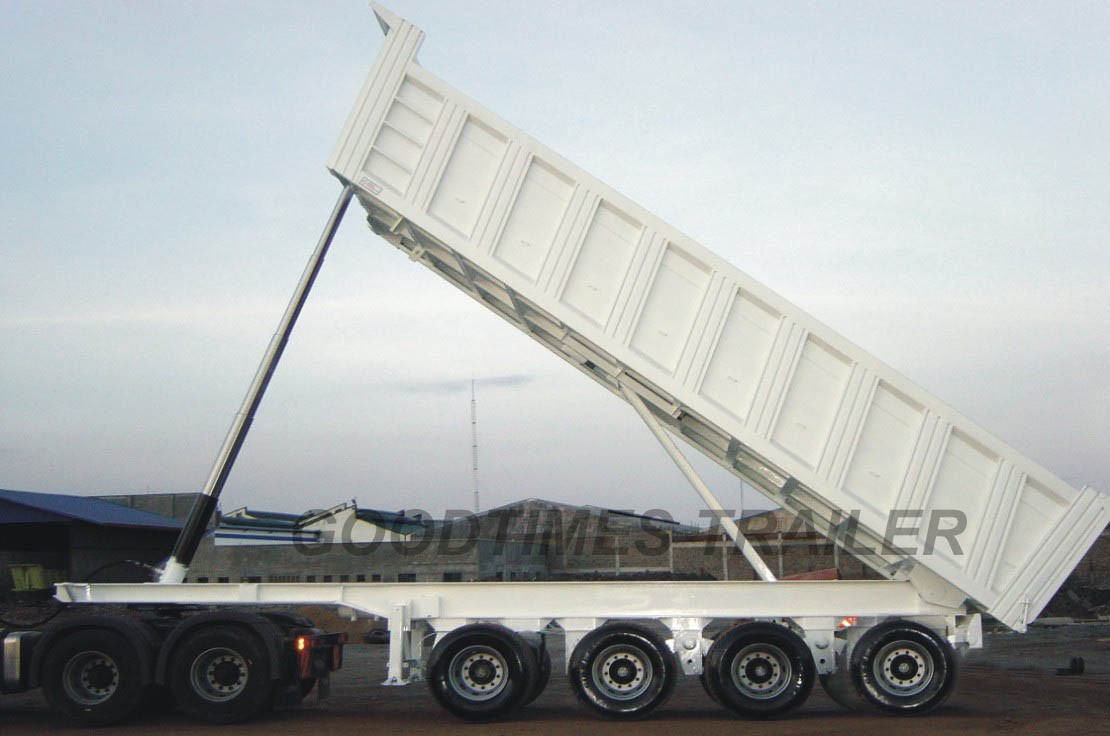

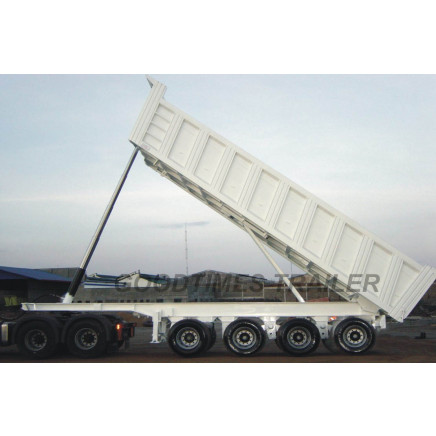

The 45 Cbm 4 Axles Tipper Semitrailer

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 18000.0-28000.0/ Piece

Price:$18000.0 - $28000.0 / Piece

Trade Terms: FOB, CFR, CIF, DAP

Payment Terms: L/C, T/T, Western Union

Price Valid Time:From Jan 07, 2015 To Apr 07, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:HSD9630ZX

Type:Suspension

Towing Pin Material:Carbon Steel

Impeller Type:Closed Type

Hook Type:Single

Universal Joint Type:Rigid Universal Joint

Brake Pad Material:Semimetal

Towing Pin Type:Mushroom Type

Towing Pin Diameter:90mm

Differential Gear Type:Gear Type

Independent Suspension Type:Cross Arm Type

Colour:White

Axles:4

Volumn:45m3

Series:Tipper Semitrailer

Goods:Sand, Small Stone

Export Markets:Global

Additional Info.

Trademark:Goodterms

Packing:Nude

Standard:TS16494

Origin:China

HS Code:876521

Production Capacity:10000PCS/Year

Product Description

HSD9630ZX
45CBM 4 Axles Tipper Semi Trailer
10.77M length, 6mm side wall semitrailer
Dumper is heavy duty and extra designed

HSD9630ZX

45 CBM 4 Axles Tipper Semi Trailer

TECHNICAL DATA

Tare Weight
13000kgs

Pay Load
50000kgs

Total Weight
63000Kgs

Overall Length
10776mm

Overall Width
2920mm

Overall Height
3710mm

Wheel track
1840mm

Wheelbase
4800mm+1360mm+1360mm+1360mm

DUMPER BODY

Volume
45m3

External dimension (L x W x H):
10776mmx2920mmx2240mm

Inner dimensions (L x W x H):
9830mmx2730mmx1700mm

Floor
8mm thickness

Side wall
6mm thickness

Front wall
8mm thickness

STANDARD SPECIFICATION

Main Frame
Heavy duty and extra durability designed; Opting for high tensile steel Q345B,

500mm Height I Beam,

Hydraulic system
One set of HYVA FE214-5-07130 cylinder

Axle
Four Units of German style 18T axle

Suspension
A couple of German style mechanical four-axle suspension

Leaf Spring
Eight sets of 13-piece leaf spring, 11x100mm

King Pin
One unit of 3.5 bolt-in kingpin

Landing Gear
Two-speed, manual operation, heavy duty landing gear

Wheel Rim
9.0R22.5

Tyre
315/80R22.5

Pneumatic Braking System
A system with emergency brake and parking brake;

Electrical System
One unit of JAEGER POWAY, 24V 7-pin ISO 1185 standard socket; Two sets of standard rear light, turn light, rear reflector, side light, side reflector etc.

One set of 6-core standard Cable.

Painting
Sand blasting before painting;

One coats of primer, anti corrosion

Two coat of finishing painting;

TECHNICAL DATA
Tare Weight		13000kgs
Pay Load		50000kgs
Total Weight		63000Kgs
Overall Length		10776mm
Overall Width		2920mm
Overall Height		3710mm
Wheel track		1840mm
Wheelbase		4800mm+1360mm+1360mm+1360mm
DUMPER BODY
Volume			45m 3
External dimension (L x W x H):			10776mmx2920mmx2240mm
Inner dimensions (L x W x H):			9830mmx2730mmx1700mm
Floor			8mm thickness
Side wall			6mm thickness
Front wall			8mm thickness
STANDARD SPECIFICATION
Main Frame	Heavy duty and extra durability designed; Opting for high tensile steel Q345B, 500mm Height I Beam,
Hydraulic system	One set of HYVA FE214-5-07130 cylinder
Axle	Four Units of German style 18T axle
Suspension	A couple of German style mechanical four-axle suspension
Leaf Spring	9 sets of 13-piece leaf spring,11x100mm
King Pin	One unit of 3.5 bolt-in kingpin
Landing Gear	Two-speed ,manual operation, heavy duty landing gear
Wheel Rim	9.0R22.5
Tyre	315/80R22.5
Pneumatic Braking System	A system with emergency brake and parking brake;
Electrical System	One unit of JAEGER POWAY ,24V 7-pin ISO 1185 standard socket; two sets of standard rear light, turn light, rear reflector, side light, side reflector etc. One set of 6-core standard Cable.
Painting	Sand blasting before painting; one coats of primer, anti corrosion two coat of finishing painting; colour as customer choice
Accessory	One box with a set of standard trailer tool
