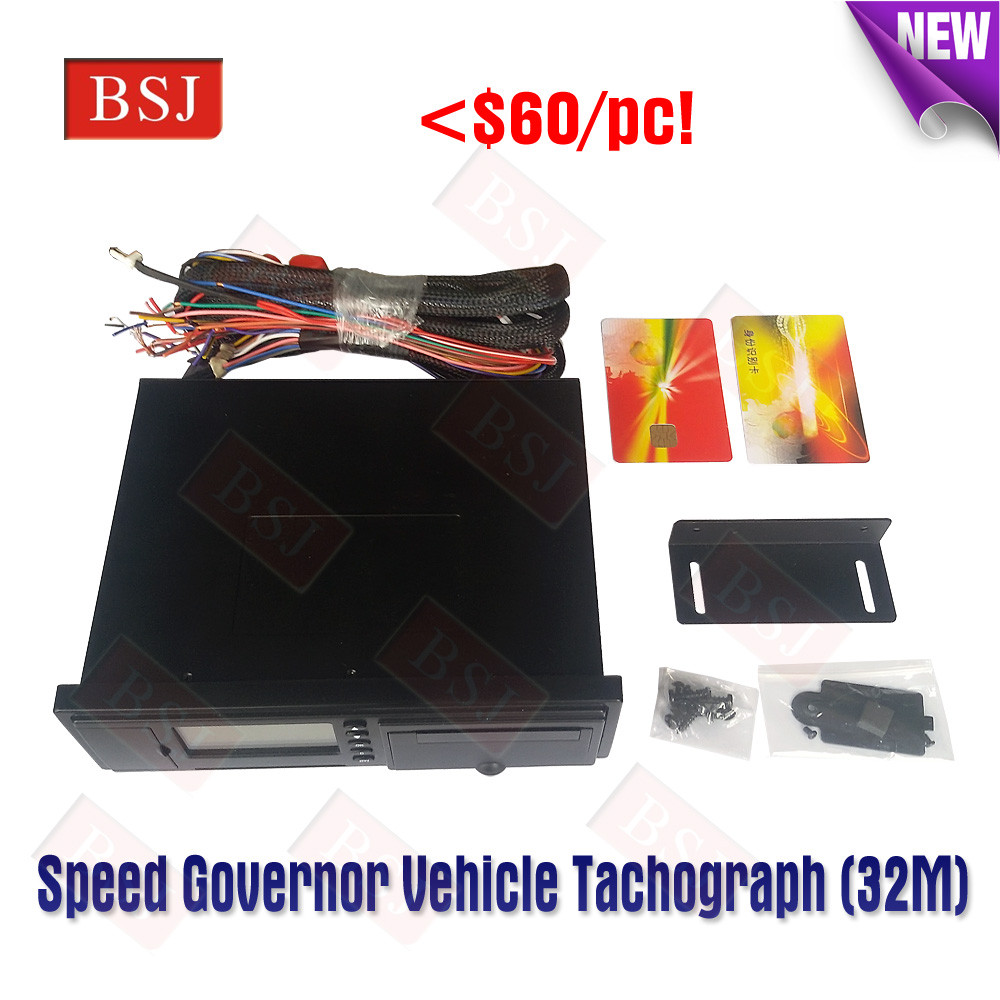

I. Function of tachograph speed limiter (80KPH) with printer (KEBS) A8
1. Self-test function
2. Identity function
3. Recording and storing function for vehicles driving time, speed and mileage
4. Speed alert and recording function
5. Over-time driving (fatigue driving) alarming and recording function
6. Accident doubtful points and record analyzing function
7. Showing printing function
8. Data communications function
9. Management of vehicle information and driver files
II. Quality Service System of tachograph speed limiter (80KPH) with printer (KEBS) A8
1. SQA
2. Design Process Quality Assurance
3. Manufacturing Process Quality Assurance
4. OQC
5. Customer Service Quality Assurance
III. Firmware of tachograph speed limiter (80KPH) with printer (KEBS) A8
1. Boshijie firmware and software programming is configured by our in house team of engineers
2. This team is qualified to develop new firmware for customer's protocol or for newly added functions
3. Boshijie welcomes customer inquiries and challenges for our team of engineers
4. Firmware development includes but not limited to: New firmware (different protocol) development; Modification to current firmware
New function development
IV. Hardware of tachograph speed limiter (80KPH) with printer (KEBS) A8
1. Backed by an R&D team of over 50 engineers, develop new hardware according to customer's requirements as well as further modifications based on our existing products.
2. Hardware design includes but not limited to: PCB Re-layout
New case design
External Device Integration
V. Features and Benefits of tachograph speed limiter (80KPH) with printer (KEBS) A8
Integrated thermal printer
Speed sensor (optional)
English / Chinese menu text (optional)
Additional fleet management features
National regulation and international automotive standards fulfillment
RS232 and USB front connectors
VI. Data recording function of tachograph speed limiter (80KPH) with printer (KEBS) A8
Time: Driver's driving time, break/rest time,
Vehicle speed: Average speed per minute for the last 360 hours
Engine speed: Average speed per minute for the last 360 hours
Accident data: The last 3 records can be locked/unlocked
Fatigue driving events: Driving more than 4 hours without resting at least 20 minutes; Accumulated driving time higher than 8 hours within 24 hours
Over speed events
Events and faults
Special parameters such as the vehicle coefficient characteristic, rpm.
VII. Technical Specifications of tachograph speed limiter (80KPH) with printer (KEBS) A8
Installation dimensions: 190mm з 58mm з 155 mm (w з H з D), 1-DIN radio slot format
Operating voltage: 24 V12 V
Measuring range: 0 to 220 km/h
Operating temperature: 25 А C to +70 А C
Storage temperature: 40 А C to +85 А C
Pulse range: 4, 000 to 25, 000 pulses per km
Clock: Real-time clock
Inputs: Speed sensor, n sensor
Outputs: 2 з V pulse; 1 з 4 pulses/m
Accuracy:
Speed: Б 1 km/h
Distance: 5 km Б 0.1 km
Time: Б 2 s per day
Data keeping time: >5 year (without power)
Protection: IP43
Weight: Approx. 1000 g
Certification: E-mark, CCC (CE, FCC, RoHS upon request)
