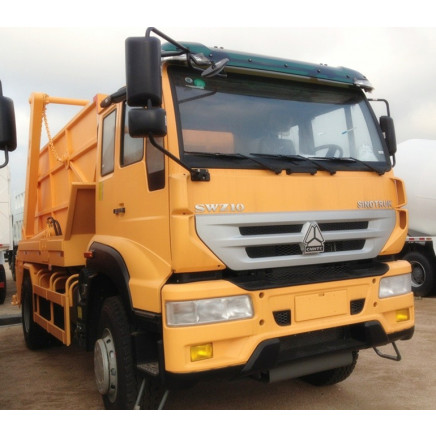

SWZ Arm Type Garbage Truck 8T (ZZ3161M4011W)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 unit

Trade Terms:FOB, CFR, EXW, CIF, DDP, DAP

Payment Terms:L/C, T/T

Model NO.:ZZ3161M4011W

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:ZZ3161M4011W

Type:Garbage Truck

Certification:ISO9000

Volume:10000-20000L

Engine Type:4 Stroke

Payload:8t

Fuel:Diesel

Export Markets:Global

Product Description

The truck is mainly used for the transportation of large garbage boxes in city and towns, waste collection between urban and rural junction, as well as the transportation of all kinds of waste in mines. The truck can also transport ash, sand, stone, soil and other bulk materials, as well as ore or coal in mining area.

The car is characterized by separating cargo from the body, a car can match with more than one bucket, garbage bucket can be hanged from the crane, to achieve a vehicle with a number of co-operation cargo compartment, recycling transportation, to fully enhance the vehicle's transport capacity, especially for short-distance transport, such as the sanitation sector to urban garbage clean-up and transportation.

Elegant in design, big capacity can reach 12m3, large lifting capacity reaches to 10 ton.

The hydraulic system adopts imported seal parts to achieve high reliability.

MAIN SPECIFICATIONS
Model	ZZ3161M4011W	Gross Vehicle Weight	16000kg
Engine	Brand SINOTRUK	Dead Weight	7200kg
	Brand SINOTRUK	Loading Mass	8000kg
	WD615.62 (EuroII)	Body Volume	12m3
Maximum Output	266HP	Cabin	One sleeper A/C
Transmission	HW15710	Radius of Swing Arm	3017mm
Front axle	HF7	Angle of Swing Arm	122Б 1А
Rear axle	HC16
Load Time	? 60
Unload Time	? 50	Rated Pressure of Hydraulic System	21MPa
Discharging Angle	? 85А	Tyre	12.00R20 Radial tyre
Overall Dimension mm		7450X2470X3570
