Swivel Car Seat for Car and Van Loading 120kg

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, CIF, DDP, EXW

Payment Terms:T/T, Paypal, Western Union

Trademark:Xinder

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:S-LIFT-R

Type:Turning Seat

Certification:ISO/Ts 16949

Loading Capacity:120kg

Own Weight:68kg

Color:Cream-Coloured or Black

Suitable for:Van, Minivan, MPV

Packing Size:850*750*1400mm

Lifting Height:300 or 395mm

Export Markets:Global

Additional Info.

Trademark:Xinder

Packing:Wooden Case

Standard:68KG

Origin:Cn

HS Code:87089999

Production Capacity:1000/Year

Product Description

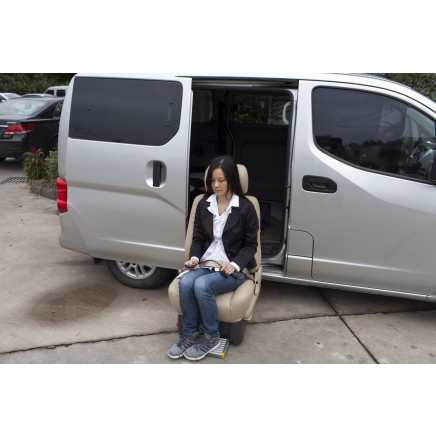

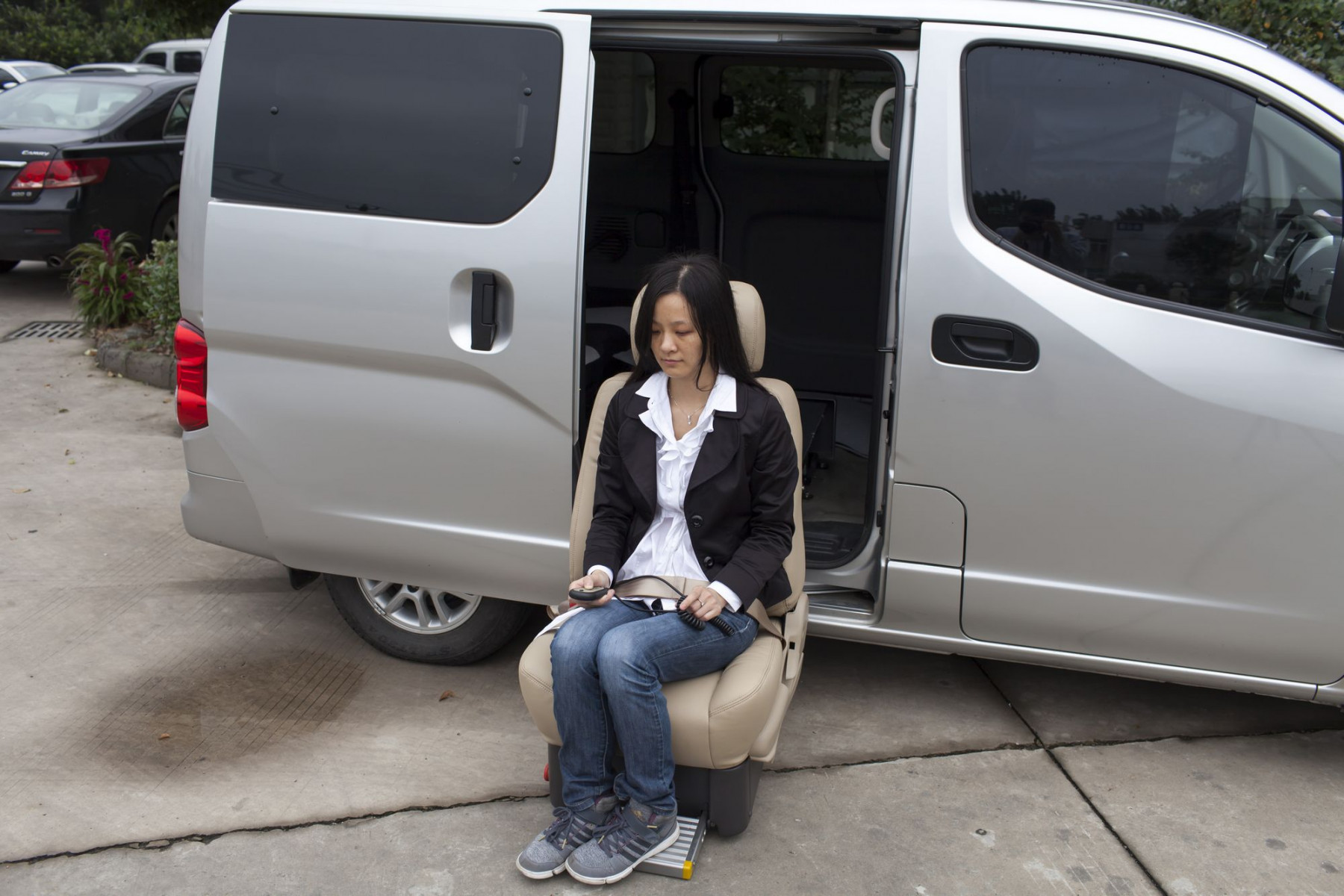

S-LIFT Series turning seat is a kind of equipment to make easy entrance of cars, buses, taxi, ambulance and etc. It can work stable, reliable and safe. Loading capacity can be 120KG.
It is operated by remote control. Turning seat can stop at any position you want by press keys on the remote control.
² Description
Ø This seat makes easy entrance of cars, buses, taxi, ambulance and etc.
Ø Easy operation and reliable function;
Ø It is operated by driver or user;
Ø Working voltage can be 12V or 24V;
Ø Water-proof connectors;
Ø There is warning sound during working;
Ø Working noise is less than 70dB;
Ø Every turning seat has SN which is for track and make after-sales easy;
² Installation
Ø Wholly assembled and easy installation
Ø At the front seat or middle seat of MPV
Ø Put seat 50mm near door, and distance between seat front end and door sheet should be over 280mm
² Application
Ø MPV, van, minivan, SUV;
Ø Handicapped car;
Ø Ambulance;

Technical Function
Ø Volt: 12-24V
Ø Generally, max electricity is 12A (during extending and stowing)
Ø Time for turing: 5s
Ø Time for moving forward: 14s
Ø Time for lowering down: 30s
Ø Time for lifting: 50s
Ø Time for moving backward: 14s;
Ø Testing weight: 150kg;
Ø Safety grade: IP67;
Ø Safety loading capacity: 120kg;
Ø Noise: Less than 70dB;
Ø Rotating angle: 0-120°
Ø Own weight: 68 KG
Ø Operation: Remote control or operating switch

Safety Function
Ø Surface of seat step is anti-skip;
Ø There is warning sound during seat working;
Ø During seat working, if there is some barrier, press any key, working will stop; Press key again, working will start again;
This turning seat has high sensibility;
