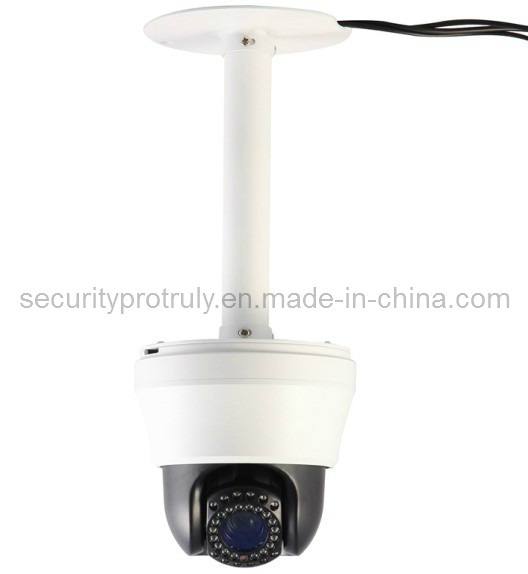

Surveillance Camera IR 35m Mini with CE and FCC Approved (BQL/HeV49-10)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:4 Pieces

Trade Terms:FOB, EXW

Payment Terms:L/C, T/T, Western Union

Trademark:OEM/Protruly

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:BQL/HeV49-10

Technology:Pan / Tilt / Zoom

Style:Mini Camera

Type:PTZ Camera

Sensor:CCD

Horizontal Resolution:540tvl

Kind:Auto/Manual

Feature:Waterproof / Weatherproof, Vandal-proof, WDR, Awb, Mask, Dnr, Strong Light Inhibition, Mirror

IR Distance:35m

OSD:Whole Screen Chinese/English Menu

Lens:Megapixel / 3.8-38mm

Effective Pixel:PAL:752(H)X582(V) NTSC:768(H)X494(V)

Minimum Illumination:0lux, Color to B/W, with IR-Cut Function

Image Sensor:1/4" Sony CCD

Export Markets:Global

Additional Info.

Trademark:OEM/Protruly

Standard:CE, FCC, ROHS, 3C

Origin:China

HS Code:8525801390

Production Capacity:2000PCS /Week

Product Description

Protruly surveillance camera

Hot: Megapixel

Surveillance camera Advantage:
1. It adopts full digital control, mechanical design is simple, Can be arbitrary positioning and continuous tracking scanning, realize smart surveillance of all-round, non-blind spot.
2. It can automatically adapt to the environment and target distance changes in light and dark, High reliability and long-term stable operation, without maintenance.
3. Beautiful appearance, easy to install wiring, and so a number of advantages.

Surveillance camera Application places:
All walks of life indoor large area, moving target surveillance.
Such as: Indoor public system, subway, the telecommunications sector, banking security, office buildings, intelligent buildings, intelligent plot, airports, railway stations and other monitoring.

Surveillance camera Feature:

> Mini high speed dome camera, Metal double cover.
> Use high quality components, high&minute sub-step into TV, long life Conductive slip ring, High-quality belts, Stable operation, high reliability.
> Stable running, none dithering under any speed.
> Cover use high intension Aluminum material, with defend impact, shielding and heat dissipation function, defend levels reach to IP66.
> Internal setting data not lose when electronic cut.
> Triple lightning protection technology, effectively raising the speed dome mine and anti-jamming capability.

Technical program about Sony EFFIO:
EFFIO (Enhanced Features and Fine Image Processor. It has high resolution, high SNR and excellent Color reproduction). It was came into market by Sony. It had four versions: Effio, Effio-E, Effio-P, Effio-S.

Features of Sony EFFIO-E:
1/3 "Sony EX-VIEW HAD II CCD with high-quality and high- sensitivity. Up to 650 tvl of horizontal resolution, high-definition images, excellent low light performance.
A. Range of AWB. Is 1.8 ~ 10K, it can monitor environment with a variety of shine.
B. Digital WDR...Excellent color reproduction (ATR Auto Levels adaptation).
C. 2D DNR...In the case of low light, obtained clean and delicate images.
D. 8 language OSD menu, powerful, high brightness compensation, strong light inhibition.

4" Indoor 35m Infrared mini high speed dome series (H series)
Madel No.	BQL/HeV49-10
Image Sensor	1/4" SONY CCD
Signal Model	PAL/NTSC
Horizontal Resolution	540TVL
Effective Pixel	PAL:752(H)X582(V) NTSC:768(H)X494(V)
Filter	Double filter, IR-CUT
Minimum Illumination	0Lux, Color to B/W
Application Environment	Indoor
Installation way	histing mounted , wall mounted, Ceiling Mount
Housing protection	IP50
S/N Radio	? 50dB ( enhanced )
Backlight Compensation	On/Off
White Balance	Auto
Electronic Shutter	PAL:1/50~1/10000 seconds, NTSC:1/60~1/12000 seconds
IR distance	IR LED 30m
Lens	Megapixel / 3.8-38mm
Optical zoom	10X
Digital zoom	Optional 10X
Focus	Auto/manual , take high-performance DSP to realize complete digital and ultra-high speed focus function.
Preset	255
Pattern scan	4 groups , each can record 200 actions
Tour scan	4 groups ,every group have16 presets can join cruise,can setting the presets'residence time
Other Scan	4 groups, support horizontal scan, deuce area scan, scan random
Rotation Range	Horizontal 360° unlimited rotation , Vertical 180° , auto reversal
Rotation Speed	Horizontal & Vertical Min 0.01°/s, Max 300°/s
Camera protocols	supported SONY or Samsung
Communications	RS485, PELCO D, PELCO P
Baud Rate	2400/4800/9600/19200
Dome address	255
Camera menu	8 languages
OSD	Whole screen Chinese/English menu
Special function	WDR,AWB,MASK,DNR,Strong light inhibition,Mirror
Power Supply	DC12V/1.5A
Material	Aluminum shell
Work Environment	-20 Celsius degree~+50 Celsius degree (select temperature control accessories), < 95%RH
