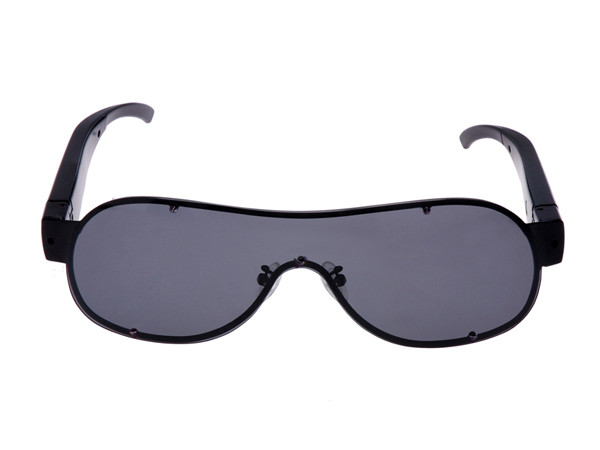

Support TF Card HD Video Recording Camera Glasses with Camera

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
50.0	US $ 30.0-35.0/ Piece

Price:$30.0 - $35.0 / Piece

Trade Terms: FOB, EXW

Payment Terms: L/C, T/T, Western Union, Paypal

Price Valid Time:From Jul 30, 2015 To Oct 28, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:UC-DV800-2

Support:TF Card

The Video Resolution:1920*1080 1280*720

Video Frame Rate:20~30fps

Support System:Windows Me/2000 XP 2003/Vista:M

Battery Capacity:300mAh

Charging Voltage:DC-5V

USB Interface Type:Mini 8pin USB

Video Format:AVI

Export Markets:Global

Additional Info.

Trademark:UCOVER

Packing:Gift Box

Standard:CE/FCC

Origin:Shenzhen

Production Capacity:50000PCS/Month

Product Description

Main Function:
1: the camera hole, 2: TF card, 3: reset hole, 4: USB; 5: the power button, 6: light holes

Feature:

Power on: If without any other operations for 1minutes, it will shut down automatically.
Record video: Long press power button 2 seconds in standby mode, blue light shinning 3 times and go off, it starts recording video.
Slots:USB slots connect to PC or charger to transfer files and charge.
Camera lens: Camera driver installation exe, installed after the camera driver can use the computer camera. Boot after connecting the computer, the machine into the PC Camera (webcam) model, in this mode, you can easily video chat with friend, photo shooting, and so on. USB can enter into web camera function.
Charging: To maximize battery storage capacity per charge, please continue to charge after the indicator light indicating charged 30 to 60 minutes.
working temperature: 0 to 40 ºC
work humidity: 20% to 80%, the product does not have waterproof function.

project	Related parameters
video format	AVI
Video coding	MJPEG
The video resolution	19201080 1280720
video frame rate	20~30fps
Player softwar	The operating system or bring the mainstream video player software
Image format	JPG 4032*3024
Image	5M pix
Image scale	16:9
Support system	Windows me/2000 xp 2003/vista:M
Battery capacity	300mAh
Charging voltage	DC-5V
USB interface type	MINI 8pin USB
Storage support	micro SD card
battery	Type high capacity polymer lithium battery

HD-Galsses camera Specification
First of all thank you for your use of the company's products! Please read this manual before use and proper use of this product. In order to better service, the content of this user manual may be changed. Due to the product performance and function of change, will not do further notice.

A shape,key

Photos are for reference only, please in kind prevail

1: the camera hole, 2: TF card, 3: reset hole, 4: USB; 5: the power button, 6: light holes,

B,Product introduction
This product is the first high-definition digital camera with glasses, TF card memory, to shoot high-definition video, this product is simple, compact, beautiful and practical, easy to carry, is security, education, family life in the fields of essential utilities, favored by the users.
,operating instructions
1. Power on
Long press power button, red and blue lights on. After initialize, blue lights always on. It enters the standby mode. (If without any other operations for 1minutes, it will shut down automatically; If without inserting any memory card, the two lights shinning interchange, after 30 seconds, it shuts down automatically).
2. Power off
If without any other operations for 1minutes in standby mode, it will shut down automatically.
3. Record video
Long press power button 2 seconds in standby mode, blue light shinning 3 times and go off, it starts recording video. Press power button one time again to stop, red light shinning 3 times and save a *.AVI video file. Then shut down.
4. Take photo
Press power button one time in standby to take a 4032*3024 *.JPG photo, blue light go off then on.It will be in standby mode again.
5. Lower battery
If low battery, the two lights shinning interchange 3 seconds, it will save the files and shuts down.
6. Reset
If no reaction, press the reset hole.
7. Slots
USB slot: To connect to PC or charger to transfer files and charge.
TF slot: To insert memory card for saving photo and video files.
8. Camera lens
To shoot the things you want.

9,The mobile disk:
In shutdown state, insert TF card (chart 2), directly to your computer USB interface, the computer will pop up mobile disk, you can also be found in the "my computer" drive "removable disk". When the machine is connected to the computer, the machine as a mobile disk has already started to work for the computer, you can be very convenient with computer view, transmit, copy, delete files. The native video file record for: * disc \ _DCIM \ 100 dscim. Need to uninstall this machine, please click on the lower right corner of the taskbar icon, portable equipment in unloading the removable storage devices, to confirm safe to pull out after the hardware system, and then disconnect the machine with a computer
Note: according to the different computer configuration or system, identify the removable disk will be slightly different, please be patient, had better not to the camera during the period of the operation, so as not to affect computer identification of hardware, if long time did not identify the removable disk, please try to insert, if still can't identify the hardware, please make sure your operating system, drivers, USB interface, connecting line is normal;

10,Computer network camera features:
First you must be installed on your computer included the camera in the cd-rom drive. The included disc into your computer drive, run disc STK03N. Camera driver installation exe, installed after the camera driver can use the computer camera. Boot after connecting the computer, the machine into the PC Camera (webcam) model, in this mode, you can easily video chat with friend, photo shooting, and so on. Open the webcam picture: double-click my computer?
Note: this confidential under the boot state (or no card) connecting USB can enter into web camera function.
11,Charging:
Use of the machine is equipped with the charger, or directly connect the computer USB interface, can be to charge of the machine, when the batteries are in a state of charging, the red light flashing, after a full charge, long red light. Note: the camera built-in high-capacity polymer lithium battery, no memory effect, can be in charge, but the original five times before use, please put the battery recharging after using it to saturation, to activate the battery capacity, for standard working hours. To maximize battery storage capacity per charge, please continue to charge after the indicator light indicating charged 30 to 60 minutes.
12,Time changes:
Camera provides shows the time in the video file video function, you can according to the actual needs, set up time, time format for years. Month. Day: points: seconds. Set as follows, connected to the computer, find the mobile disk, the disk space right click the mouse moved to the "new" on the popup menu - > "a text document" to the document named "time" (the letter must be lowercase), its extension ". TXT ". You can also on the desktop, in accordance with the method described above to build such a folder and then copy to disk folder. Open the folder time, setup time format, such as: 2000.01.01 00:00:00, year, month, day, and when, minutes and seconds between separated by Spaces. And then save. Save the file after the safety exit hardware, boot, complete set. Time set up after the video file of the time just with you to set the time between one. Note: after the time set, must to come into force after the phone is switched on. Native disc modified tools, there is a TIME of TIME in the machine to a computer, first appeared after the USB double-click the batch file (TIME. Bat).

13, exception handling:
Boot blue lights flashing. Insert the card is good, or the card is damaged.
Camera is accidentally improper operation or other special reasons to stop response, please press the reset button and restart again after use.
Can't boot, if there is a battery, please charge; Press reset (chart 3), turn the power off and restart.
Don't video: card whether good or damaged.
Don't al computer: please make sure your operating system, drivers, USB interface, connecting line is all.
Disk space capacity, TF card is good or damaged.
C,Related parameters

project	Related parameters
video format	AVI
Video coding	MJPEG
The video resolution	19201080 1280720
video frame rate	20~30fps
Player softwar	The operating system or bring the mainstream video player software
Image format	JPG 4032*3024
Image	5M pix
Image scale	16:9
Support system	Windows me/2000 xp 2003/vista:M
Battery capacity	300mAh
Charging voltage	DC-5V
USB interface type	MINI 8pin USB
Storage support	micro SD card
battery	Type high capacity polymer lithium battery

Specifications may change, upgrade, update, please in kind prevail
D,, the matters needing attention
set usage scenarios: please strictly abide by the relevant national laws, this product may not be used for any illegal purpose, otherwise the consequence is proud.
about battery: as the growth of the use of time, the battery working time is shortened, the unused for a long time, please charge before use.
player slightly less than the nominal capacity, the actual capacity is a normal phenomenon.
file security: non-professional storage devices, this product does not guarantee that the integrity and security of the internal storage file, real-time on the computer or other storage device, please backup your important files.
video quality: this product is non-professional video equipment, does not guarantee that the effect of the video file can meet your expectations.
working temperature: 0 to 40 ºC
work humidity: 20% to 80%, do not put product in damp working environment, the product does not have waterproof function.
shooting illumination: please use under the environment of the light is enough, please don't please camera directly to the strong light sources such as solar, lest damage optical device.
cleaning requirements: do not use under the environment of the dust density is too large, so as to avoid the lens and other components from dust, effect the camera, the lens can be used to wipe the mirror paper or glasses cloth to wipe gently, clean.
other matters: this product belongs to precision electronic products, please do not make its strong shock, vibration, do not in strong magnetic field, the high voltage field use.
waste processing: please pay attention to environmental protection, do not throw this product. Forbid throwing this product in a fire, so as to avoid explosion.
added: other unknown matters, please contact the local dealer.
