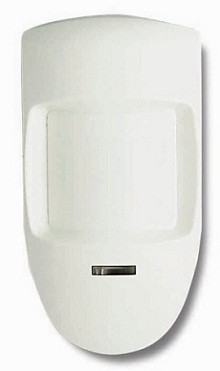

Superior Rfi, EMI, ESD Detector Orion (EL-55/EL-55C)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:20 Pieces

Trade Terms:FOB, CIF, EXW

Payment Terms:L/C, T/T, Paypal, Money Gram, Western Union

Trademark:EL

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:EL-55/EL-55C

Type:Sensor

Usage:PIR Sensor

Installation Mode:Contact Type

Certification:CE

Application:Home, Industry, Special Equipment

Shipment:DHL, UPS, FedEx..

Service:OEM&ODM

Delivery:Fast

Color:Like The Picture Show

Export Markets:Global

Additional Info.

Trademark:EL

Packing:CTN

Standard:CE

Origin:China

HS Code:8531100000

Production Capacity:50000PCS/Year

Product Description

Introduction

With an aesthetic curvilinear design, the Orion series of detectors offers excellent detection with advanced features. Available with an adjustable built-in microphone for alarm verification, superior RFI, EMI, ESD and lightning protection, adaptive temperature compensation as well as standard, curtain and long range lens options.

EL-55 Maximum Range: 14m x 14m
EL-55C Maximum Range: 1m x 14m
Analog signal processing
PIR detector
Temperature compensation
Dual element
Superior RFI, EMI, ESD and lightning protection
Thermal optic stabilization cavity
Technology: PIR technology
Pyroelectric Sensor Type: Dual element
Current Consumption in Standby: 15mA @ 12V
Current Consumption in Alarm: 17mA @ 16V
Power Supply: 9-16VDC
Pulse Count: 1, 2 or 3 selectable
RFI Immunity: 30V/m up to 1GHz
Operating Temperature: -10° To 60° C
Temperature compensation: Analog
Reverse Polarity Protection: Diode
LED indicator: Selectable
Dimensions: 11.4x 6 x 5cm
MB2 Support: Yes
LENS options: Standard/ Curtain/ Long range
Relay Parameters: N. C Dry contacts Switching 30Vdc, 0.1A max
