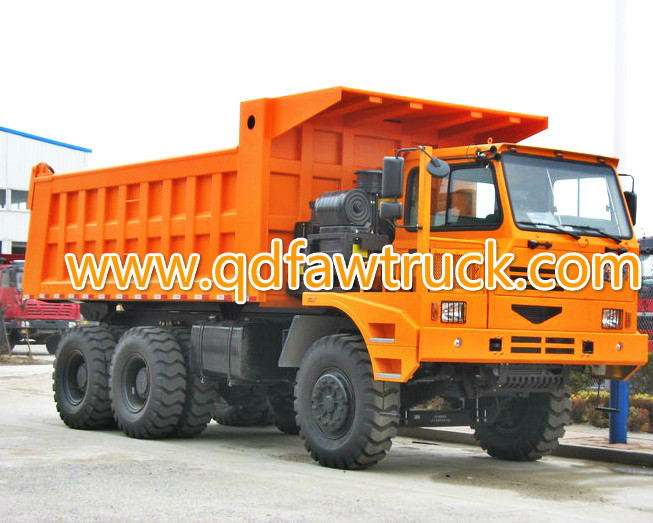

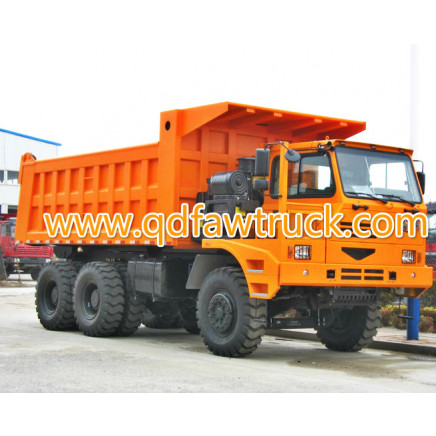

Strong FAW 60 Tons Mining Dump Truck (CA3606P7K2T1A)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 89000.0-125000.0/ Piece

Price:$89000.0 - $125000.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Oct 17, 2014 To Jan 31, 2016

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CA3606P7K2T1A

Transmission Type:Manual

Power:Diesel

Load Capacity:61-70t

Emission Standard:Euro 2

Drive Wheel:6×4

Engine Capacity:?8L

Seats:?5

Horsepower:451-500hp

Tire Type:Inner Tube

Tire Certification:ISO

Tire Design:Radial

Dumping Type:Front Lifting Style

Condition:New

Truck Type:Dump Truck

Type:Mining Truck

Cabin:Single Seat

Brand:Faw

Driving:6X4

Capacity:60-70tons

Export Markets:South America, Southeast Asia, Africa, Mid East, Eastern Asia

Additional Info.

Trademark:FAW

Packing:Nude Packing

Standard:ISO

Origin:China

HS Code:8704230090

Production Capacity:10PCS/Month

Product Description

FAW 60-70 tons Minning Dump Truck
Traction type: 6X4
Driving type: LHD (RHD is option)
Cabin: Single cab(Air conditioning)

Engine
Engine brand: XICHAI/ YUCHAI
Engine model: CA6DM2 460HP, YC6MK460L-t20 EURO II
Engine type: 6-cylinder in line, 4-stroke, water-cooled, turbocharged, air-to-air intercooled, direct injection.
Displacement: 11.726 liters
Max. Output: 460HP@2200rpm/ 460HP
Max torque: 2350NM@1100-1600rpm / 2350NM
Specific fuel consumption: 213G/Kwh

Gear box
Gear box: FULLER 9JSD240B

Clutch: GF430J spiral spring
Steering: ZJ120, hydraulic steering with power assistance.

Tyre
Tyre: 14.00-24
No. Of tyre: 10+1spare

Front axle: STEYR Strengthened wide welded box stiff front shaft
Rear axle: Strengthened wide steel two-grade reducing and double tires drive axle
Fuel tank capacity (L): 400
Max. Speed (km/h): 73
Kerb. Mass: 10500kg
Total mass: 50000kg
Wheel base (mm): 3650+1560
Front overhang (mm): 1500
Rear overhang (mm): 1000
Front track (mm): 2400
Rear track (mm): 2200
Approach angle: 29 degree
Departure angle: 34.5 degree
Dimension (mm): 9540*3520*3800

Body:
Inner size(mm): 5950*3310*1750 Capacity: 35CBM
Thickness of body steel(mm): Floor16mm side & back 10 mm.
Dump Truck, Tipper, Mining Dump Truck, Dump Tipper, Heavy Truck, Steyr Dump Truck, Tipper Truck.

What's the brand of your truck?

A: Our brand is FAW, First Automobile Works is the biggest truck manufacture in China, our products cover all series such as tractor truck, tipper truck, cargo truck, and other special trucks.

Q: How can we trust your company?

A: We are the official authority company by FAW Qingdao Automobile Company. And we are registered in the Commercial Department of China, with the whole qualification for exporting, you would feel relax and safe to do business with us. We are your reliable partner.

Q: Can u provide the ISO9001 certificate or some others related?

A: Yes. We have been exporting trucks for years. Rich experience for exporting to different countries, African market, Russia, South America, this help us better know have to handle with different certificates needed.

Q: How about warranty item?

A: We could support u original spare parts. And also email or telephone assist in the following days. If necessary, for large quantity ordered, our engineer could go for technical assist.

TRUCK SPECS	Overall dimension:		954035203800mm
	Cabin	Cabin size:	Single seat cabin
	Cabin	Air conditioner:	standard
	Engine	Horsepower(hp):	390 420 460
		Tech:	steyr tech,WD615,FAW XICHAI, YUCHAI
		Engine Type:	6-cylinder in line, 4-stroke, water-cooled,turbocharged, intercooled
		Steering:	ZJ120
		Emission Standard:	EUR 2
		Fuel Type:	Diesel
		Max Torque:	2350N.m
		Engine Capacity(ml):	11726
	Gear Box/Transmission		9 speeds and 2 reverse speeds
	steering:		ZJ120 hyraulic steering with power assistance
	Clutch		?430
	Axles	Front Axles:	19T
	Axles	Driving Axles:	2x35T
	Tyre:		14.00-24-24 mining tyre
	Max speed:		55km/h
	Tare weight(MT):		22MT
BODY SPECS	Body Dimensions (LengthXWidthXHeight):		595033101750
	Body steel (mm):	Q235	floor 16mm,side 10mm
	Cpacibility(M3):		35CBM
	Lift System:		Front hydraulic system with power assistance
	Wheel base:		3650+1560mm
	Track Width(front/rear):		Front 2368, Rear 2252
	Overhang(front/rear):		1500/1870mm(7.55x6.14ft)
	Approach/Departure Angle:		35°/42°
