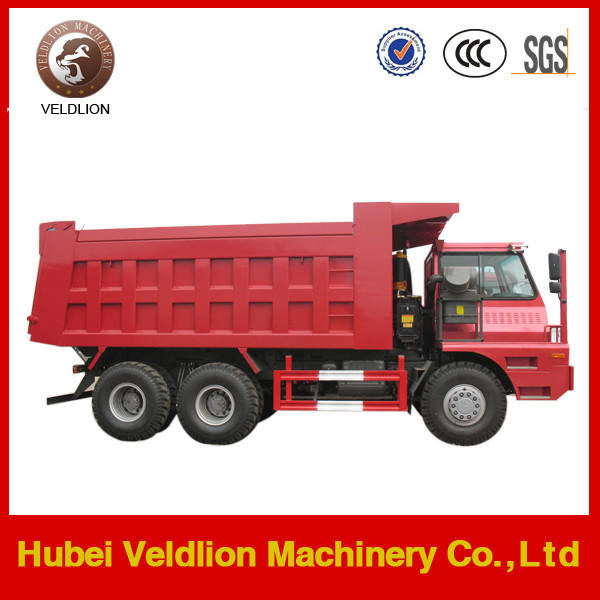

Steyr King 6X4 50t Mining Dump Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 45000.0-49000.0/ Piece

Price:$45000.0 - $49000.0 / Piece

Trade Terms: FOB, CIF, FCA, EXW

Payment Terms: L/C, T/T

Price Valid Time:From Aug 12, 2015 To Nov 12, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:VL3257

Transmission Type:Manual

Power:Diesel

Load Capacity:21-30t

Emission Standard:Euro 3

Drive Wheel:6в4

Engine Capacity:6-8L

Seats:?5

Horsepower:251-350hp

Tire Type:Solid Tire

Tire Certification:ISO

Tire Design:Radial

Dumping Type:Front Lifting Style

Condition:New

Fuel:Diesel

Certification:ISO9000, CCC

Engine Type:4 Stroke

Volume:10000-20000L

Type:Dump Truck

Payload:25t

Export Markets:Global

Additional Info.

Trademark:VELDLION

Packing:Nude Packing or Roro Ship

Standard:CCC &ISO9001&CE

Origin:China

HS Code:8716311000

Production Capacity:200

Product Description

Specifications HOWO dump truck 6*4
HOWO dump truck 6*4
Hydraulic cylinder truck
High-strength plates
Low fuel consumption, low pullotion, high safety

Characteristic HOWO dump truck 6*4
1. HOWO 7 series heavy-duty truck has fine and splendide appearance, word top-class cabs, and brand-new power system.
2. Multiple security and reliability represent it's leading position in heay-duty truck industry in China. 3. The tank body uses the latest design concept, the whole body adopts the lightweight structure and streamlined design, and is made of pollution, and high safety.
4. Equipped with Hayward hydraulic system it is the latest product with the features of value for money and security and reliability in recent times.

Basic information
Overall Dimension	8860 x 2496 x 3120mm(LWH)
Payload	30ton	Curb Weight	12090kg
Front Overhang	1500mm	Rear Overhang	1870mm
Wheelbase	3825mm +1350mm
Chassis specifications
Chassis Brand	SINOTRUK HOWO DUMP TRUCK
Driving Type	6x4
Cab	HW76, left hand drive, air-conditioner, one bed
Engine specifications
Engine	Make: SINOTRUK DUMP TRUCK
	Diesel: 4-stroke direct injection diesel engine
	WD615.69 336HP ,Euro II emission standard
	4-stroke direct injection diesel engine
	6-cylinder in-line with water cooling, turbo-charging and intercooling
	Maximum output: 336HP(247KW) at 2200rmp
	Displacement: 9.726L
Steering	ZF8098, German hydraulic steering with power assistance
Transmission	HW15710, 10 forward speeds and 2 reverse
Clutch	Model: 430, diaphragm clutch
Front Axle	HF9, load capacity 9 ton, drum brake
Rear Axle	HC16 tandem axle, load capacity 13000kg x2, ratio 5.73
Tire	12.00-20, 11units including 1 spare tire
Inside Dimension	5600mm2300mm1500mm(LWH)
Hydraulic Cylinder	Ventral T-type lift system
Steel sheet thickness	Floor 8mm, side wall 6mm
