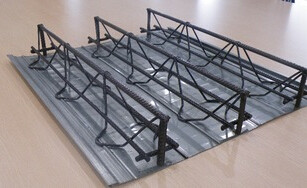

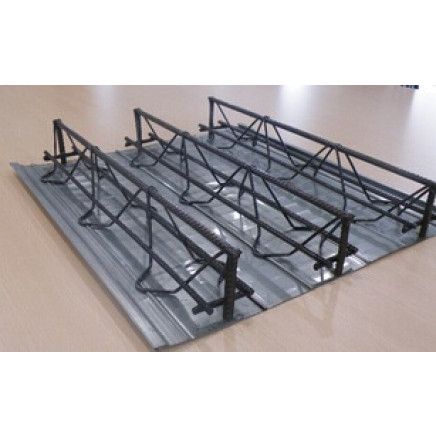

Steel Deck with Reinforced Steel Truss/ Steel Truss Deck/Metal Decking Sheet

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$14.0 - $35.0 / Square Meter

Min. Order (Square Meters)	Unit Price
1000.0	US $ 14.0-35.0/ Square Meter

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Jun 24, 2014 To Dec 31, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Description

Details

Basic Info.

Material:Steel Structure

Usage:Warehouse, Villa, Dormitories, Temporary Offices, Workshop

Certification:ISO, CE, BV

Export Markets:Global

Additional Info.

Trademark:Shengxin JKS

Packing:Packing by Bundle or as Customer Require

Standard:SGS BV

Origin:Xiamen, China

Production Capacity:10000meter/Month

Product Description

Steel bar truss decking is a composite of corrugated sheet and steel bar truss which replace wooden template to bear all the comstruction loads in the construction phase and participate in bearing structure load in the service stage. Composite deck is floor deck which replace all or part of the force steel bar and work together with concrete to in service stage, whilt steel sheet of steel truss deck does not participate in bearing structure load, it, s non-composite deck.

Effective width: 576mm
Maximum length: 1m-11.8m steel truss deck sheet height: 100mm-300mm
Steel truss height: 70mm-270mm
Top and bottom bar diamerer: "6mm-12mm
Brace bar diameter: 4mm-12mm
Decking thickness: Galvanized steel sheet 0.5mm, 0.75mm

Application area: Large board structure, Multi-layer buildings, slab of reinforced concrete structures
Lower board structure leaning roofing, Housing steel structure

Advantages: Economy: The mode of truss is reasonable with low price and has an obvious
Advantage in this area; Can be designed as double-sides deck.
Convenient: Shorten the project comstruction time, reduce temporaty support.
Security: Good performance of cracking resistance and fire resistance;
Reliability: Good property to prevent earthquake.
