Description

Details

Basic Info.

Model NO.:LKYV

Material:Stainless Steel 302, 304, 316, 410

Type:Hexagon Head

Connection:Common Bolt

Head Style:Hexagonal

Standard:DIN, ANSI, GB, JIS

Grade:A2-70, A4-70

Application:Machinery

Finish:Passivated

Sample:Free

Export Markets:Global

Additional Info.

Trademark:LK

Packing:Bulk Packing, Small box packing

Standard:DIN, ANSI, ISO and Non-Standard

Origin:China

HS Code:7318150000

Production Capacity:500 Ton Per Month

Product Description

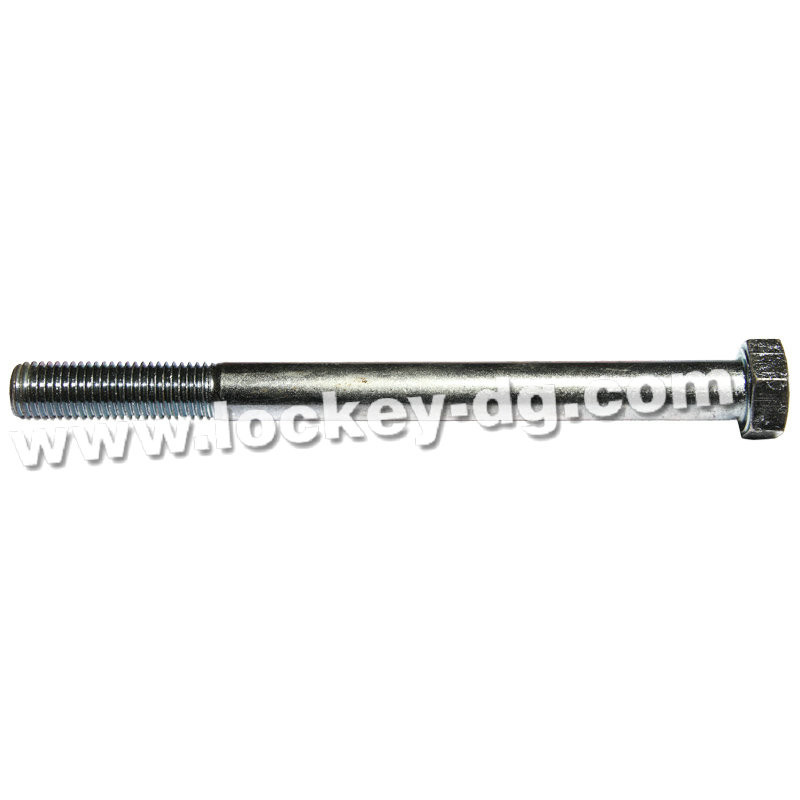

Stainless Steel Hex Bolt Stainless Steel Hex Screw Stainless Steel Cap Screw
1> Description: Stainless Steel Hex Bolt Stainless Steel Hex Screw Stainless Steel Cap Screw
2> Material: Stainless Steel
3> Surface: Passivated
4> Size: M5(3/16") upto M24(1")
5> Length: Up to 500mm

Lockey Industrial Produce the bolt include, but not only,
Hex. Bolt,
Square Bolt,
Carriage Bolt,
Cap Screw,
Flange Screw(Bolts),
Hex. Socket Head Shoulder Screw,
Wheel Bolts,
Step Bolt,
Thread rod,
Stud bolt,
T Head Bolts,
T. C Bolts,
Toggle bolts...

According to DIN, IFI...JIS Standard and drawings.
Quotation will be sent shortly after getting your inquiry.

Technical Delivery Conditions
Material		Steel	Stainless steel		Non-ferrous metal
General requirements		As specified in DIN 267 part 1
Thread	Tolerance	6g
	Standard	DIN13 Part 12 & 15
Mechanical properties	Property class	5.6 8.8 10.9	?M20	A2-70	Subject to agreement
				A4-70
			>M20	A2-50
				A4-50
				C3,C4
	Standard	ISO 898 Part 1	DIN267 Part 11		DIN267 Part 18
Limit deviations geometrical tolerance	Product grade	A for product up to size M24 and L?10d or 150mm B for product exceeding size M24 or L>10d or 150mm

	Standard	ISO 4759 Part 1
Surface finish		As processed Property class 8.8 and above: Blackened	Bright		Bright




		DIN267 Part 2 shall apply with regard to surface roughness
		DIN267 Part 19 shall apply with regard to permissible surface discontinuities
		DIN267 Part 9 shall apply with regard to electropiating
		DIN267 Part 10 shall apply with regard to hot dip galvanizing
Acceptance inspection		DIN267 Part 5 shall apply with regard to acceptance inspection
