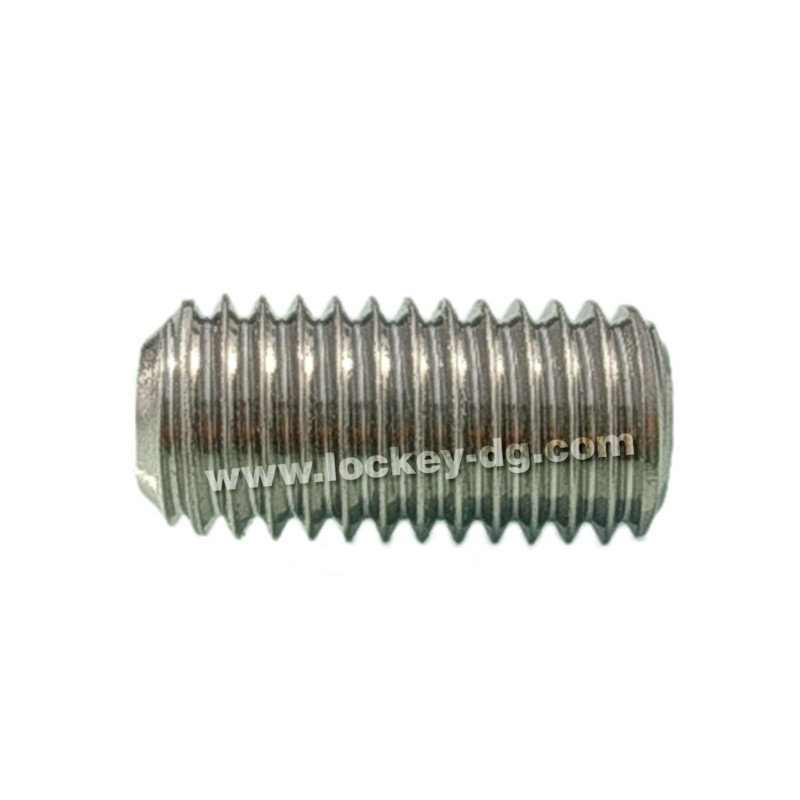

Stainless Steel Grub Screw DIN913

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$0.05 - $0.06 / Piece

Min. Order (Pieces)	Unit Price
20000.0	US $ 0.06/ Piece
100000.0	US $ 0.05/ Piece

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: L/C, T/T

Price Valid Time:From Mar 19, 2015 To Jun 19, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:LKWU

Material:Stainless Steel

Type:Headless

Groove:Hex Socket Head

Connection:Common Bolt

Head Style:No

Standard:DIN, GB, ANSI, JIS

Grade:A2-70, A4-70

Market:Global

Sample:Free (If in Store)

Additional Info.

Trademark:LK

Packing:Bulk Packing, Small Box

Standard:DIN, ANSI, ISO and Non-Standard

Origin:China

HS Code:7318

Production Capacity:500 Ton/Month

Product Description

Stainless Steel Grub Screw DIN913
1> Description: Stainless Steel Grub Screw DIN913
2> Material: Carbon Steel, Stainless Steel
3> Surface: Zinc Plated, Painted.......Passicvated
4> Size: M3 (#10) to 20mm (7/8")
5> Length: Up to 150mm (6 Inch)
6> Head style: Headless
7> Drive size: Hex Socket Head
8> Packing: Bulk packing, box packing & to customer's requested.

The Grub screw/ set screw include
DIN913 Hex. Socket Set Screw/grub screw with Flat point
DIN914 Hex. Socket Set Screw/grub srew with Cone Point
DIN915 Hex. Socket Set Screw/grub screw with Dog Point
DIN916 Hex. Socket Set Screw/grub screw With Cup Point

Please feel free to contact us if you are interesting our products. We are strongly believe will guarantee you the best quality and service for our more than 30 years professional experience.

Technical Delivery Conditions
Material		Steel	Stainless steel		Non-ferrous metal
General requirements		As specified in DIN 267 part 1
Thread	Tolerance	5g / 6g
	Standard	DIN13 Part 12 & 15
Mechanical properties	Property class	45H	?M20	A2-70	Subject to agreement
				A4-70
			>M20	A2-50
				A4-50
	Standard	ISO 898 Part 1	ISO 3605, DIN267 Part 11		DIN267 Part 18
Limit deviations geometrical tolerance	Product grade	A

	Standard	ISO 4759 Part 1
Surface finish		Black Oxide	Bright		Bright
		DIN267 Part 2 shall apply with regard to surface roughness
		DIN267 Part 9 shall apply with regard to electropiating
Acceptance inspection		DIN267 Part 5 shall apply with regard to acceptance inspection
