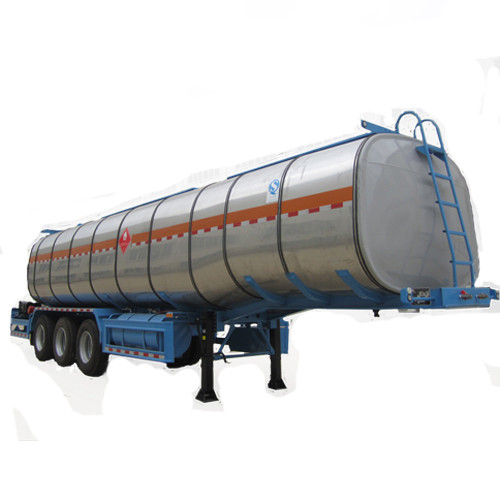

Stainless Steel Chemical Liquid Oil Tanker Semi Trailer

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, CFR, CIF, EXW

Payment Terms:L/C, T/T, Paypal, Money Gram, Western Union

Trademark:Jupiter

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:FTW9552TJZG

Type:Towing Pin

Towing Pin Material:Carbon Steel

Impeller Type:Closed Type

Hook Type:Single

Universal Joint Type:Flexible Universal Joint

Brake Pad Material:Ceramic

Towing Pin Type:Mushroom Type

Towing Pin Diameter:50mm

Differential Gear Type:Gear Type

Independent Suspension Type:Trailing Arm Type

Volume:36m3 or as Your Request

Colour:as Your Request

Item:Stainless Steel Oil Tanker

Export Markets:South America, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia

Additional Info.

Trademark:Jupiter

Packing:Nude or as Customer?s Requirement

Standard:CE, SGS, ISO, GMP

Origin:China

HS Code:87163910

Production Capacity:1000 PCS Per Year

Product Description

Stainless Steel Chemical Liquid Oil Tanker Semi Trailer

1) Manufacturer, more than 20years professional experience.
2) CCC, SGS and ISO9001 certificate, one year guarantee term provided.
3) Any colors and logos will be available.
4) Products can be custom-made according to your design.

Dimensions: 12000*2500*3900mm
Tare Weight: 9500kg

STANDARD SPECIFICATION OF THE STAINLESS STEEL OIL TANKER

Main Frame of the stainless steel oil tanker: Heavy duty and extra durability designed, opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes.

1)Thickness:
Our common type is 5mm, but you can have your own thickness.

2)Axle
Three Units German or American Style axle

3)Suspension
A couple of FUWA(Brand) mechanical 3-axle suspension, other brands are available.

4)Leaf Spring
Six sets of reliable local brand, 7 pieces leaf spring, 16X90mm, or we follow your requirements

5) King Pin
One unit of 2 Inch standard welded kingpin

6) Landing Gear
Two-speed, manually operating, heavy duty landing leg

7)Wheel Rim
Thirteen units of 8.25*22.5 rim or as your request

8)Tyre
Thirteen units of 11R22.5 Tubeless tyre or as your request

9)ABS
Yes

10)Spare Wheel Carrier
One set of spare wheel carrier including a riser.

11)Pneumatic Braking System
Two unit of WABCO RE 6 relay valve; Four units of T30/30 spring brake chamber; Two units of T30 brake chamber, Two unit of reliable local brand 40L air tank; Two units of reliable local brand standard coppery air-connector.

12)Electrical System
One unit of JAEGER POWAY, 24V 7-pin ISO 1185 socket; Tail lamp with turn signal, brake light & reflector, side lamp etc.
One set of 6-pin standard Cable.

13)Painting Sand blasting processing clean rust
1. Coat of anticorrosive primer
2. Coats of finish urethane paint
3. Color as customer choice

14)Accessory
One tooling box with whole set of standard trailer tool

15)Pictures as below to refer

Professional Oil Tanker Manufacturer, welcome to contact us!
