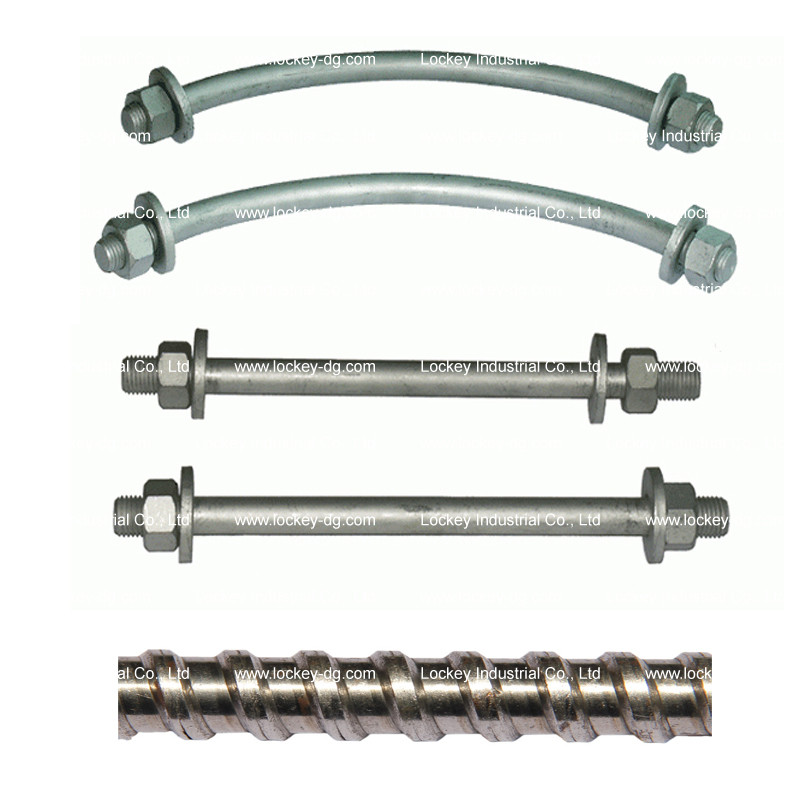

Stainless Steel / Alloy Steel / Steel Stud Bolt Thread Rod

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$0.04 - $0.05 / Piece

Min. Order (Pieces)	Unit Price
1000.0	US $ 0.05/ Piece
100000.0	US $ 0.04/ Piece

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: L/C, T/T

Price Valid Time:From Mar 11, 2015 To Jun 10, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:LKJS

Material:Stainless Steel, Alloy Steel, Steel, Brass

Surface Finishing:Plain, Zinc, HDG... Passivated

Grade:Class 6.8, 8.8, 10.9, Grade 2, 5, 8; B7, B7m...

Certification:ISO

Customized:Customized

Market:Global

Sample:Free (If in Store)

Additional Info.

Trademark:LK

Packing:Bulk Packing, Small Box Packing

Standard:DIN, ANSI, ISO and Non-Standard

Origin:China

HS Code:7318

Production Capacity:1000 Ton Per Month

Product Description

Stainless Steel / Alloy Steel / Steel Stud Bolt Thread Rod
1> Description: Stainless Steel / Alloy Steel / Steel Stud Bolt Thread Rod
2> Material: Alloy Steel / Steel
3> Surface: Plain, Zinc, HDG...
4> Size: M5(3/16") upto M48(2")
5> Length: Up to 1000mm
6> Mechanical Properties: Class 6.8, 8.8, 10.9, Grade 2, 5, 8; B7, B7M...
7> Packing: Bulk packing, box packing & to customer's requested then in pallet.
Stainless Steel / Alloy Steel / Steel Stud Bolt Thread Rod

We main produce and export the Stud Bolt per IFI, DIN, ISO standard...And some special ones per the drawing of the client.

Technical Delivery Conditions
Material		Steel	Stainless steel		Non-ferrous metal
General requirements		As specified in DIN 267 part 1
Thread	Tolerance	6g
	Standard	DIN13 Part 12 & 15
Mechanical properties	Property class	5.6 8.8 10.9	?M20	A2-70	CuZn
				A4-70
			>M20	A2-50
				A4-50
				C3,C4
	Standard	ISO 898 Part 1	DIN267 Part 11		DIN267 Part 18
Limit deviations geometrical tolerance	Product grade	A

	Standard	ISO 4759 Part 1
Surface finish		DIN267 Part 2 shall apply with regard to surface roughness
		DIN267 Part 19 shall apply with regard to permissible surface discontinuities
		DIN267 Part 9 shall apply with regard to electropiating
		DIN267 Part 10 shall apply with regard to hot dip galvanizing
Acceptance inspection		DIN267 Part 5 shall apply with regard to acceptance inspection

We are looking forward to hear from you if you are interesting in our products.
