Overview:

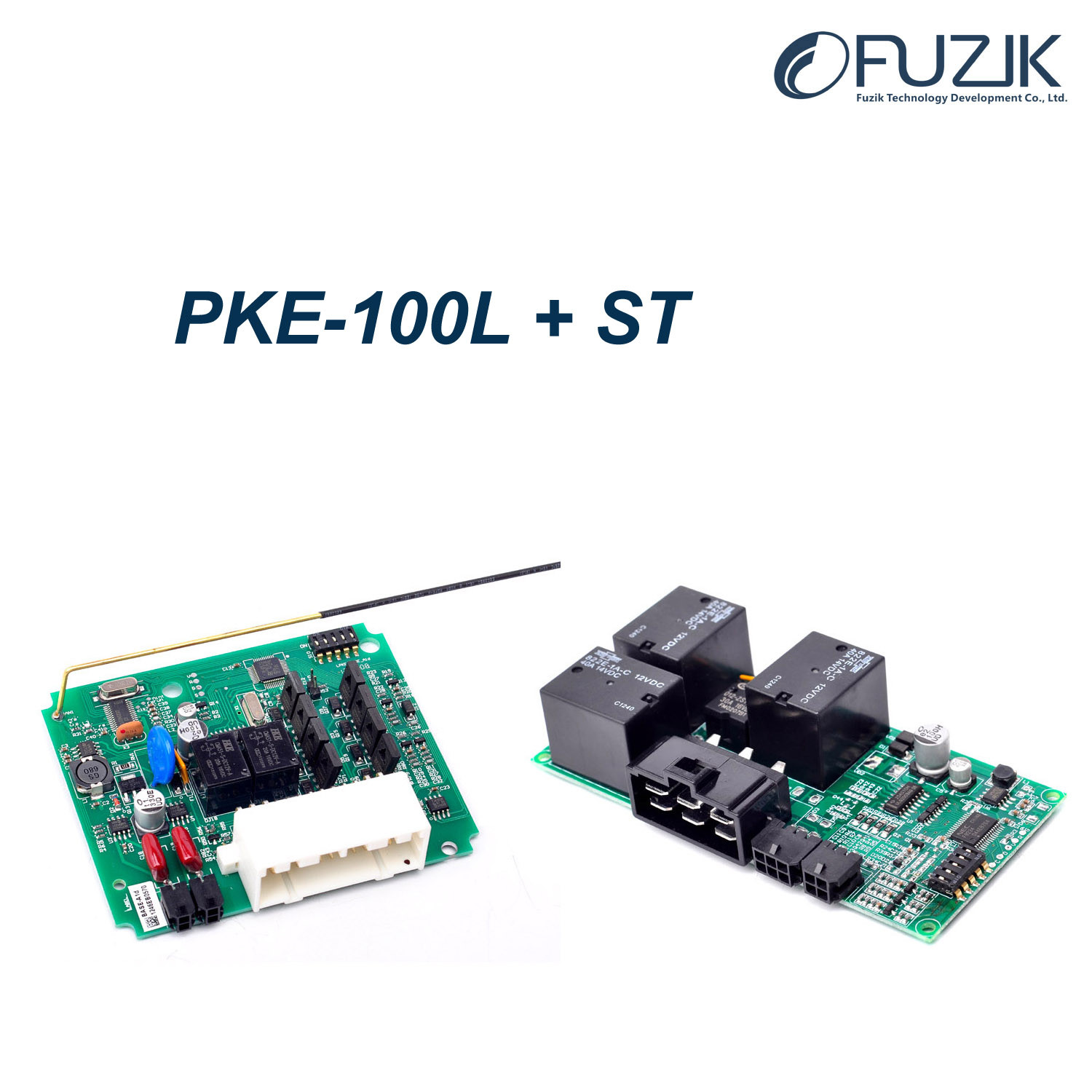

Fuzik PKE-100L+ST Smart Push & Remote Start Keyless Go System is designed for wide range car models. The whole kit is composited with PKE-100L Security PKE System and ST Start Controller. With assistance of the whole system, you just need to put the smart key inside your pocket, including entering, starting, stopping and leaving, all the procedures make you experience hand free life, realize "My Car Knows Me" and "Say Goodbye to Inserting Key".
Automotive qualified components:
Advantages & Features:
* 3D antenna professional design for UHF/LF
* Automotive qualified connectors, cables and chips
* Super low-power design
* RFID anti-collision tech
* FHSS high security
* Over loading protection
* High power (current) drivable
* Dual MCU controller
* Emergency entry and start policy
Electric Parameters:
Keyless Entry unit parameter:
Working voltage:DC 9V-16V
Main unit static current:< 12mA
Smart key response distance:2.0M < distance < 2.5M
UHF frequency:315MHz / 433.92MHz
LF frequency:25KHz
Remote distance:Open space > 40M
Working temperature:-40'C-105'C
Working humidity:< 95%
Start Controller parameter:
Working voltage:DC 9V-16V
Static current:< 5mA
Max. control current:30A
Start output time:0.6S < time < 4S
Auto cutoff time:15min
Working temperature:-40'C-105'C
Working humidity:< 95%
Remote key parameter:
Working voltage:DC 2.1V-3.6V
Static current:< 12?A
Working frequency:25KHz / 433.92MHz
Battery model:CR2032
Working temperature:-25'C-80'C
Working humidity:< 95%
Battery life:> 16 months (average)
Specifications & Functions:
> Passive Keyless Lock/Unlock Functions
> Remote Lock/Unlock
> Anti-hijacking
> Search Car
> Release Smart Key (Exhibition Mode)
> Low Battery Warning
> Saving Power Mode
> Smart Keys Switching
> Auto Window-Up (Changes according to car's specifications; realized by relays)
* Window Closer (optional) is recommended to replace relays for less installation labor.
> Push Start/Stop Engine
> Remote Start/Stop Engine
> Morse Decoder Unlock and Start Engine
Components:
Main unit x1
Main cable x1
Start controller x1
Start cable x1
Start button x1
Communication cable x1
Smart key x2
Antenna x2
Diode x4
Relay x3
Morse decoder x1 (optional)
IMMO bypass module x1 (optional)
Key accessories kit x1 (optional)
* Including blank key, keyhole cover, key pin
Specialization:
Specialized Start Cable
Specialized panel & button
Specialized blank key
Related Download:
Diagram (For simple learning only. The detailed connections & installations are according to car's specifications.)
For more downloads, please go to Download Page.
Vehicle Coverage:
This product is widely compatible for world car models. General Speaking it can match:
Over 90% korean cars
Over 85% japanese cars
Over 35% european cars
Over 55% american cars
Over 75% chinese cars
