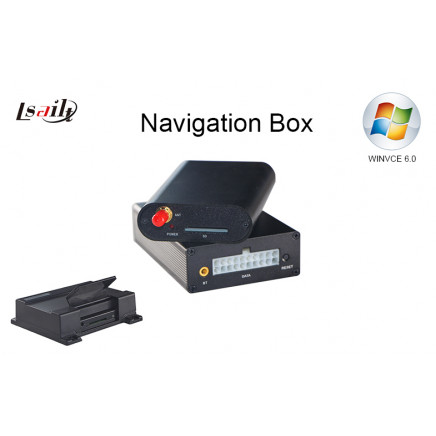

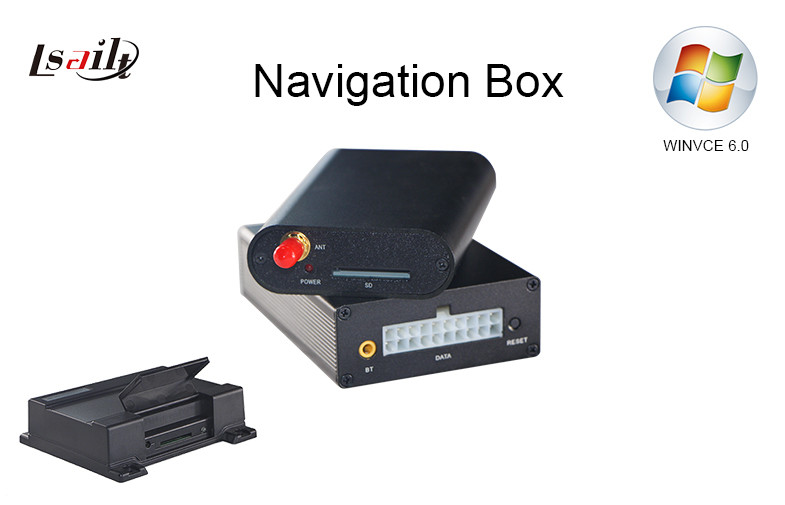

Special GPS Navigation Box for Alpine with 480*234/Wince6.0 Core

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:50 Sets

Trade Terms:FOB

Payment Terms:T/T, Western Union, Paypal

Trademark:LLT

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:LLT- AP3400

Type:GPS Navigator

Use:Automotive

Port Number:Multiplex Multi-purpose Channel

Model:Integration Type

Carrier Frequency:Dual-Frequency

Chip:SiRF

Frequency:664MHz+336MHz DSP/800MHz

Main Chip Model:Sirf Atlas V/Msb2531

Storage Space:128MB(Can Expand to 8GB)

Resolution:480X234(Selection by Resistor)

RAM:128MB/256MB

Navigation Storage Space:SD Card

Video Output Format:MP4/MPEG/Mpg/Asf/WMV/MOV etc.

Sound Output:Dual Channel CD Stereo Sound

Operating System:Wince6.0 Core

Export Markets:Global

Additional Info.

Trademark:LLT

Packing:Standard Export Box

Standard:CE, SGS

Origin:Shenzhen, Gongdong

Production Capacity:50, 000PCS

Product Description

HD/Mimic Navigation Box,Navigation Module,Navigation System,Navigation Chipset For Alpine, JVC, Kenwood, Philips, Pioneer, Sony, Clarion with IVA-W200E/201E/202E/502E/520C/530E/X8
Installation advantages:

1)   Nondestructive installation design, which does not damage to wires of the original car; special interface cable, plug-up installation without wire cut;
2)   Choose installation functions freely(Bluetooth optional);
3)   Technology is reliable, take the original agreement;
Special GPS Navigation Box for Alpine with 480*234/Wince6.0 Core

4) After the upgrade, it still retains all the functions of the original host, even if navigation goes wrong, does not affect the function of the use of the original car;
5) After-sales service is convenient, replace the adapter module directly, compare with special machine, it's simple, less risk, safety and reliable
Special GPS Navigation Box for Alpine with 480*234/Wince6.0 Core

6) Choose beautiful interface by yourself;
7) Achieve handwritten navigation, and control the navigation by touching it. Compare with the original navigation module, it's more convenient and flexible.
Special GPS Navigation Box for Alpine with 480*234/Wince6.0 Core

Product parameters

Frequency:	664MHZ+336MHZ DSP/800MHZ
Main chip model:	Sirf Atlas V/MSB2531
Memory:	128MB/256MB
Storage space:	128MB(can expand to 8GB)
Navigation software storage:	SD card
Operating system:	WINCE6.0 CORE
Supported audio and video formats:	MP3/PCM/WMA/ Mp4/mpeg/mpg/asf/wmv/mov etc.
Support video type:	Mp4/mpeg/mpg/asf/wmv/mov etc.
Video output format:	Composite Video(CVBS,Y/C,YPbPr)/ Analog RGB
Video output voltage:	1.0Vpp/75?
Resolution:	480X234(selection by resistor)
Sound output:	Dual channel CD stereo sound
Operating temperature:	~40蚓 to +85蚓
Storage temperature:	~40蚓 to +100蚓
Operating voltage:	DC 9-16V
Tracking sensitivity:	~161dBm
Positioning accuracy:	10m, 2D RMS,5m, 2D RMS, WAAS enable
GPS Antenna type:	External active ceramic antenna

For models:IVA-W200E/201E/202E/502E/520C/530E/X8etc. all machine with NAVI interface . (480X234)

Statement: All brands on this website are belong to original company, if do not want to use this website, please note in time and delete.
