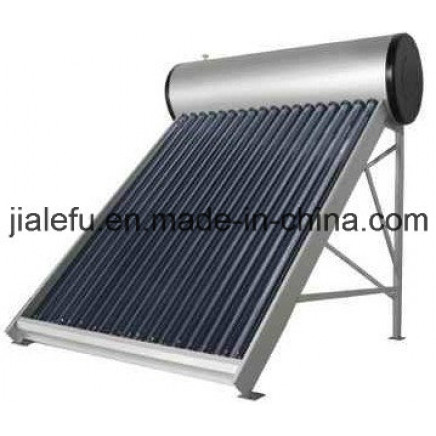

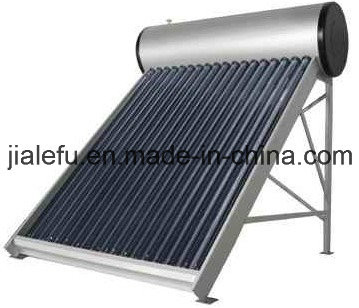

Solar Water Heater - Stainless Steel Inner&Outer Tank

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 69.0-299.0/ Piece

Price:$69.0 - $299.0 / Piece

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: L/C, T/T, D/P, Paypal

Price Valid Time:From Apr 04, 2015 To Jun 17, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:JIJ5818-18-SNP

Structure:Compact Type

Pressure:Unpressurized

Interior Material:Stainless Steel

Collector Components:Glass Vacuum Tube

Certification:CE, ISO9001, CCC

Solar Water Heater Color:as Per Customer

Warranty:5years

Frame:30degree to 60degree

Product:Solar Water Heater - Stainless Steel Inner&Outer

Export Markets:Global

Additional Info.

Trademark:JJL

Packing:Standard Export Carton with Foam

Standard:58mm*1800mm

Origin:China

HS Code:8419191000

Production Capacity:5000sets/Month

Product Description

Solar Water Heater - Stainless Steel Inner&Outer Tank(58/1800mm three target)

Specifications:
1. Inner Solar Water Heater Tank: SUS304-2B-. 4mm
2. Outer Solar Water Heater Tank: Stainless Steel 0.4mm
3. Bracket: SUS302 stainless steel 1.2mm & 1.5mm
4. Insulation layer: 55mm
5. Tank diameter: 420mm and 460mm
6. Temperature using range: >20 degrees below zero, in the case there is electrical heater to keep the water heat)

Solar Water Heater is a Non-pressure compact system. It's a most economic system with higher efficiency. Working principle depends on Gravity. It'd be installed on the roof as top as possible to get enough hot water flow pressure. The simple controller can be used to show water temperature, level and control cold water supply or electric element work at preset time.

Solar Water Heater Feature
1) Spray-paint and looks like China paint crust
2) Stable and reliable performance and well wind resistance
3) Vacuum heat-collecting tubes at high temperature with new triangle elements
4) Dual-purpose brackets for both flat and inclined roof
5) Meeting the requirement of washing clothes, abstersion and bathing
6) Economical goods

Model	Tube Size	Tube Qty	Actual Capacity	Loading QTY
	MM		(L)	20' GP	40' GP	40' HQ
JIJ4715-15-SNP	47*1500	15	82.5	72	150	188
JIJ4715-18-SNP	47*1500	18	99	61	128	161
JIJ4715-20-SNP	47*1500	20	110	56	117	147
JIJ4715-24-SNP	47*1500	24	132	48	100	125
JIJ4715-30-SNP	47*1500	30	165	40	83	104
JIJ5818-15-SNP	58*1800	15	120	44	91	115
JIJ5818-18-SNP	58*1800	18	144	37	78	98
JIJ5818-20-SNP	58*1800	20	160	35	72	91
JIJ5818-24-SNP	58*1800	24	192	29	60	76
JIJ5818-30-SNP	58*1800	30	240	23	49	62
JIJ5818-36-SNP	58*1800	36	288	20	41	52
