Solar Storage System Lithium 48V 300ah Battery

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

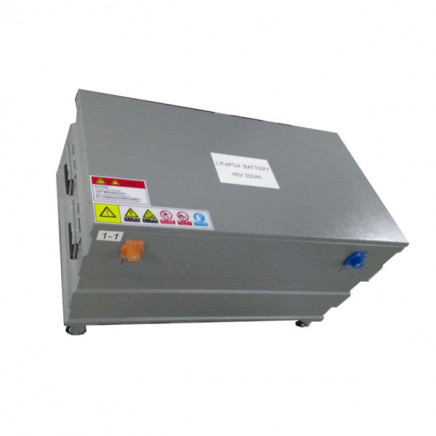

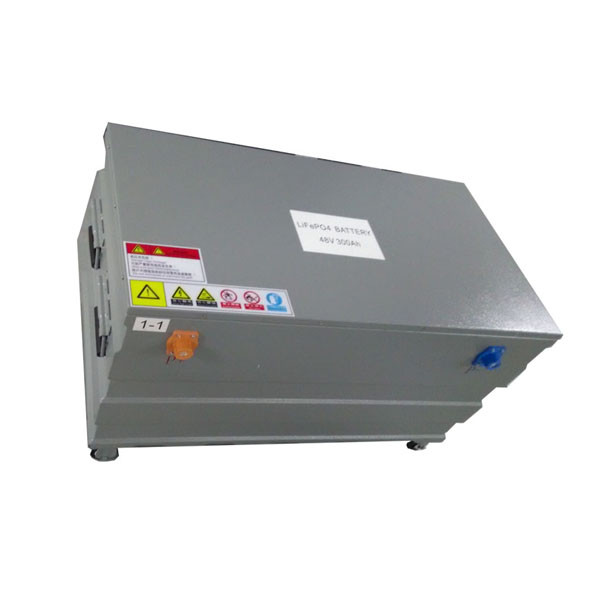

Solar Storage System Lithium 48V 300ah Battery

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
10.0	US $ 1.0-10000.0/ Piece

Price:$1.0 - $10000.0 / Piece

Trade Terms: FOB, EXW

Payment Terms: T/T, Western Union

Price Valid Time:From Jul 17, 2015 To Oct 17, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:OPT-48-300

Type:Lithium-Ion Batteries

Usage:UPS, Electric Power, Lighting, Boat

Nominal Voltage:48V

Discharge Rate:Medium Discharge Rate

Shape:Square Battery

Electrolyte:LiFePO4

Installation:Packaged

Rechargeable:Chargeable

Capacity:300ah

Dimension:740*411*447mm

Weight:About 175 Kg

Battery Case:Ion Case

Color:Silvery, Black, Blue or White

Life Time:5-8 Years

Warranty:2years

PCM / BMS:Yes

Export Markets:Global

Additional Info.

Trademark:OPTIMUMNANO

Packing:Customized Package

Standard:SGS, UL, CE, RoHS, IEC-62133, TS16949 etc.

Origin:China Mainland(Guangdong)

HS Code:8507600090

Production Capacity:500, 000 PCS/Month

Product Description

Solar storage system lithium 48v 300ah battery

- -Lifepo4 battery 48v 300ah Specification- -

No.	Item	General Parameters
1	Model	OPT-48-300
2	Standard capacity	300Ah
3	Rated voltage	48V
4	Max. Charge voltage	58.4V
5	Discharge Cut-off voltage	40V
6	Standard charge current	60A
7	Max Continuous discharge current	100A
8	Peak Instant Discharge Current	200A(5Seconds)
9	Dimension(Customized)	740411447mm
10	Total weight(Approx.)	About 175 Kg
11	Operate temperature	-20°C~60°C
12	Built-in Protection Circuit Module	YES
13	Cycle time	2000 times at 1C, 80% capacity remaining
14	Built-in PCM functions	Over charged protection
		Over discharged protection
		Short circuit protection

- - Advantages- -

1. Extremely safe and stable chemistry: Rigid Aluminum alloy housing protection, and
BMS built inside to balance protect the battery.

2. Long life-cycle, 5-7years, up to 2000cycles(while Sealed Lead Acid batteries only 750 cycles and NiMH batteries only 500 cycles)

3. Lighter and smaller, 1/2 size weight of SLA batteries. 70% size/weight of NiMH/NiCd batteries

4. Wide operating temperature, high temperature resistance(-20-60 degrees celsius)

5. Steady performance,
Higher discharge rate for more powerful devices, 1C continuous, 3C pulse for normal cells and 20 C for special design. Low self-discharge rate, less than3%monthly

6. No memory effects and highly efficient charge,
It can be recharged anytime, no reduction of the capacity

7. Green product, environment friendly: Clean and Green energy poses no pollution on our enviroment

- - Aplification- -

Used for e-bike, e-motor, electrical equipment, electrical tool, EV-car, e-scooter
Solar Storage System Lithium 48V 300ah Battery

- - Certification- -

CE, UL, SGS/RoHS, RBRC, ISO9001: 2000, ISO1400, TS16949: 2002 issued by NQA
Solar Storage System Lithium 48V 300ah Battery

- - Optimum Battery Co., Ltd Reputation- -

Main Supplier of New Energy AutomobilesOiwer Batery for The Universiade Shenzhen 2011
The Leading Supplier of Litium Iron Phosphate Battery for New Energy Automobiles in China
Large-Scales Supply of LiFePO4 battery for Electric Bicycles and Other Light Vehicles.

Solar Storage System Lithium 48V 300ah Battery
