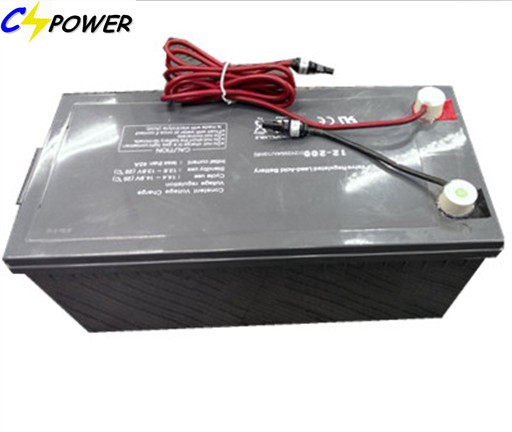

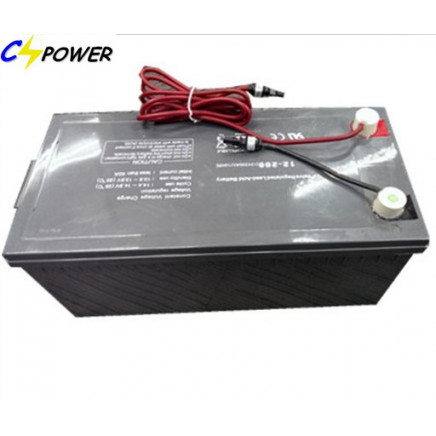

Solar Gel Battery 12V100ah, 150ah, 200ah with Mc4 Connector

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
10.0	US $ 85.0-200.0/ Piece

Price:$85.0 - $200.0 / Piece

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: T/T, Money Gram, Western Union

Price Valid Time:From May 22, 2015 To Dec 31, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:Gel Battery CG12-100

Type:Lead-Acid Batteries

Usage:Car, Bus, UPS, Electric Power, Lighting, Electric Bicycle, Boat

Nominal Voltage:12V

Discharge Rate:Low Discharge Rate

Shape:Gel Battery

Electrolyte:Acid

Installation:Fixed

Rechargeable:Chargeable

Voltage:Gel Battery 12V

Capacity:100ah Gel Battery with Mc4 Connector

Size:L*W*H*Th=329*173*218*230mm

Weight:28.5kg Gel Battery with Solar Mc4 Terminal

Expected Cycle Time:15-20years Deep Cycle Gel Battery

Warranty:3 Years Solar Battery with Mc4 Terminal Connector

Maximum Capacity:300ah Solar Gel Battery

Delivery Time:7 Days

Brand:Cspower/OEM

Export Markets:Global

Additional Info.

Trademark:CSPOWER/OEM

Packing:Carton

Standard:CE, ISO, IEC

Origin:Guangzhou, Guangdong

HS Code:8507200000

Production Capacity:100000PCS/Month

Product Description

Solar Gel Battery 12V100ah, 150ah, 200ah with Mc4 connector

Characteristics

Model: Gel Battery with MC4 connector Terminal CG12-100,
Warranty: 3years Gel Battery/ Deep Cycle Battery,
With solar MC4 connector
sealed free maintenance
Solar accumulator Gel battery
for solar&wind power, street lighting system
Life span: 15-20years Gel Battery,
Minimum Order: 10 Units
FOB Port: Guangzhou/Shenzhen/Hongkong
Lead Time: 5 - 7 days
Payment Terms: T/T, Western Union
Product Certificate: CE, ISO, IEC

Sealed/Maintenance-Free

The valve regulated spill proof construction allows trouble-free safe operation in any position. There is no need to add electrolyte, as gases generated during the charge phase are recombined in a unique "oxygen cycle".

Long Shelf Life

A low self-discharge rate, up to approximately 3% per month, may allow storage of fully charged batteries for up to a year, depending on storage temperatures, before charging becomes critical.

Deep Discharge Recovery

Special separators, advanced plate composition and a carefully balanced electrolyte system ensure that the battery has the ability to recover from excessively deep discharge.

Low Pressure Valve Regulators

All batteries feature a series of low pressure one-way relief valves. These valves safely release any excessive accumulation of gas inside the battery and then reseal.

High Discharge Rate

Low internal resistance allows discharge currents of up to ten times the rated capacity of the battery. Relatively small batteries may thus be specified in applications requiring high peak currents.

Wide Operating Temperature Range

Batteries may be discharged over a temperature range of -40°C to +60°C (-40°F to + 140°F) and charged at temperatures ranging from -20°C to +50°C (-4°F to +122°F).

Rugged Construction

The high impact resistant battery case is made of nonconductive ABS plastic. The case materials impart great resistance to shock, vibration, chemicals and heat. Flame Retardant (FR) battery cases and lids are available where the end application dictates.

Long Service Life

Have a design life of up to five years in standby applications. In cyclical applications up to 1,000 charge/discharge cycles can be expected depending on average depth of discharge.

Gel Battery with Solar MC4 Terminal Main Application

UPS, solar systems, Streeting Light, control systems, power systems, wind energy systems, telecommunication/communication systems & etc.

Welcome to contact us for the battery details.

Contact CSPOWER Details:
Mobile: +86-18823798267
Tel: 0086-755-29123661
Web: www.csagmbattery.com
www.cssolarbattery.com
http://cspower.en.made-in-china.com/

Model NO.	Nominal Voltage (V)	Rated Capacity(AH) 10hrs/25ºC	Approx. Weight		Dimensions(mm)								Terminal Type
			kg	lbs	Length		Width		Height		Total Height
			kg	lbs	mm	inch	mm	inch	mm	inch	mm	inch
CG12-33	12	33	10.4	22.9	196	7.70	131	5.16	155	6.10	170	6.69	T9/T16
CG12-38	12	38	12.2	26.84	197	7.73	166	6.54	174	6.85	181	7.13	T12
CG12-50	12	50	16.2	35.6	230	9.06	138	5.43	211	8.30	229	9.01	T9/T16
CG12-55	12	55	16.2	35.6	230	9.06	138	5.43	211	8.30	229	9.01	T9/T16
CG12-65	12	65	20,5	45.1	350	13.8	166	6.54	179	7.05	179	7.05	T9
CG12-70	12	70	22.0	48.4	260	10.2	169	6.65	211	8.30	215	8.46	T16
CG12-80	12	80	23.4	51.5	260	10.2	169	6.65	211	8.3	229	9.02	T14
CG12-85	12	85	29	64.10	307	12.08	169	6.65	211	8.3	234	9.21	T16A/T8
CG12-100	12	100	30	66	331	13.0	173	6.81	213	8.39	233	9.17	T10
CG12-120	12	120	36.5	80.3	407	16.0	174	6.85	209	8.23	233	9.17	T11
CG12-134	12	134	41	90.2	341	13.43	173	6.81	283	11.14	283	11.14	T9/T20
CG12-150	12	150	42.5	93.5	484	19.1	171	6.73	241	9.49	241	9.49	T11
CG12-180	12	180	56.5	124	530	20.9	209	8.23	214	8.43	240	9.45	T9
CG12-200	12	200	60	132	522	20.57	240	9.45	216	8.50	240	9.45	T11
CG12-230	12	230	64	140.8	522	20.6	240	9.45	216	8.50	240	9.45	T9
CG12-250	12	250	68	150	520	20.5	268	10.55	220	8.66	243	9.57	T11
CG2-100	2	100	6.4	14.11	171	6.73	72	2.83	206	8.11	227	8.94	T16
CG2-150	2	150	9.0	19.8	172	6.77	102	4.02	207	8.15	227	8.94	T6
CG2-200	2	200	14	30.9	172	6.77	111	4.37	329	13.0	356	14.0	T20
CG2-300	2	300	20.5	45.2	171	6.70	151	5.94	330	13.0	366	14.4	T20
CG2-400	2	400	27.5	60.6	210	8.27	176	6.93	329	13.0	366	14.4	T20
CG2-500	2	500	33.5	73.9	241	9.5	172	6.8	331	13.0	366	14.4	T20
CG2-600	2	600	41	90.4	301	11.9	175	6.89	331	13.0	366	14.4	T20
CG2-800	2	800	55	121.3	411	16.1	175	6.89	330	13	356	14	T20
CG2-1000	2	1000	66.5	146.6	475	18.7	175	6.89	330	12.99	356	14.02	T20
CG2-1500	2	1500	103.5	228.2	401	15.8	351	13.8	342	13.5	369	14.5	T20
CG2-2000	2	2000	136	299.8	491	19.3	351	13.8	343	13.5	369	14.5	T20
CG2-3000	2	3000	195	429	710	28.0	352	13.9	342	13.5	369	14.5	T20
