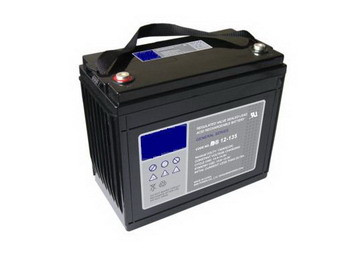

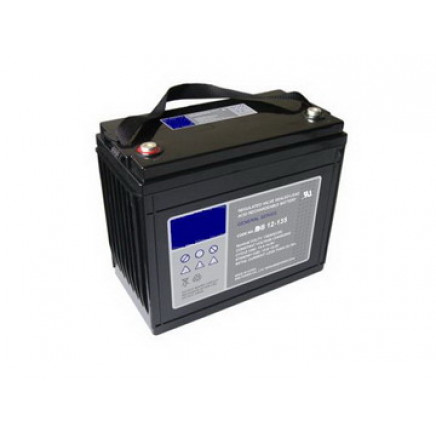

Solar 12V120ah Lead Acid Battery

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:100 Pieces

Trade Terms:FOB, CFR, CIF, EXW

Payment Terms:L/C, T/T, D/P, Paypal, Western Union

Trademark:UP brand, OEM brand

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:12V120AH

Type:Lead-Acid Batteries

Usage:UPS, Lighting, Boat

Nominal Voltage:12V

Discharge Rate:Low Discharge Rate

Shape:Square Battery

Electrolyte:Acid

Installation:Packaged

Rechargeable:Chargeable

Size:409*176*220/240

Voltage:12

Capacity:120ah

Color:Black

Application:UPS/Solar System

Export Markets:Global

Additional Info.

Trademark:UP brand, OEM brand

Packing:Packing in Carton

Standard:1) Nominal voltage: 12v 2) Nominal capacity: 120ah

Origin:Shenzhen, China

HS Code:8507200000

Production Capacity:150000pieces/Month

Product Description

Specifications
12V120AH Lead Acid Battery
1. CE, UL
2. Use of safety
3. Heat resisting
4. No leakage

Advantage
1. The battery is full of power when it's out of factory, no need to use liquid charge;
2. No memory, no need to discharge battery use, suitable for circuit design;
3. By high partition, adsorption and strong;
4. There is no flowing liquid (poor liquid), does not leak acid and free Upside down,
5. Comply with environmental requirements, ease of use,
6. The use of lead-calcium alloys, battery self-discharge is very low,
7. Easy storage, less maintenance;
8. Using ABS plastic shell and valve technology for safe use.

Features
- Sealed and maintenance free operation
- Non-Spillable construction design.
- ABS Containers and Covers (UL94HB), UL94V-0 optional.
- Safety valve installation for explosion proof.
- High quality and high reliability.
- Exceptional deep discharge recovery performance.
- Low self discharge characteristic.
- Flexibility design for multiple install positions.

Application
- Alarm System
- Cable Television
- Communication Equipment
- Control Equipment
- Security System
- Medical Equipment
- UPS
- Power Tools
- Toys
- Emergency Power System

More information:
A)Warranty: 1~3 years, If battery operate in normal ways but failed within warranty, we can supply you free news ones in next order.
B) Delivery Time: About 20-30 days after getting deposit.
C) Package: One battery one carton box, and all carton boxes with pallets.
D)Payment terms: By T/T, 30% as deposit and 70% balance before shipment or L/C at sight.

Code	Nominal Voltage (V)	Capacity (AH)	Dimension								Weight		Terminal		PDF
			Length		Width		Height		Total Height		Kg	Lb	Type	Posi- tion
			mm	in	mm	in	mm	in	mm	in	Kg	Lb	Type	Posi- tion
GB12-30	12	30	195	7.68	130	5.12	159	6.26	183	7.2	11	24.26	T7	C
GB12-33	12	33	195	7.68	130	5.12	159	6.26	183	7.2	11.3	24.92	T7	C
GB12-35	12	35	195	7.68	130	5.12	159	6.26	183	7.2	11.7	25.8	T7	C
GB12-40	12	40	197	7.76	165	6.5	170	6.69	170	6.69	14	30.87	T17	D
GB12-45	12	45	197	7.76	165	6.5	170	6.69	170	6.69	14.4	31.75	T17	D
GB12-50	12	50	230	9.04	138	5.44	208	8.19	213	8.39	16.5	36.38	T17	C
GB12-55	12	55	230	9.04	138	5.44	208	8.19	213	8.39	17.3	38.15	T17	C
GB12-60	12	60	260	10.24	170	6.69	221	8.70	221	8.70	21	46.31	T17	C
GB12-65	12	65	350	13.78	166	6.54	176	6.93	176	6.93	22.5	49.61	T10	C
GB12-75	12	75	258	10.16	168	6.62	208	8.2	212	8.35	23	50.71	T18	C
GB12-80A	12	80	350	13.78	167	6.57	174	6.85	174	6.85	25.4	56.01	T10	C
GB12-80	12	80	258	10.16	168	6.62	208	8.2	212	8.35	26	57.33	T18	C
GB12-90	12	90	305	12.02	168	6.62	208	8.2	212	8.35	29	63.95	T18	C
GB12-100	12	100	330	12.99	172	6.77	215	8.46	221	8.7	31.5	69.46	T19	C
GB12-120	12	120	406	15.98	174	6.85	208	8.19	233	9.17	37	81.59	T12	C
GB12-135	12	135	341	13.43	172	6.77	284	11.18	288	11.34	44	97.02	T19	C
GB12-150	12	150	485	19.09	172	6.77	240	9.45	240	9.45	45	99.22	T11	C
GB12-160	12	160	530	20.87	209	8.23	214	8.43	231	9.09	50	110.25	T14	E
GB12-180	12	180	525	20.67	243	9.57	220	8.66	245	9.65	58	127.89	T14	E
GB12-200	12	200	525	20.67	243	9.57	220	8.66	245	9.65	63	138.92	T14	E
GB12-230	12	230	521	20.51	269	10.59	203	7.99	232	9.13	66	145.53	T14	E
GB12-250	12	250	520	20.47	268	10.55	220	8.66	249	9.80	74	163.17	T14	E
