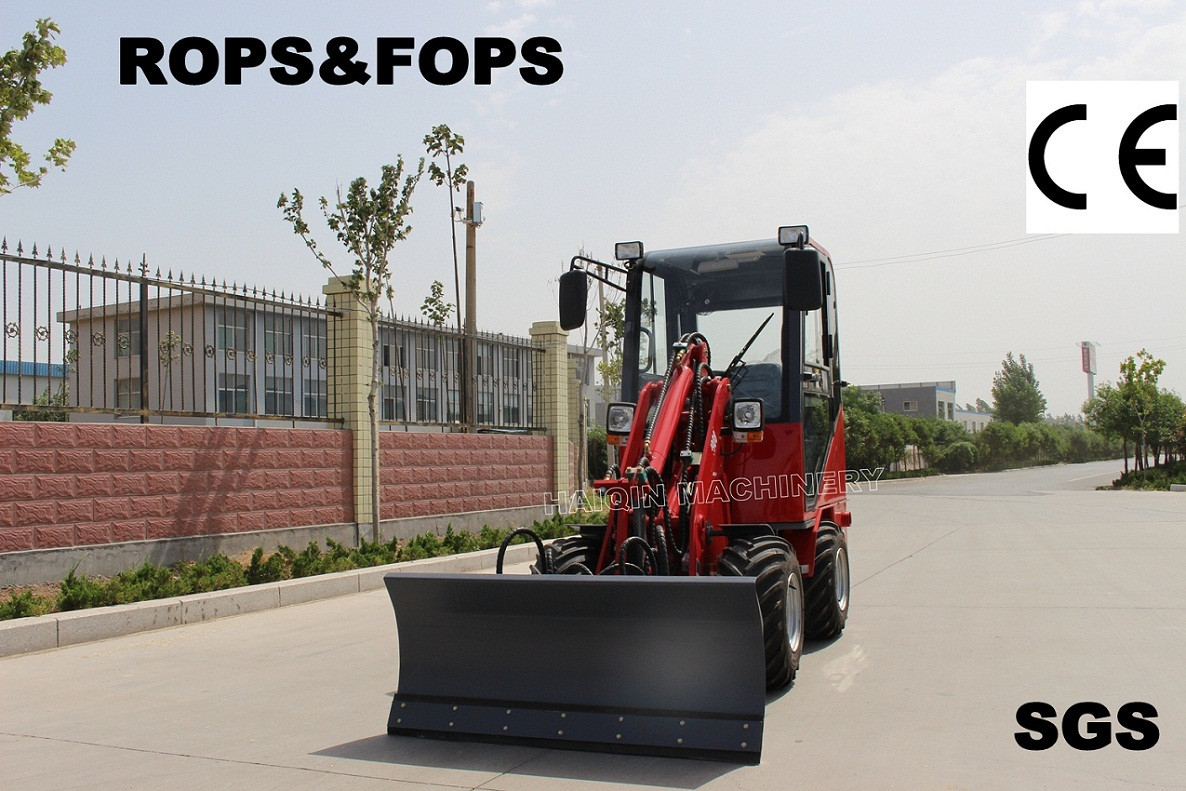

Snow Blade Mini Loader (HQ908) with Rops&Fops

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 11000.0-12000.0/ Piece

Price:$11000.0 - $12000.0 / Piece

Trade Terms: FOB, CFR, CIF, FCA, EXW

Payment Terms: L/C, T/T

Price Valid Time:From Jun 10, 2015 To Aug 29, 2018

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:HQ908

Type:Small Loader

Usage:Universal Type

Scraper Type:Front End Shovel

Transmission:Hydraulic Transmission

Walking Mode:Wheeled

Load and Unload Method:Front Discharge

Engine Power:18.5kw

Certification:CE, ISO9001: 2000, SGS,Rops&Fops

Condition:New

Color:According to Customers Requirments

Engine:Perkins

Operating Weight:1650kg

Turnin Angle:43 Degree

Bucket:0.4m3

Export Markets:Global

Additional Info.

Trademark:Haiqin

Packing:3 or 4 Units in a 20 Feet Container

Standard:CE, ISO, SGS, ROPS&FOPS

Origin:Shandong, China

HS Code:84295100

Production Capacity:8000 Units / Year

Product Description

Excellent performance
1,Original Perkins Engine
2, The closed hydrostatic system has the feature of lower energy consumption.
3, Simple quick-change construction can meet multipurpose operation of users.
4, The integrated multi-functional control handle makes operation simple.
5, The monitor has the LED showing of fuel level by stages.
6, The unique frame hinge type is compacted and durable.
7, The widely applied broad-face tyre and damping seat is safe and comfortable.
8, Small working radius, mobile and flexible.

Engine
Model	Pekins 403D-11
Rated power	18.5kw(24.8BHP)
Rated speed	2800rpm
Maximum torque	67Nm
The ratio of fuel consumption	252g/kwhr
Dimensions
Body length	3690mm
Body width(reverse tyre)	1050mm/970mm
Body height	2300mm
Minimum ground clearance	200mm
Maximum dumping height	2000mm
Dumping reach	600mm
Wheel base	1340mm
Performance parameters of the machine
Bucket	0.4m3
Tipping load in shovel, vehicle straight raight straight798kg	800kg
Tipping load in shovel, vehicle at 43°	580kg
Operating weight	1650kg
The sum of the work device	8s
Driving speed	0-12km/h
Minimum turning-circle radius
Outside face of bucket	1989mm
Outside face of tyre	1469mm
Tyre specifications	27*8.5-15TL
Maximum turning angle	±68°

Additional Information
