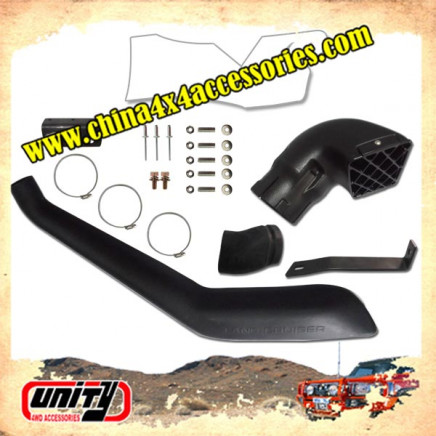

Snorkel for Toyota LC200 (UNI-STLC200)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:20 Sets

Trade Terms:FOB, CFR, EXW, CIF

Payment Terms:T/T, Western Union, Paypal

Trademark:Unity4wd

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:UNI-STLC200

Model:Toyota LC200

Material:LLDPE

Size:138*42*18 Cm

Weight:5.5kgs

Accessory:with Complete Accessory

Payment:T/T, Western Union...Ect

Delivery Way:by Sea or by Air

Delivery Time:7-15 Days

MOQ:20 Pieces

Production:1000 PCS/Month

Export Markets:Global

Additional Info.

Trademark:Unity4wd

Packing:Normal Export Carton

Standard:UNITY

Origin:Guangdong, China(Mainland)

HS Code:840991999

Production Capacity:1000PCS/Month

Product Description

4X4 off-road accessories snorkel-TOYOTA LC 200
(1GRFE-4.0Litre-V6 ) LEFT SIDE
Material: LLDPE
Features
- 100 % Brand New-UNITY .
- Each component is designed for maximum dust and water sealing .
- Significantly reduce the hazards of engine damage during water crossings .
- High flow air ducting and body ensures air supply in excess of your engine requirements .
- Your own logo on Packing Carton is available once with large QTY .
- On-Time Delivery , Delivery within 5-7 days after revive your payment .
- A trial order is available too .
- OEM , we can manufacture new model if Sample is offered from you and require big order .
- New mat
erial, not Second-hand , to ensure high quality and availability .
- We are one of the earliest Manufacturer that Proficient in producting 4x4 accessories .
7 Years of experiences , Timely and professional service .
- Have been approved by CE&SGS .

Tips :
1. Drilling is REQUIRED (drilling template is included)
2. Please remember to measure MULTIPLE times and use your best judgment before you cut your snorkel. Our snorkels are a guaranteed fit, you just need to make sure they're aligned properly.
1. Remove:
Left hand front wheel.
Wheel arch liner and air cleaner assembly.

2. Cut and remove air cleaner intake snout using the air hacksaw. Sit adapter in place and remove any extra material as required to make air cleaner intake hole the same size as adapter. Drill 7 holes to 4mm. Apply a liberal amount of silicone to adapter and pop rivet to air cleaner housing (see drawing).

3. Mark out inner guard hole by measuring back from radiator support panel 55mm and across 98mm (see drawing). Drill hole to 89mm using the holesaw. De-burr and paint hole. Refit air cleaner.

4. Tape template to upper rear corner of left hand guard. with a felt pen mark out all holes. Drill a 4mm pilot hole for each hole position. Drill main hole to 89mm using the holesaw. Drill the remaining mounting holes to 16mm using the step drill. Cut out new indicator hole using the air hacksaw. File to shape. Drill the 2 locating holes to 6mm. De-burr and paint all holes.

5. Bolt upper mounting bracket to snorkel and install mounting studs. Place masking tape on "A" pillar in approximate position of upper mounting bracket. Sit snorkel on guard and mark around outside of upper mounting bracket. Remove snorkel. Place upper mounting bracket on "A" pillar and carefully mark 4 holes. Drill to 8mm. De-burr and paint holes.

6. Insert plastic plugs to "A" pillar and install upper mounting bracket. Install snorkel and fasten using necessary hardware. Install flexible ducting and tighten hose clamps.

7. Refit indicator to new hole in guard and connect wiring. Refit wheel arch liner and install air RAM and fasten.

1. Mainly Manfacturing as below

Snorkel, Winch, Wheel Arch flares, Air jack, Farm jack, Roof tent, Roof Rack Wheel spacer, Winch accessories, Ground anchor, Water baldder, Awnning, Rack bag, Off-road base, Farm jack mount, Winch damper, Free wheel hub, ect...

2. Snorkel including bag of bolt and nut, brackets, template, fitting instruction.

3. All Snorkels Model Details

Snorkel:

Toyota: Land cruiser 40, 75, 60, 78, 80, PRADO90, 100, PRADO120, 200, FJ cruiser; Hilux VIG0, 106, 167LA, 167RA.

Nissan: Navara D40, GQ Patrol Y60, GU Patrol Y61(A, B, C, D ), D22 Y160

Mitsubishi: Pajero NH, Triton ML. V31, V73

Isuzu: D-Max

Jeep: Cherokee XJ, JK, TJ

Land Rover: Discovery TD1, Discovery3, Defender TD5, Discovery TD5

Ford: Ford Ranger

4. Brand: Unity 4WD

Model	DESCRIPTION	SPECIFICATION
UNI-STLC40B	Toyota-LC40 Snorkel SS401HF	TOYOTA LANDCRUISER 40 Year: 1/80 to 12/84 2H 4.0Litre-I6 Disel 2F 4.2Litre-I6 petrol / 3B 3.4Litre-I4 Disel Material :LLDPE
UNI-STLC60	Toyota-LC60 SS60HF	60, 61 & 62 series Landcruiser 1/80 to 12/89 2F 4.2Litre-I6 P RHS 3F 4.0Litre-I6 P RHS 2H 4.0Litre-I6 D RHS 12H-T 4.0Litre-I6 D RHS
UNI-STLC70	Toyota-LC70 Snorkel SS74HF	TOYOTA LANDCRUISER 71, 73,75,78 & 79 series Narrow Front Year:1/85 to 3/07 Material: LLDPE
UNI-STLC75	Toyota-LC75 Snorkel SS75HF	TOYOTA LANDCRUISER HJ /FJ 75 Year:1/85 to 3/07 2H DIESEL(4.0L) 3F PETROL(3.4L) Material :LLDPE
UNI-STLC76	Toyota-LC76 SS76HF
UNI-STLC78	Toyota-LC78 Snorkel SS78HFZ	TOYOTA LANDCRUISER HZJ 75/78 SERIES Year:1/85 to 3/07 4.2 DIESEL(1HZ ENGINE) Material :LLDPE
UNI-STLC80	Toyota-LC80 Snorkel SS81HF	TOYOTA LANDCRUISER 80 SERIES (ALL MODELS) Material :LLDPE
UNI-STPR90P	Toyota-Pr90 Snorkel SS185HF	TOYOTA PRODO 90 Year:12/97 to 12/02 3. 4L V6 PETROL (5VZ-FE ENGINE) Material :LLDPE
UNI-STPR90D	Toyota-LC90 Snorkel SS180HF	TOYOTA PRODO 90 Year: 12/97 to 12/02 1KZ-TE 3.0Litre-I4 Disel Left Hand Side Material :LLDPE
UNI-STLC100	Toyota-LC100 Snorkel SS85HF	Toyota 100 series Landcruiser / Lexus LX 470 Year: 4/98 to 9/07 1FZ-FE 4.5Litre-I6 Petrol 2UZFE V8 4.7Litre-V8 Petrol 1HZ 4.2Litre-I6 Disel 1HD-FTE 4.2Litre-I6 Disel Material :LLDPE
UNI-STLC105	Toyota-LC105 SS86HF	Toyota 100 series Landcruiser / Lexus LX 470 4/98 to 9/07 1FZ-FE 4.5Litre-I6 Petrol 2UZFE V8 4.7Litre-V8 Petrol 1HZ 4.2Litre-I6 Disel 1HD-FTE 4.2Litre-I6 Disel Material :LLDPE
UNI-STPR120A	Toyota-LC120 Snorkel SS186HF	TOYOTA LANDCRUISER PRADO 120 SERIES Year: 12/02 to 9/09 4.0L V6(1GR-FE ENGINE) 1KD-FTV 3.0Litre-I4 /1KZ-TE 3.0Litre-I4 Material :LLDPE
UNI-STPR150A	Prado 150 Series Snorkel SS189HF / SS188HF	TOYOTA PRODO 150 10/09 onwards 1GR-FE 4.0Litre-V6 Petrol 1KD-FTV 3.0Litre-I4 D RHS Material :LLDPE
UNI-STLC200	Toyota-LC200 Snorkel SS87HF	TOYOTA LANDCRUISER PRADO 200 SERIES Year: 2008 - Onwards 1VD-FTV 4.5Litre-V8 Intercooled Twin Turbo / 2UZ-FE 4.7Litre-V8 DOHC Material :LLDPE
UNI-STFJCRS	Toyota-FJ CRUISER Snorkel SS410HF	TOYOTA FJ CRUISER 1GRFE 4.0Litre-V6 Material :LLDPE
UNI-STH65	Toyota-HILUX Snorkel SS65HF	TOYOTA HILUX 65 Series Year: 1/83 to 12/88 4Y 2.2Litre-I4 P LHS 3Y 2.0Litre-I4 P LHS 2L 2.4Litre-I4 D LHS MATERIAL:LLDPE
UNI-STH105	Toyota-Hilux 105 Snorkel SS105HF	TOYOTA HILUX 105 22R 2.4 Litre-L4 petrol ,left side Material :LLDPE
UNI-STH106	Toyota-Hilux 106 SS106HF	TOYOTA HILUX 106 3L 2.8Litre-I4 Disel ,left side Material :LLDPE
UNI-STH167L	Toyota-Hilux 167 SS143HF SS145HF SS146HFE	TOYOTA HILUX 167 5L 3.0Litre-I4 Diesel 1KZ-TE 3.0Litre-I4 Diesel 5L-E 3.0Litre-I4 Diesel Left Hand Side Material :LLDPE
UNI-STH167R	Toyota-Hilux 167 Snorkel SS135HF/SS136F	TOYOTA HILUX 167 5VZ-FE 3.4Litre-V6 P RHS 3VZ-E 3.0Litre-V6 P RHS 3RZ-FE 2.7Litre-I4 P RHS 3L 2.8Litre-I4 D RHS Material :LLDPE
UNI-STH125	Toyota-Hilux 25A Vigo Snorkel SS125HF	TOYOTA HILUX VIGO 2005 MODEL 4.0L VVT-i V6 Petrol (1GR-FE Engine) Material :LLDPE
UNI-STH120	Toyota-Hilux 25A Vigo Snorkel SS120HF	TOYOTA HILUX VIGO 2005 MODEL 3.0L D4D TDI (1KD-FTV Engine) Material :LLDPE
