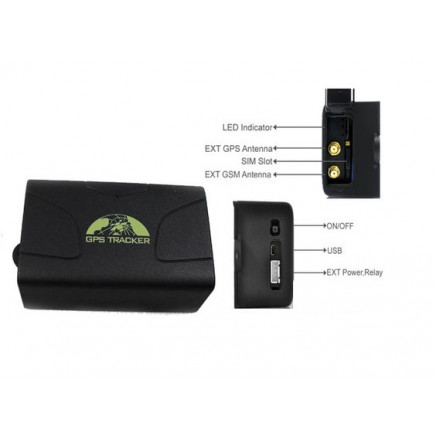

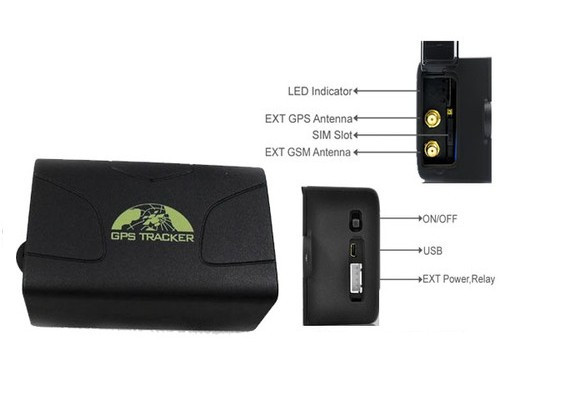

Smart Vehicle GPS Tracker for Fleet Management Monitoring

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
50.0	US $ 57.0-65.0/ Piece

Price:$57.0 - $65.0 / Piece

Trade Terms: FOB, EXW

Payment Terms: L/C, T/T, Paypal, Western Union

Price Valid Time:From Aug 07, 2014 To Nov 07, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:UC-TK104

Type:GPS Tracker

Use:Automotive

Standby Time:60 Days

Waterproof:Waterproof Shell

Tracking:Real-Time Tracking

External GSM Antenna:Support

Export Markets:Global

Additional Info.

Trademark:UCOVER

Packing:Gift Box

Origin:Shenzhen

Production Capacity:50000PCS/Month

Product Description

Features:

1 Waterproof shell
2 Built-in large capacity 6000MA battery, long standby time of 60 days.
3 Powerful magnets to absorb to vehicle firmly.
4 Real-time tracking, retrieve of lost vehicles, cargo.
5 Movement alarm, Geo-fence alarm, shock sensor alarm, remote monitoring.
6 Support map viewing on mobile phone screen, get absolute address by SMS, GPRS real time tracking on web based server.
7 Built-in high sensitivity GPS and GSM antenna to make it can be used alone without installation, convenient and quick.
8 Support for external GSM antenna, GPS antenna, and external power supply for the tracker to be installed on the device which can provide power for long-term using.
9 Easy for installation;

Content	Specifications
DIM.	94mm60mm38mm
Weight	300g
Network	GPS/GSM/GPRS
Band	850/900/1800/1900Mhz or 900/1800/1900Mhz
GSM/GPRS Module	Simcom340z or Simcom300z
GPS Module	SIRF3 chip
GPS sensitivity	-159dBm
GPS Accuracy	5m
GPS Start time	Cold status	45s
	Hot status	1s
EXT. power	DC 12 V -24V
Operating Current	Sleep Current	4mA±1mA
	GSM operating Current	54mA±3mA
	GPRS Current(data transfer)	60mA±5mA
Battery	3.7V 6000mA/h Polymer battery
Charge current	1.2A±0.2A
Charge time	5h
Standby time	GSM sleep mode	1500h
Storage Temp.	-40°C to +85°C
Operation Temp.	-20°C to +65°C
Humidity	5%--95% non-condensing
