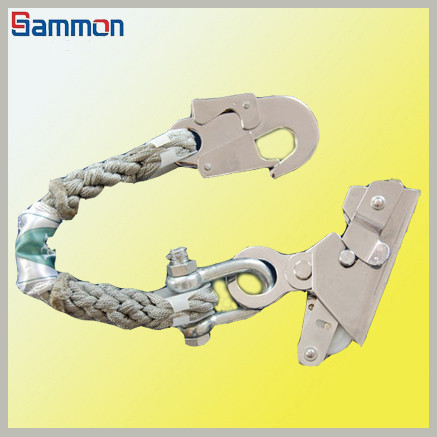

Climbing self-locking device is aerial work personnel climbing up and down the use of the individual against the falling supplies. Can be applied to electric power, petroleum, communication, ship, building, exterior wall coating, cleaning, etc. In the workplaces where high.
Below the self-locking device has been in the human body freedom to follow the body up, down, once the body drop automatically lock up quickly. Open and close the insurance, can rapid loading and unloading. With advanced and reasonable structure, lock up fast, stable, drop distance is shorter, less impact, safety coefficient is higher, it is more convenient to climb up and down, etc.
Method of use:
1, self-locking device of the main line should be set up before equipment truss hoisting according to need; Fixed on both ends of the main line should be vertically, up and down, up and down a joint is strictly forbidden in the same scope of protection; Main line and equipment structure of the flexible spacing should be able to meet the self-locking device use. Before using self-locking device pressure should be the main rope tried to pull, when yank circle, flexible should be locked up, , security and insurance in good condition is verified before use.
2, safety rope and the main rope knot is strictly forbidden, kinky use; Rope hook must be hung on the link of safety belt use; It is forbidden to sharp objects, fire, etchant and charged objects close to or contact self-locking, and the main line. Appear this kind of situation should stop using, and check to, may continue to use, after confirmed to regular inspections self-locking device, require work performance is good; Locking bolts, rivets and so on should be no loose; Shell should be no crack or deformation; Safety rope elongation should be no wear and no deformation; Fixed point up or down without flabby. If discovery is unusual should be dealt with in a timely manner or replacement.
Note:
1, must be correct to choose the main rope, it is forbidden to mix.
2, must be properly installed self-locking device, roller (skip out parts) in the upper.
3, before the installation, please exit insurance screw, according to the opening of the jaw axis direction will ratchet and roller assembly according to counterclockwise to exit. After the main rope, clockwise in the direction shown by the open load. Close the insurance again, turn the screw on (not too tight).
4, after the main rope, self-locking device shall be checked and flexibility, such as declining self-locking device is not flexible, half a tension spring can be adjusted. And try to lock 1 ~ 3 times, in order to ensure normal locking function. If discovery is unusual, it is necessary to stop using; Contact the factory and (in one year period), it is strictly prohibited to loading and unloading repair.
5, use a year later, should wear only 1 ~ 2 larger self-locking device, made free fall 80 kg weight impact test, without exception, this batch of can continue to use for 3 months. Since then, every 3 months should be according to the condition of using experiments. Tested or heavy impact of the product is strictly prohibited.
