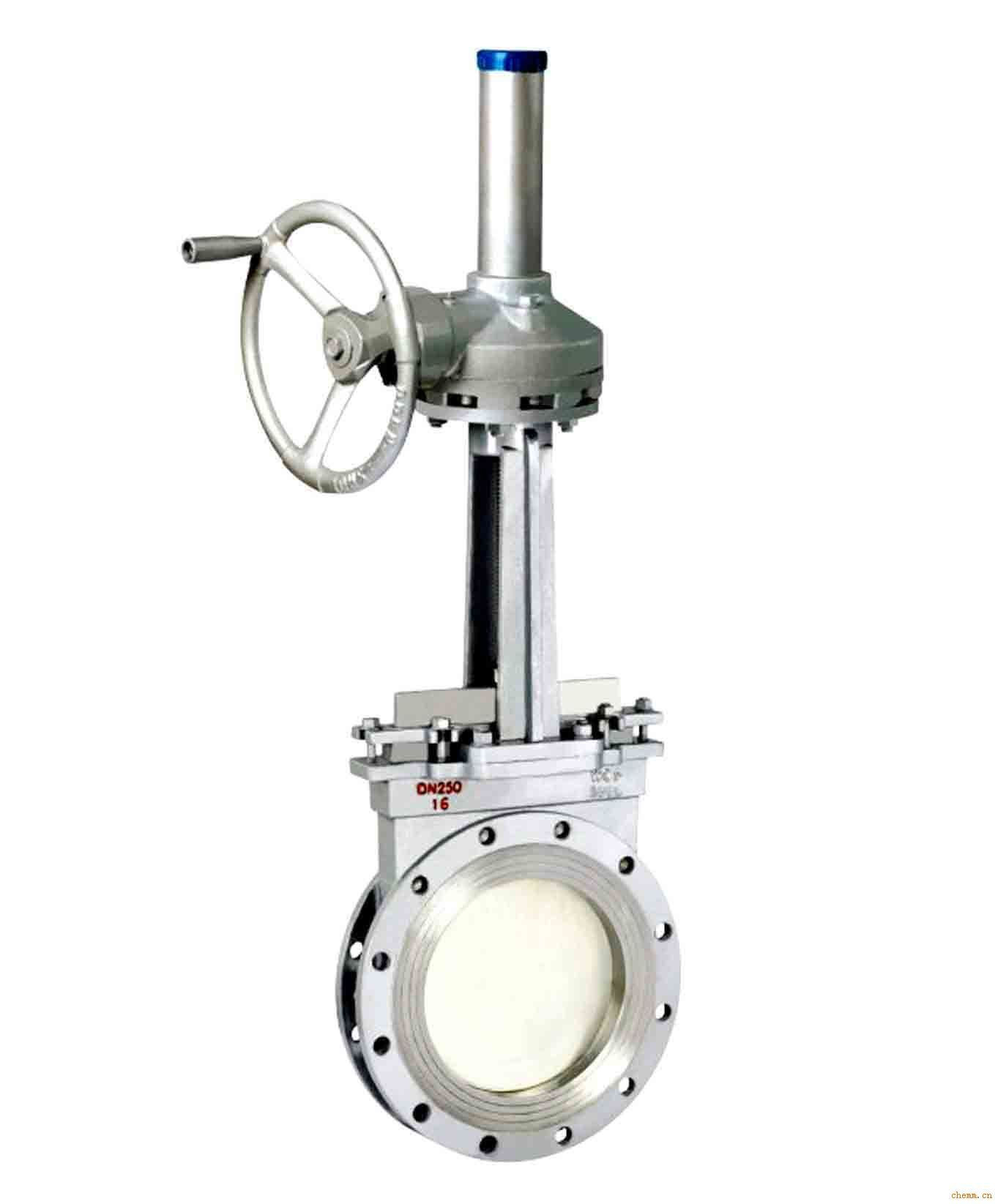

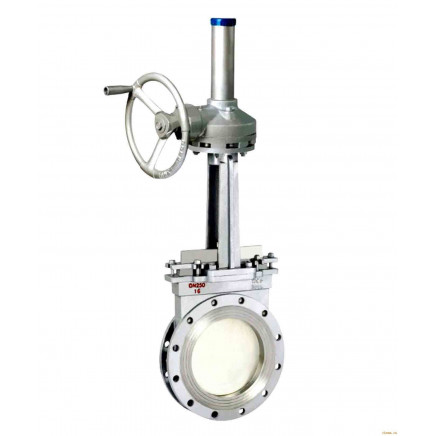

Slurry Knife Gate Valve(bevel gear)
This valve is widely applied to pipelines such as water supply and drainage, construction, oil, chemical industry, coal gas (natural gas), food, medicine, power plant, nuclear power plant and urban pollution discharge etc. for purpose of adjusting or cutting the flow contains various medium, such as thick granule, sticky liquid and floating contamination etc.

Main parts and materials For Slurry Knife Gate Valve(bevel gear)

Valve body	Carbon steel/Stainless steel
Bonnet	Carbon steel/Stainless steel
Disc	Stainless steel
Stem	Stainless steel
Seal ring	Stainless steel/Hard Alloy

Function and Specification of Slurry Knife Gate Valve(bevel gear)

Type	Nominal pressure (MPa)	Testing pressure		Suitable temperature( ºC )	Suitable medium
		Strength(MPa)	Enclose(MPa)
Z73/573W-10C/P	1.0	1.5	1.1	? 120	Paper pulp,coal-slurry,sewage,dust,mixture of water, Ash residue
Z673/973W-10C/P
Z73/573W-16C/P	1.6	2.4	1.8
Z673/973W-16C/P

Manufacturing Process of Slurry Knife Gate Valve(bevel gear)
(01)Mold warehouse-----(02)Wax-----(03)Repair mold line ----(04)Wax polish ----(05) Tuple trees ----(06)Cast molding----(07)Dry-----(08) Dewaxing ----(09)Wax equipment ----(10) Smelting

Outline and connecting measurement of Slurry Knife Gate Valve(bevel gear)

Type	Nominal diameter DN(mm)	Measurement(mm)											Reference weight(KG)
Type	Nominal diameter DN(mm)	L	D	D1	D2	D3	b-f	Z×M	H	H1	H2	D0	Reference weight(KG)
Z73/573W-10C/P Z673/973W-10C/P	50	48	160	125	100			4×M16	285			180	8
	65	48	180	145	120			4×M16	298			180	10
	80	50	195	160	135			4×M16	315			220	12
	100	50	215	180	155			8×M16	365			220	14
	150	57	280	240	210			8×M20	475			280	29
	200	70	335	295	265			8×M20	540			360	38
	250	70	390	350	320			12×M20	630			360	66
	300	76	440	400	368			12×M20	780			400	100
	350	76	500	460	428			16×M20	885			400	119
	400	89	565	515	482			16×M22	990			400	195
	450	89	615	565	532			20×M22	1100			530	285
	500	114	670	620	585			20×M22	1200			530	389
	600	114	780	725	685			20×M27	1450			600	529
Type	Nominal diameter DN(mm)	Measurement(mm)											Reference weight(KG)
Type	Nominal diameter DN(mm)	L	D	D1	D2	D3	b-f	Z×M	H	H1	H2	D0	Reference weight(KG)
Z73/573W-16C/P Z673/973W-16C/P	50	48	165	125	99			4×M16	285			180	8.5
	65	48	185	145	118			4×M16	295			180	10.7
	80	50	200	160	132			8×M15	315			220	13
	100	50	220	180	156			8×M16	365			220	15
	150	57	285	240	211			8×M20	475			280	31
	200	70	340	295	266			12×M20	540			360	40.7
	250	70	405	355	319			12×M24	630			360	70
	300	76	460	410	370			12×M24	780			400	107
	350	76	520	470	429			16×M24	885			400	129
	400	89	580	525	480			16×M27	990			400	215
	450	89	640	585	548			20×M27	1100			530	305
	500	114	715	650	609			20×M30	1200			530	410
	600	114	840	775	720			20×M33	1450			600	550
