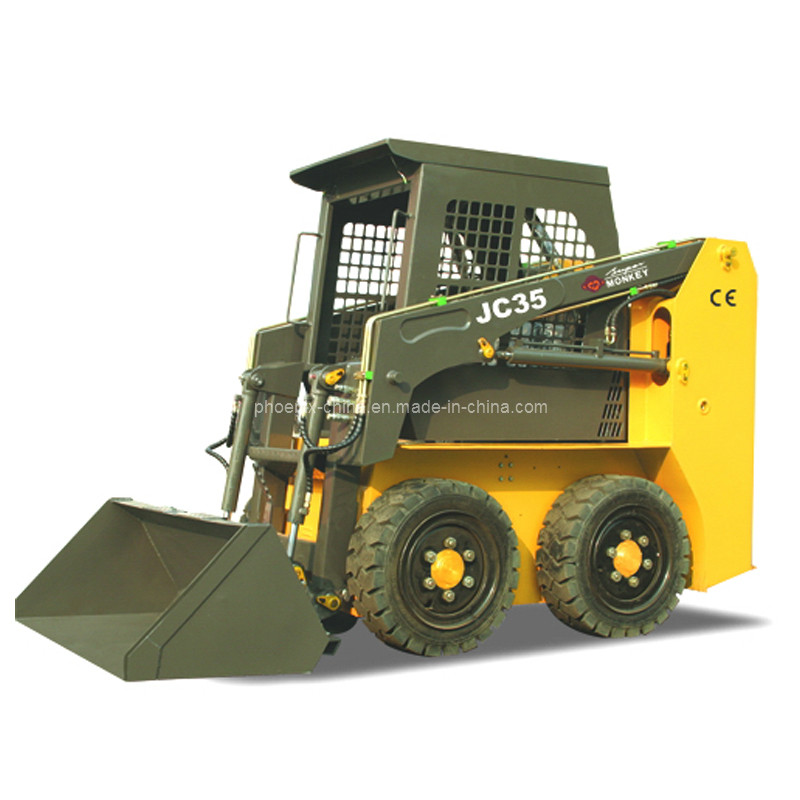

Skid Steer Loader with CE Similar Mini Bobcat with Perkins Engine

More Views

More than 10 available

Availability: In stock

Price:$10000.0 - $15000.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 15000/ Piece
10.0	US $ 10000/ Piece

Trade Terms: FOB, CFR, EXW, CIF

Payment Terms: L/C, T/T, Western Union, Money Gram

Price Valid Time:From Jan 04, 2014 To Mar 31, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Login or Signup to View Links.

Description

Model NO.:JC35

Type:Skid Steer Loader

Walking Mode:Wheeled

Load and Unload Method:Front Discharge

Certification:CE

Condition:New

Rated Load:500kg

Export Markets:Global

Trademark:PHOENIX

Packing:Nude Packing

Standard:CE

Origin:China Mainland

HS Code:84295100

Production Capacity:1000 Units/Month

Engine: Perkins 404D
Bobcat type quick hitch
Italy BP pump
USA white motor
Hydraulic self-leveling system
Mechanical control system

Rated Operating Capacity		500
Tipping load(Kg)		1000
Bucket Capacity(m3)		0.25
Lifting force(kg)		1200
Hydraulic Pump Flow(L/min)		40
Engine power(HP)		35
Weight(Kg)		2200
Max. Travel Speed(km/h)		8
Grade ability (° )		20
Tire		8.5- 15
Fuel hyd. Oil capacity(L)		50/50
Dimensions
A. Height at Maximum Extension	3300mm
B. Hinge Pin Height	2725mm
C. Total Height	2000mm
D. Length with Bucket	2950mm
E. Length without Bucket	2300mm
F. Width with Bucket	1400mm
G. Track Width	1080mm
H. Wheelbase	891mm
J. Ground Clearance	140mm
K. Dumping Angle	40°
L. Dumping Height	2050mm
M. Maximum Reach	790mm
