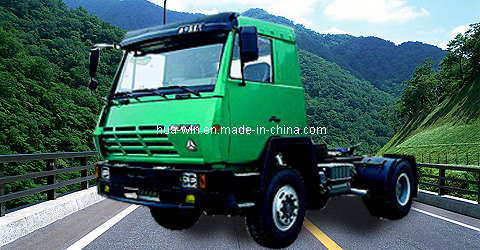

Sinotruk Steyr 4X2 Tractor Truck Heavy Duty off Road Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 30000.0-50000.0/ Piece

Price:$30000.0 - $50000.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Oct 23, 2014 To Jan 23, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:ZZ

Type:Wheel Tractor

Usage:Farm Tractor, Garden Tractor, Lawn Tractor

Certification:ISO9001: 2008

Drive Wheel:4x2

Emission Standard:Euro II

Fuel:Gas / Diesel

Service Life:6-10 Years

Size:Medium

Color:Blue

Condition:New

Export Markets:Global

Additional Info.

Trademark:Steyr

Packing:Nude

Standard:4*2

Origin:China

Production Capacity:200units/Month

Product Description

1. Steyr King Series of heavy duty truck has a complete spectrum which is divided into Euro2 and Euro3.
2. Product range: Semi-trailer towing vehicle, goods vehicle, tipper, concrete mixing carrier and other special truck refitted on its chassis.
3. Driving type: 4x2, 6x2, 6x4, etc...
4. Power range: 266PS - 410PS.

Specifications
1. Good performance, durable and elastic
2. More practical and economic.
3. High quality at reasonable price.

Transmission
SINOTRU Steyr series 10 gears Transmission, Transmission with main and auxiliary transmission structure, main transmission with double counter shaft, auxiliary transmission with planetary reduction.
Suspension
Front and rear leaf spring suspension, front suspensio with shock absorber, transverse stabilizer rear suspension is disconnected type with transverse stabilizer.
Steering system
ZF8098 steering gear, ZF steering oil pump, system pressure 18Mpa
Braking system
Service brake: Dual circuit compressed air brake.
Parking brake(emergency brake): Spring energy, compressed air operating on rear wheels
Auxilary brake: Engine exhaust brake
Option: ABS

Basic information > >
type:	ZZ4187M3817C1C	driving type:	4X2
Wheelbase:	3200+1400mm	Body length:	6.121 m
Body width:	2.496 m	Body height:	2.958 m
Between:	2020,1830/1830mm	The vehicle weight:	8.8 t
[Maximum total quality:	25 t	Traction total quality:	40t
Max speed:	90KM/h	The turning of the smallest diameter:	0M
Note:	The truck didn't fancy dome is, the height is 2958 mm;The truck can also supply house high top cab yet, and the high
Engine > >
Engine type:	SINOTRUK WD615.95	Cylinder number:	6
Cylinder types:	inline	Emissions:	9.726L
Emissions standards:	Euro3	Horse power	290hp
Max output power:	247KW	Torque:	1350N@m
The maximum torque speed:	1100~1600	The rated speed:	2200RPM
cab parameters
Cab type:		A sleeping size:	mm
Must take number:	2 people	Row seat number:	11
Gearbox > >
The gearbox type:	HW20716A	Shift mode:	Hand and manual
Forward gears gear number:	16	The reverse gear number:	4
Chassis > >
Real axle description:	Biaxial and put	Driving axle allowable load:	18000KG
Finally transmission ratio:	3.91	Suspension form:
spring number:	9/12,4/12,4/5,4/-
Tire > >
The tyres number:	10	Tire specifications:	11.00-20
Tank > >
Tank material:		Tank has a capacity:	350L
