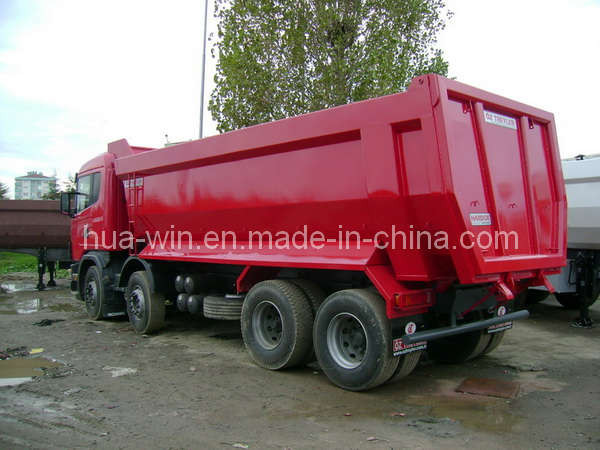

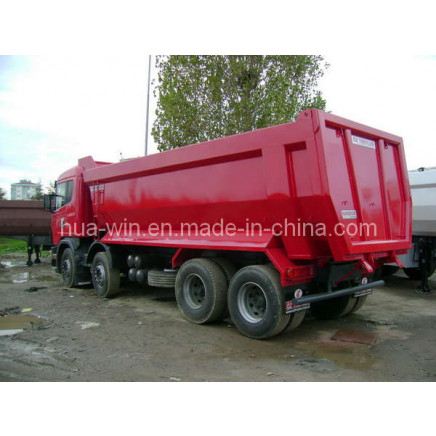

Sinotruk Mineral Dump Truck 8X4 for Sand, Gravel, Coal, Stone, Mineral

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 30000.0-50000.0/ Piece

Price:$30000.0 - $50000.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Sep 29, 2014 To Dec 29, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:ZZ

Transmission Type:Manual

Power:Diesel

Load Capacity:31-40t

Emission Standard:Euro 2

Drive Wheel:8×4

Engine Capacity:?8L

Seats:?5

Horsepower:351-450hp

Tire Type:as Customer?s Requirement

Tire Certification:ISO

Tire Design:Radial

Dumping Type:Front Lifting Style

Condition:New

Truck Type:Dump Truck

Export Markets:Global

Additional Info.

Trademark:HOWO

Packing:Nude

Standard:8*4

Origin:China

Production Capacity:1000

Product Description

Mineral dump truck 8x4 for sand, gravel, coal, stone, mineral.

Good quality with workable price;
Good-sales service with complete type;
Enjoy a good fame for advanced techniques

HOWO 8× 4 Tipper ZZ3317N2861
ModelHOWO 8× 4 Tipper ZZ3317N2861
EngineCNHTC brand, 336hp, 371hp
TransmissionHW15710(19710), 10 forward, 2 reverse
ABSOptional
Steering ZF8098 hydraulic steering with power assistance
Front axleHF9
Rear axleHC16
Cab HW70 standard cab, no berth
Rim/Tires 12.00-20, 12.00R20, 12.00R22.5
Internal Dimensions6500 x2300 x1300mm
Thickness of Carriage Floor: 8mm-16mm, Side: 4mm-10mm
Lift of CarriageFront lift,
Color red, green, white, grey, blue, yellow
Fuel Tank 300L

We supply sinotruk howo truck products:
1. HOWO tractor truck: 4X2, , 6X4, 8X4
2. HOWO dump truck: 4x2, 4x4, 6x4, 6x6, 8x4
3. HOWO concrete mixers: 6x4, 8x4 7-20m³
4. HOWO oil tank truck, water tank truck, trailer
Engine power for all truck: 266hp, 290hp, 336hp, 371hp, 420hp
Our Main Truck Parts:
(1) truck brake parts
(2) truck cabin parts
(3) truck clutch parts
(4) truck engine parts
(5) truck gearbox parts
(6) truck steering parts
(7) truck suspension, axle and chassis parts

Main Specifications
Model		ZZ5507VDNB34400
Dimensions	Dimensions LxHxW (mm)	7760×3000×3425
		7960×3000×3425
	Cargo dimensions LxHxW (mm )	5100×2800×1500
		5300×2800×1500
	Wheelbase (mm )	3400+1400
	Front/rear hanger ( mm )	1500/1460
	Approch/Departure angel	25/32.5
Weight	Gross W.T./Max Loading W.T.	10500/50000
Performance	Max. Driving speed	81
Engine	Model	WD615.69
	Rated power ( kw/r/min )	247/2200
	Fuel comsumption ( g/kw.h )	192
Clutch		GF420J
Gear Box	Model	HW18710
	Raito	14.58 10.94 8.10 6.00 4.38 3.33 2.50 1.85 1.37 1.00 R 15.04 R 3.44
Tire		13.00-20 (14.00-20 )
Electrial system		24 V volt
Fuel tanker		400L
