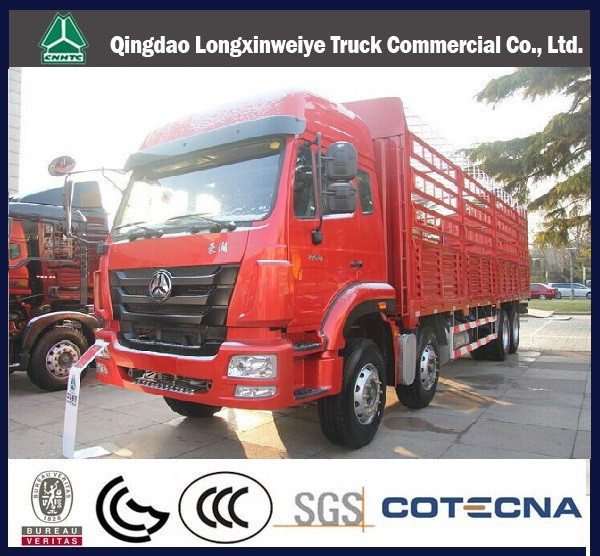

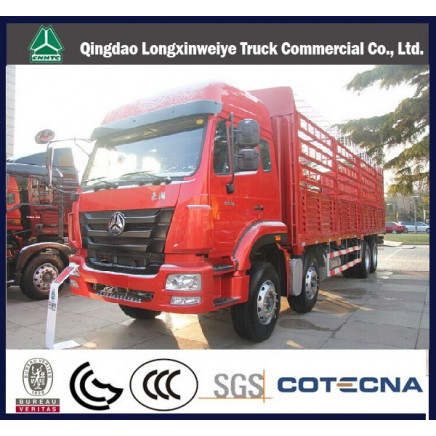

Sinotruk Man Engine J5g 8X4 Cargo Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Piece)	Unit Price
1.0	US $ 30000.0-40000.0/

Price:$30000.0 - $40000.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Feb 12, 2015 To May 04, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:ZZ5315CCYN4663D1

Transmission Type:Manual

Emission Standard:Euro 3

Power:Diesel

Load Capacity:41-50t

Drive Wheel:8×4

Shape:Single Bridge

Seats:?5

Horsepower:251-350hp

Engine Capacity:?8L

Heat Preservation Type:Aluminum Plate

Tire Type:Inner Tube

Tire Design:Radial

Condition:New

Truck Type:Tractor Truck

Export Markets:North America, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia

Additional Info.

Trademark:SNIOTRUK-HOWO 7

Packing:Nude Packing

Origin:Shandong, China

Production Capacity:3000units/Year

Product Description

Sinotruk Man engine J5G 8X4 Cargo Truck

Haohan J5G product is collected Mercedes sinotruk group technology (NG85 third generation bridge), the German Man technology (engine and chassis) and sinotruk their own technological advantage, combining with the characteristics of the market popular models and launching new products.

1. Cargo truck
2. CCC&ISO certificate
3. Competitive price
4. Best after sale service
5. Body dimensions: 5400*2300*1500mm

Our factory was established in 1956, which located in the port city of Qingdao, China. We are a professional company engaged in truck, machinery, spare parts sales and service.

We deal with SINOTRUK HOWO, HOWO A7, SITRAK, STY, HOHAN brand series
trucks, including Tractor trucks, Dump trucks, Garbage trucks, Cargo trucks, Concrete
mixer trucks, Water/Oil tank trucks, Excavator, Sprinkling trucks, Log carrier Trucks, Crane Trucks, Concrete Pump Trucks, some other special trucks, Semi-trailers and so on.

Model	ZZ5315CCYN4663D1
Type	Van cargo truck
Driving type	8x4
Wheelbase	1800+4600+1350mm
Length(mm)	11995
Width(mm)	2496
Height(mm)	3520
Wheel track(mm)	2022/1830
Kerb weight(kg)	12200kg
Rated loading capacity(kg)	18670kg
Total weight(kg)	31000kg
Cargo length(mm)	9600
Weight(mm)	2400
Height(mm)	800
Engine model	Man Mac7.31-40
No of cylinder	6
Fuel	Diesel
Displacement	6870ml
Emission	Euro IV
Max output	228kw
Max horse power	310hp
Torque	1230N.m
Max torque	1200-1800RPM
Rated torque	2300rpm
Engine type	Inline six-cylinder, water-cooled, four-stroke, turbocharged inter-cooled, high pressure common rail
Transmission	HW13710CL
Tires	12.00R22.5 Tubeless
Oil tank	350L
Front axles	153
Driving axle	MCY13Q
