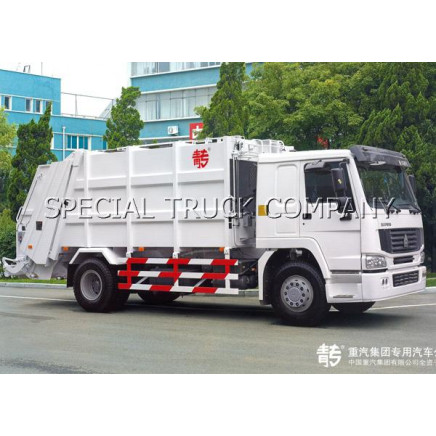

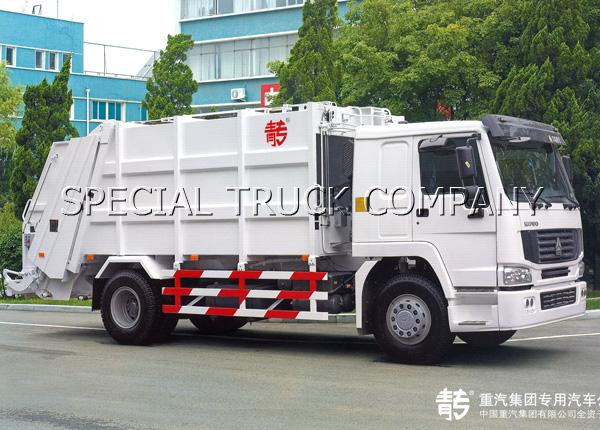

Sinotruk HOWO Rear Garbage Truck 2 Axle

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (unit)	Unit Price
1.0	US $ 60000.0-70000.0/

Price:$60000.0 - $70000.0 / unit

Trade Terms: FOB, CFR, CIF, DDP, DAP

Payment Terms: L/C, T/T

Price Valid Time:From Nov 10, 2014 To Feb 10, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:QDZ5160HW

Type:Rear Loader

Certification:ISO9000, CCC

Volume:?15000L

Emission Standard:Euro 2

Transmission Type:Manual

Payload:20T

Fuel:Diesel

Drive Wheel:4з2

Condition:New

Color:Optional

Export Markets:Global

Product Description

Technical Advantages and Features of Compressed Refuse Truck:
1) The materials of upper parts fundamentally guarantee the performance and service life.
2) The accurate track and MC nylon slider of filler form the most advanced kinematic pair of sliding plate.
3) Hydraulic system is equipped with dual pumps and dual circuits (popular in Europe) to improve the energy efficiency.
4) The truck is controlled both manually and electronically, which is the best program for controlling compressed trucks in China.
5) The key hydraulic elements are imported, with advanced functions and reliable quality.
6) The sealing system is a hydraulic auto-locking and sealing mechanism, which completely solves the problem of sewage drops.
7) The filled waste is compressed in both directions, which expands the actual load capacity.
8) The truck is equipped with a multifunctional mechanical arm, 2 tiltable 240L double-square barrels, 2 rubbish bins of 1100L and 800L respectively.

MAIN SPECIFICATIONS
Model	ZZ1167M4611W	Gross Vehicle Weight	16000kg
Engine	Brand SINOTRUK	Dead Weight	9650kg
	WD615.62 EURO(II)	Tyres	12.00R20
Maximum Output	266HP	Cab	HW76

Rated engine power (KW/r/min)	196/2200	Lifting time of filler (s)	8 to 10
Transmission	HW15710	Pressure of fluid system (Mpa)	20
Front Axle	HF7	Time of one filling cycle(s)	?25
Rear Axle	ST16	Max compression force (kg)	>35000
Steering	ZF8098	Time of discharge (s)	?40
Overall Dimension(mm)		8865x2500x3290
